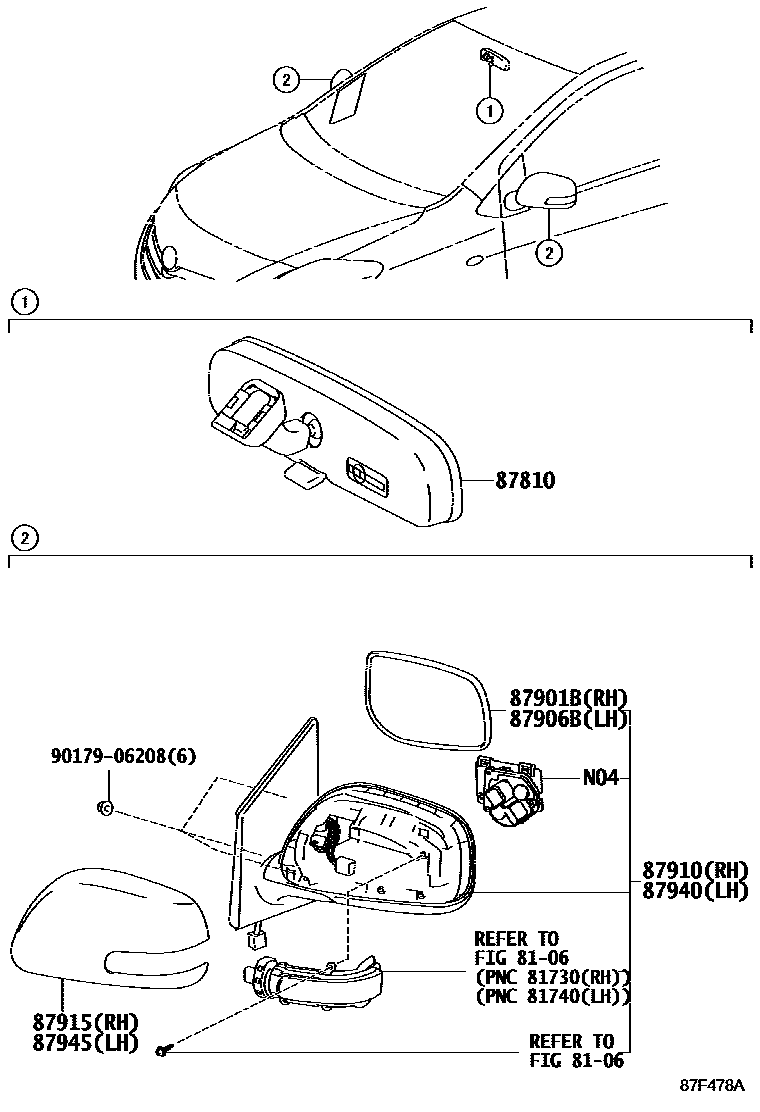

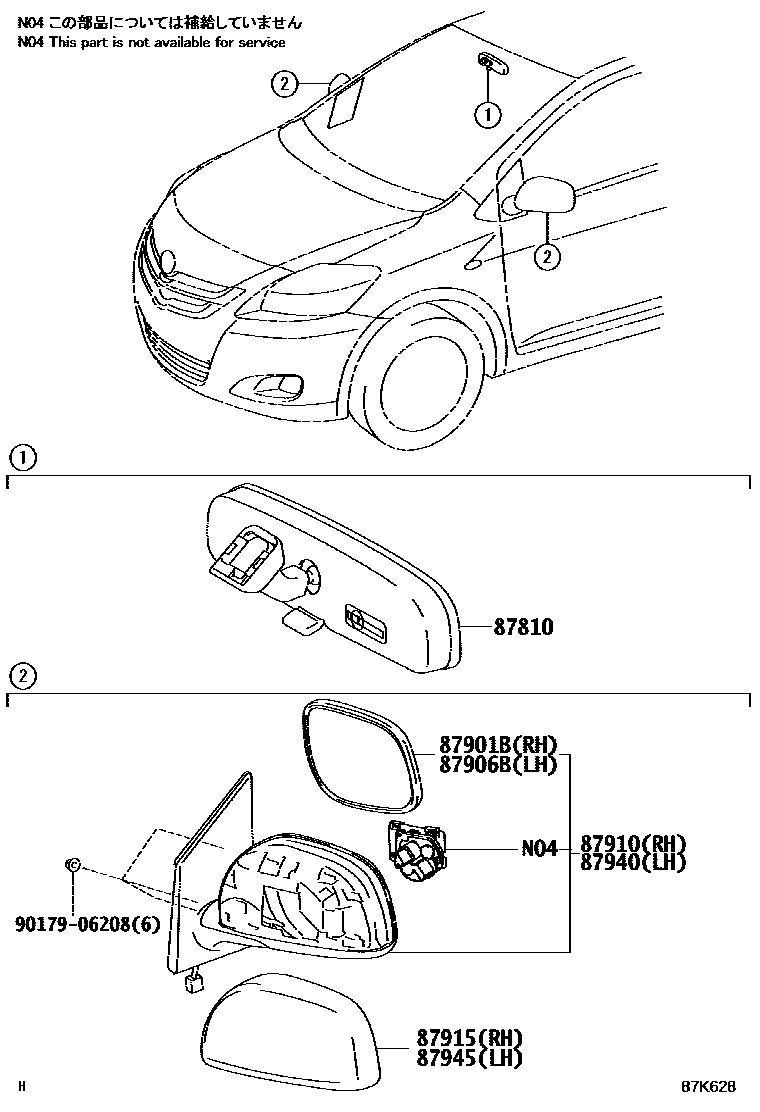

Toyota YARIS 后视镜 — Figure 8701
Toyota YARIS EPC diagram 8701, 后视镜, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-52040 · 87810-52041 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-52640 · 87931-52710 · 87931-52A00 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-52620 · 87961-52690 · 87961-52880 |
| 87910 | Right exterior rearview mirror assembly | 87910-52770 · 87910-52810 · 87910-52820 · 87910-52830 · 87910-52840 · 87910-52850 · 87910-52A80 · 87910-52E40 |
| 87915 | Right exterior rearview mirror cover | 87915-52030 |
| 87940 | Left exterior rearview mirror assembly | 87940-52750 · 87940-52790 · 87940-52800 · 87940-52810 · 87940-52820 · 87940-52830 · 87940-52A60 · 87940-52E20 |
| 87945 | Left exterior rearview mirror cap | 87945-52050 |
