Toyota YARIS antenna — Figure 8604

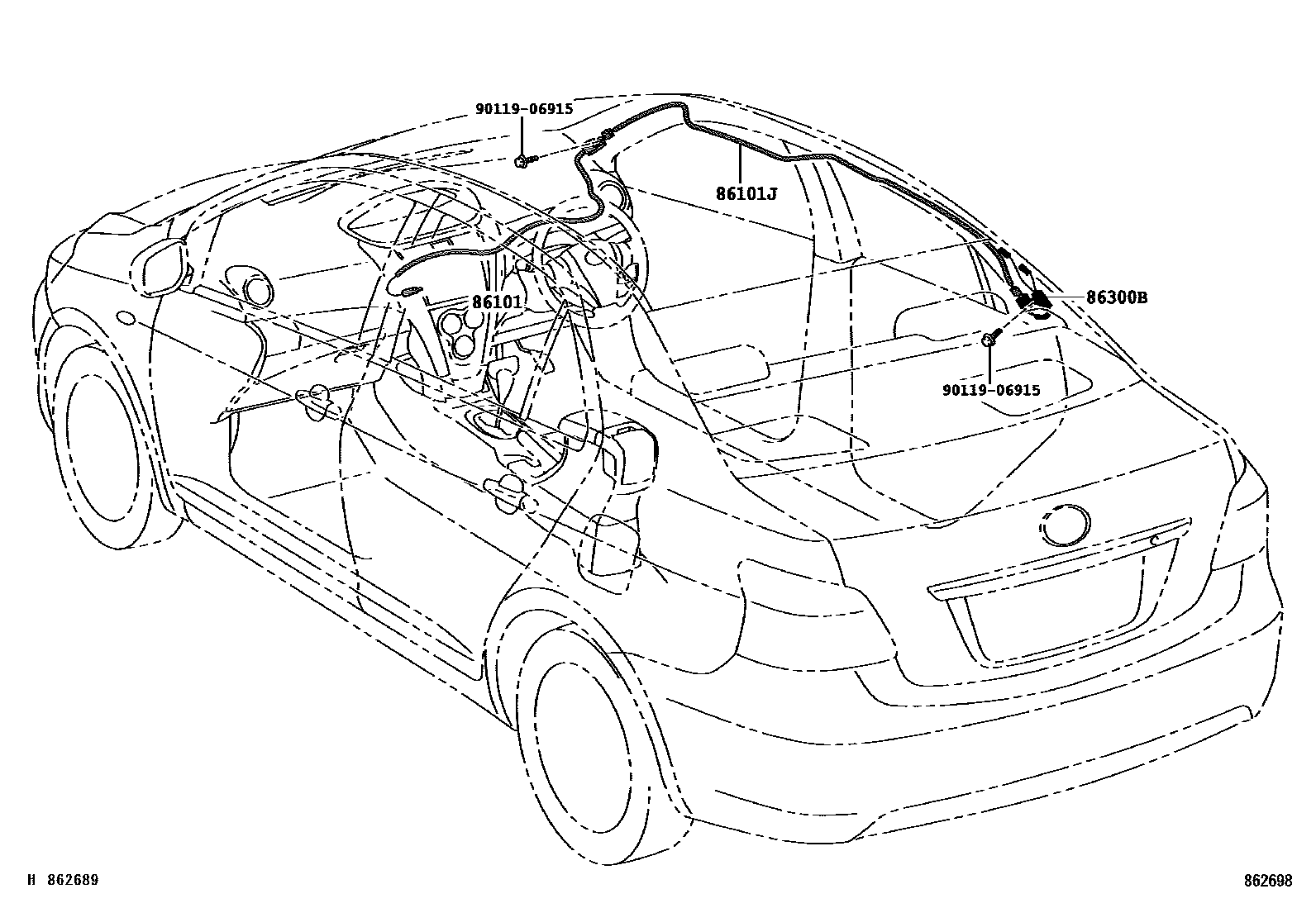

Toyota YARIS EPC diagram 8604, antenna, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-52580 · 86101-52600 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-52590 |
| 86300B | No. 1 amplifier antenna assembly | 86300-52340 · 86300-52350 |
