Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601
Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

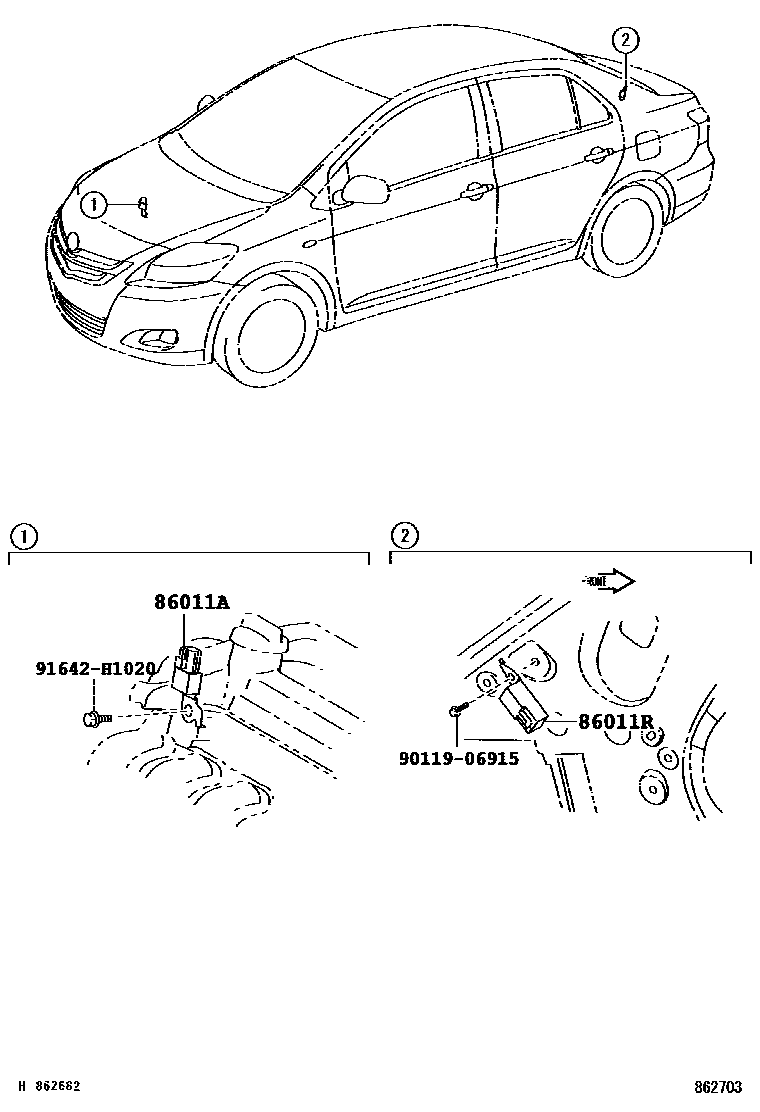

| 86011A | radio settings phase modulator | 90980-04141 |
| 86011R | radio settings phase modulator | 90980-04193 |

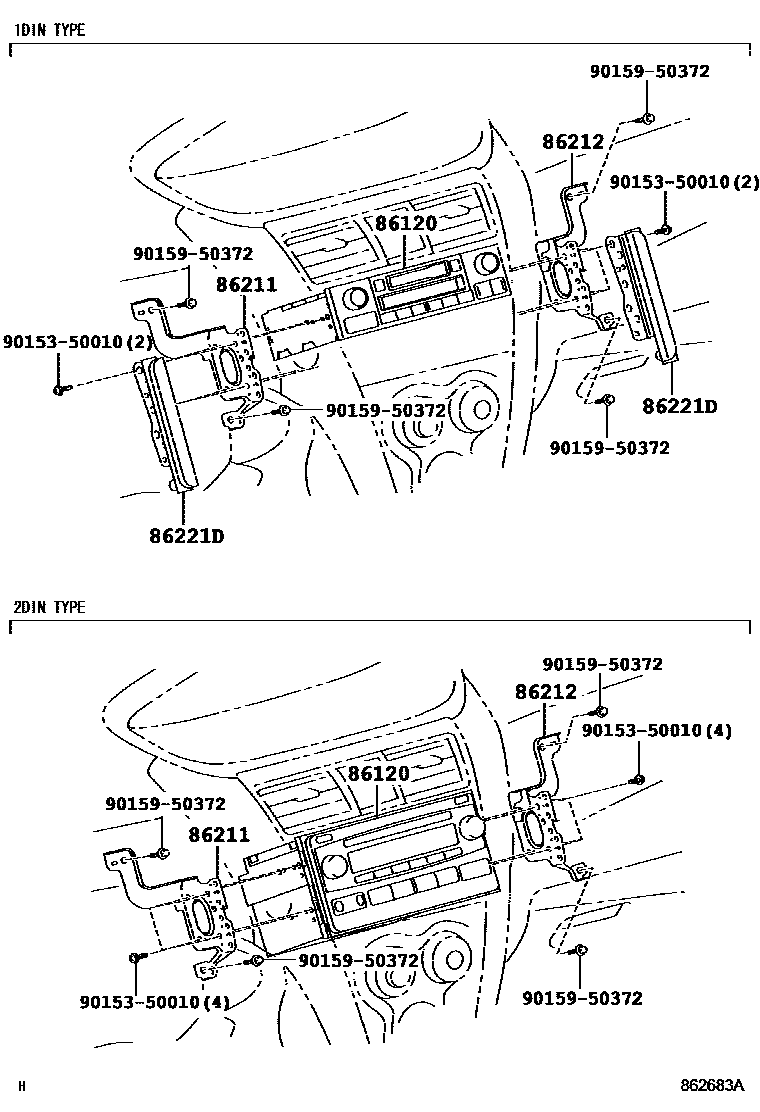

| 86120 | Radio assembly | 86120-52560 · 86120-52660 · 86120-52670 · 86120-52680 · 86120-52700 · 86120-52A70 |

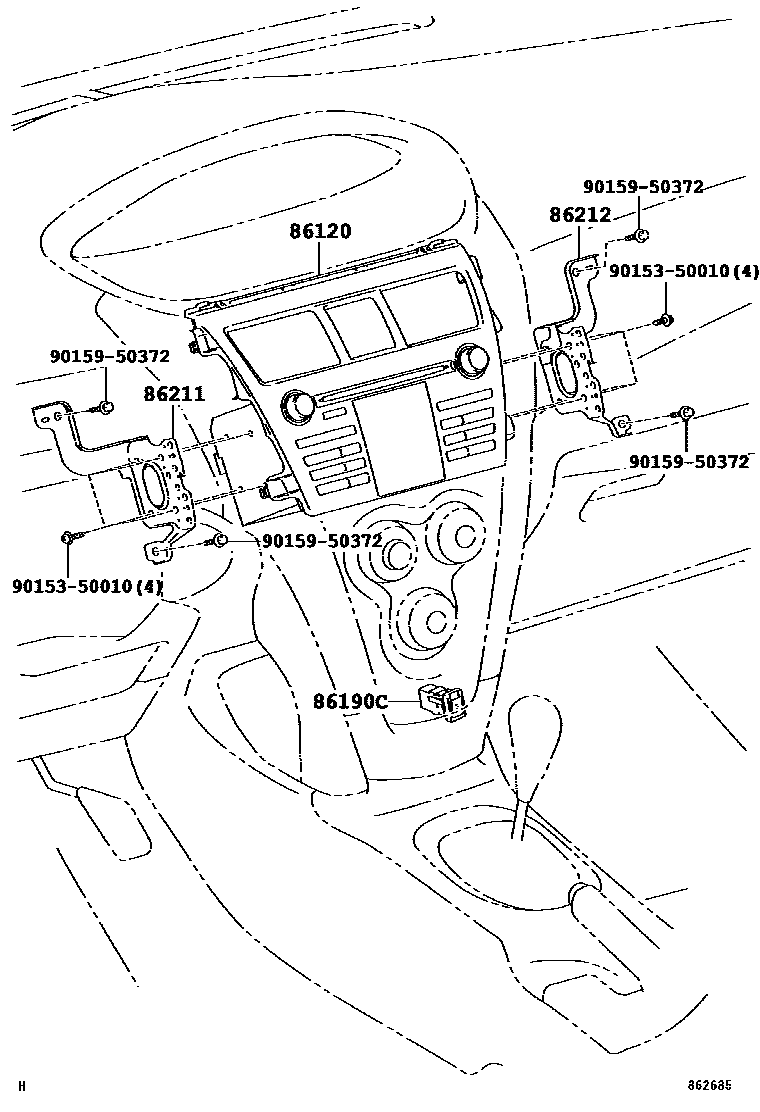

| 86190C | Stereo socket connector assembly No. 1 | 86190-48010 |
| 86211 | No. 1 radio bracket | 86211-52210 · 86211-52220 |
| 86212 | No. 2 radio bracket | 86212-52220 · 86212-52230 |
| 86221D | radio panel | 86221-52050 · 86221-52060 |
