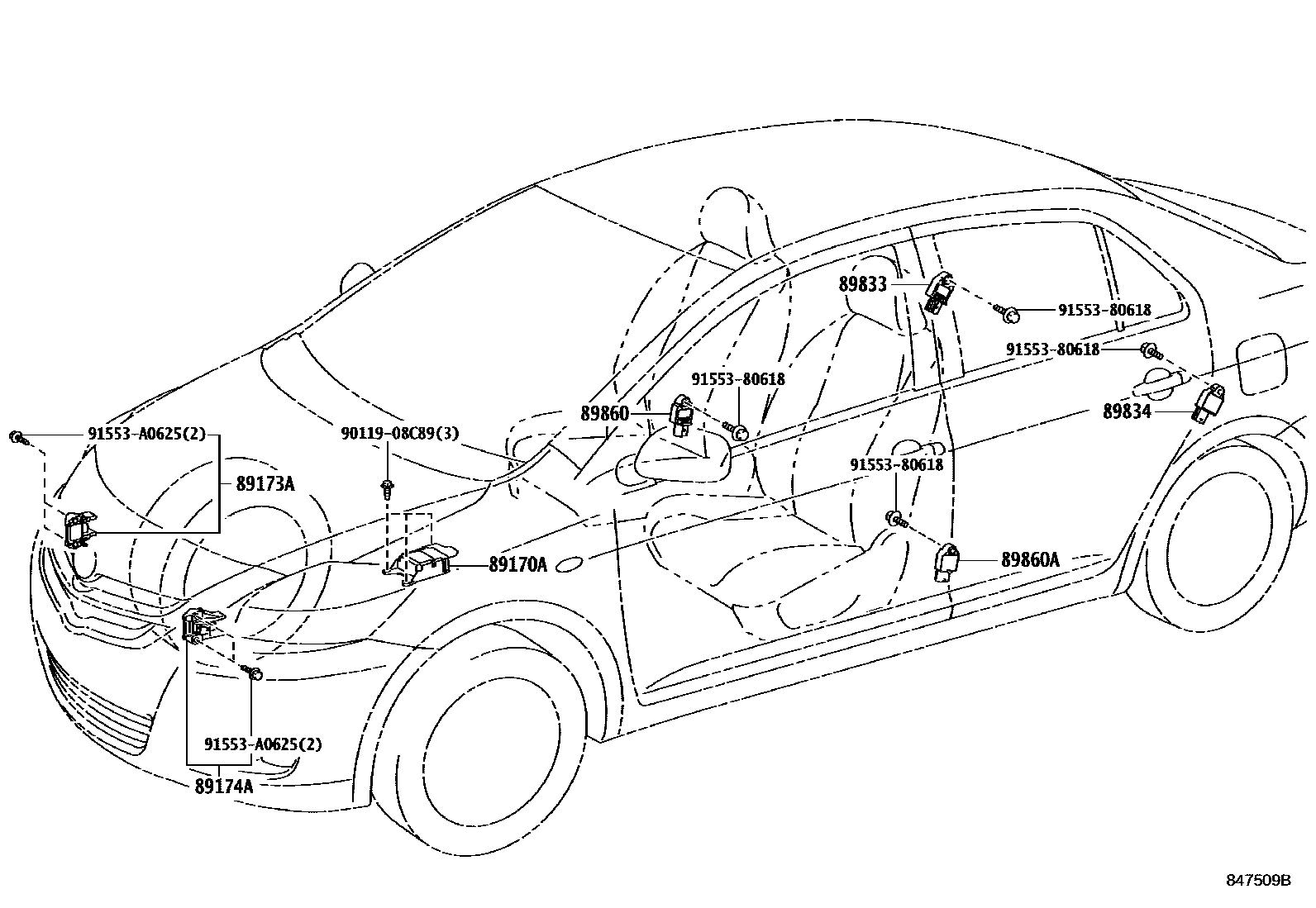

Toyota YARIS 空气囊 — Figure 8421
Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-52750 · 89170-52760 · 89170-52820 · 89170-52A90 · 89170-52D50 · 89170-52D60 · 89170-52D90 · 89170-52E20 |
| 89173A | Right front air bag sensor | 89173-09270 · 89173-29245 · 89173-39375 |
| 89174A | Left front air bag sensor | 89173-09270 · 89173-29245 · 89173-39375 |
| 89833 | Right rear air bag sensor | 89831-0W040 · 89831-22020 · 89831-33020 |
| 89834 | Left rear air bag sensor | 89831-0W040 · 89831-22020 · 89831-33020 |
| 89860 | Right side airbag sensor assembly | 89831-0H010 · 89831-22010 · 89831-28020 |
| 89860A | Left side air bag sensor assembly | 89831-0H010 · 89831-22010 · 89831-28020 |
