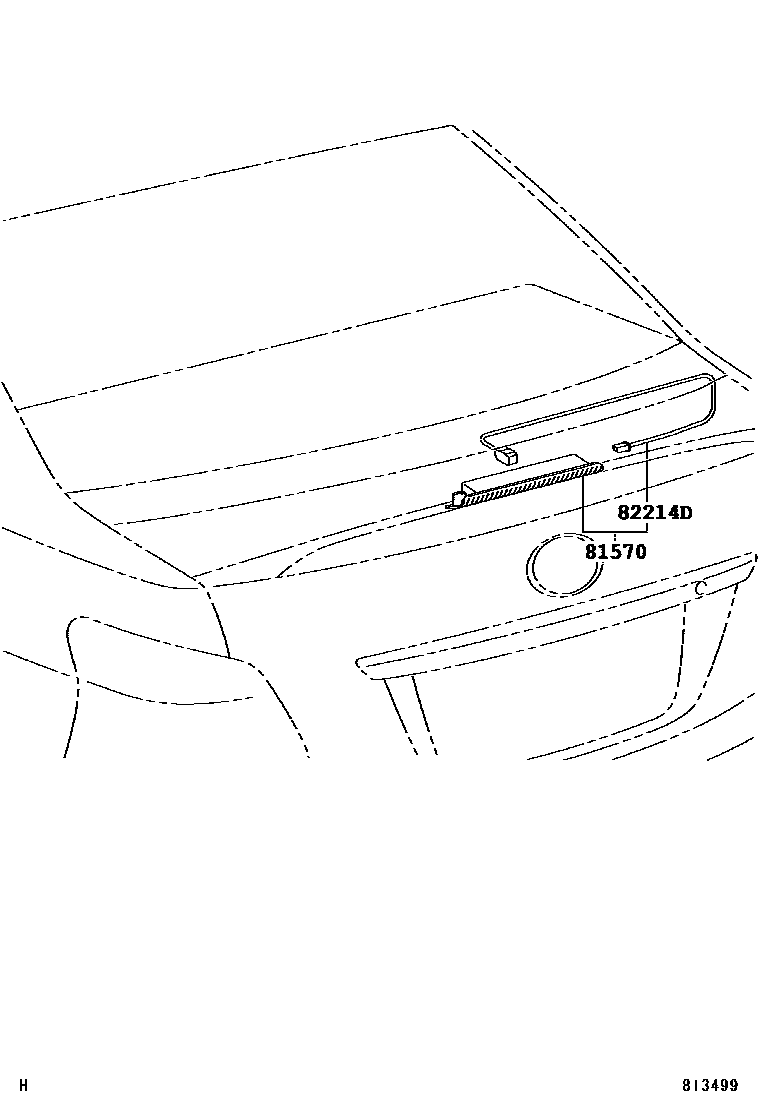

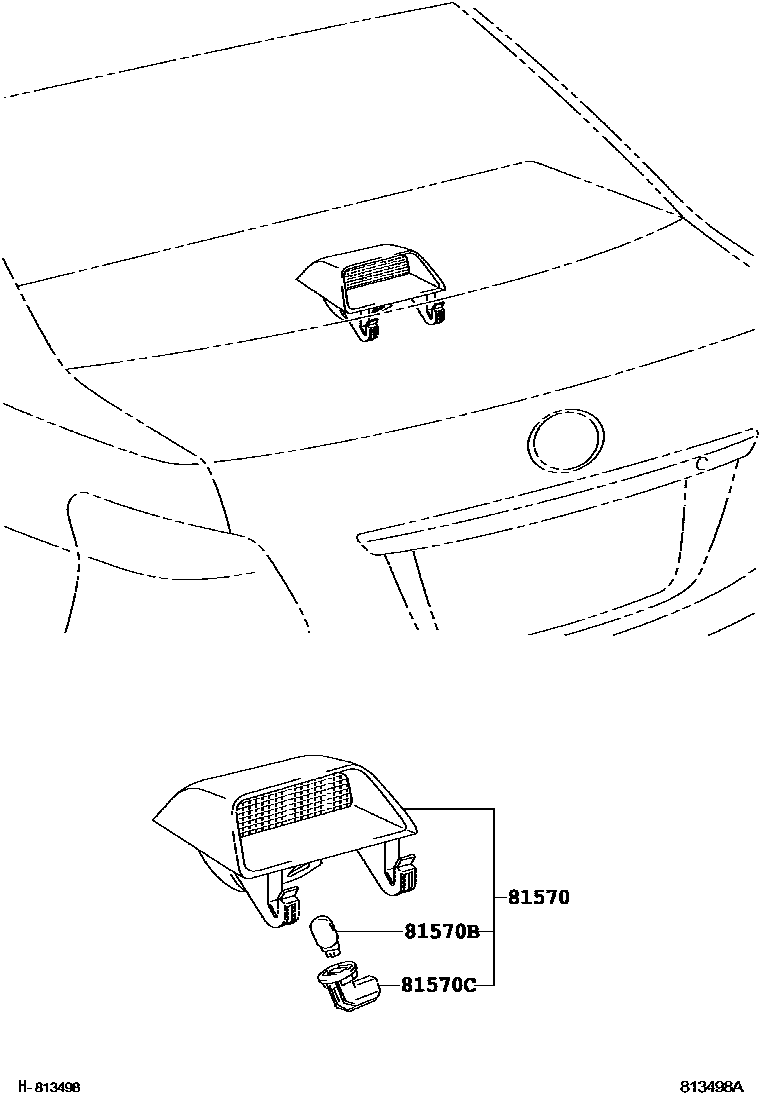

Toyota YARIS 高位刹车灯 — Figure 8117
Toyota YARIS EPC diagram 8117, 高位刹车灯, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81580-52190 |
| 81570B | Bulb (for center brake light) | 90981-11059 |
| 81570C | Central brake light lamp holder | 90075-99005 |
| 82214D | Central brake light wiring harness | 82214-52070 |
