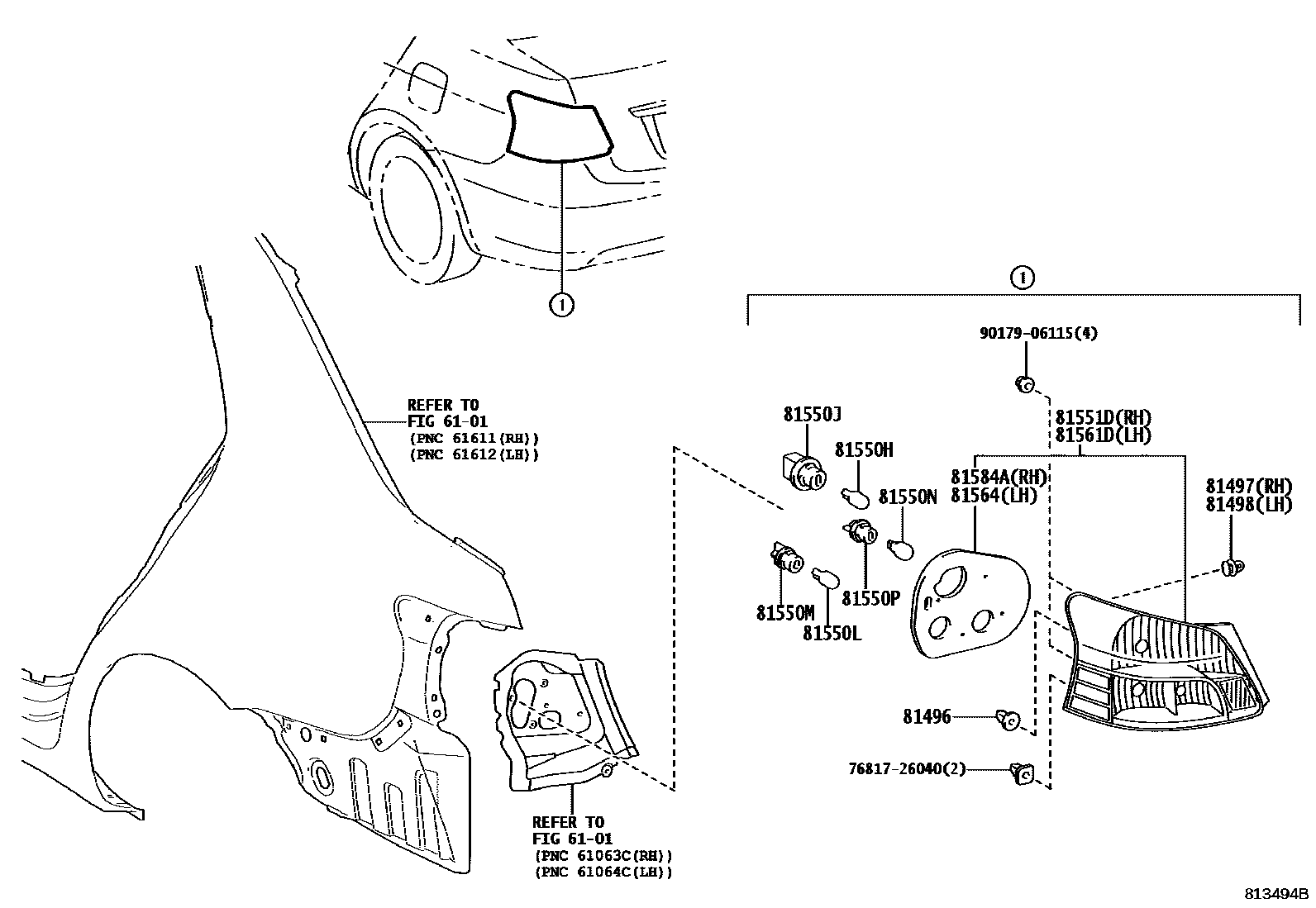

Toyota YARIS 后组合灯 — Figure 8111
Toyota YARIS EPC diagram 8111, 后组合灯, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-52030 |
| 81498 | Left rear combination lamp cover | 81498-52030 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550J | Tail and brake light holders | 90075-60017 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60027 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-60035 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-52610 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-52560 |
| 81564 | Left rear combination lamp body gasket | 81562-52560 |
| 81584A | Right rear light gasket | 81552-52610 |
