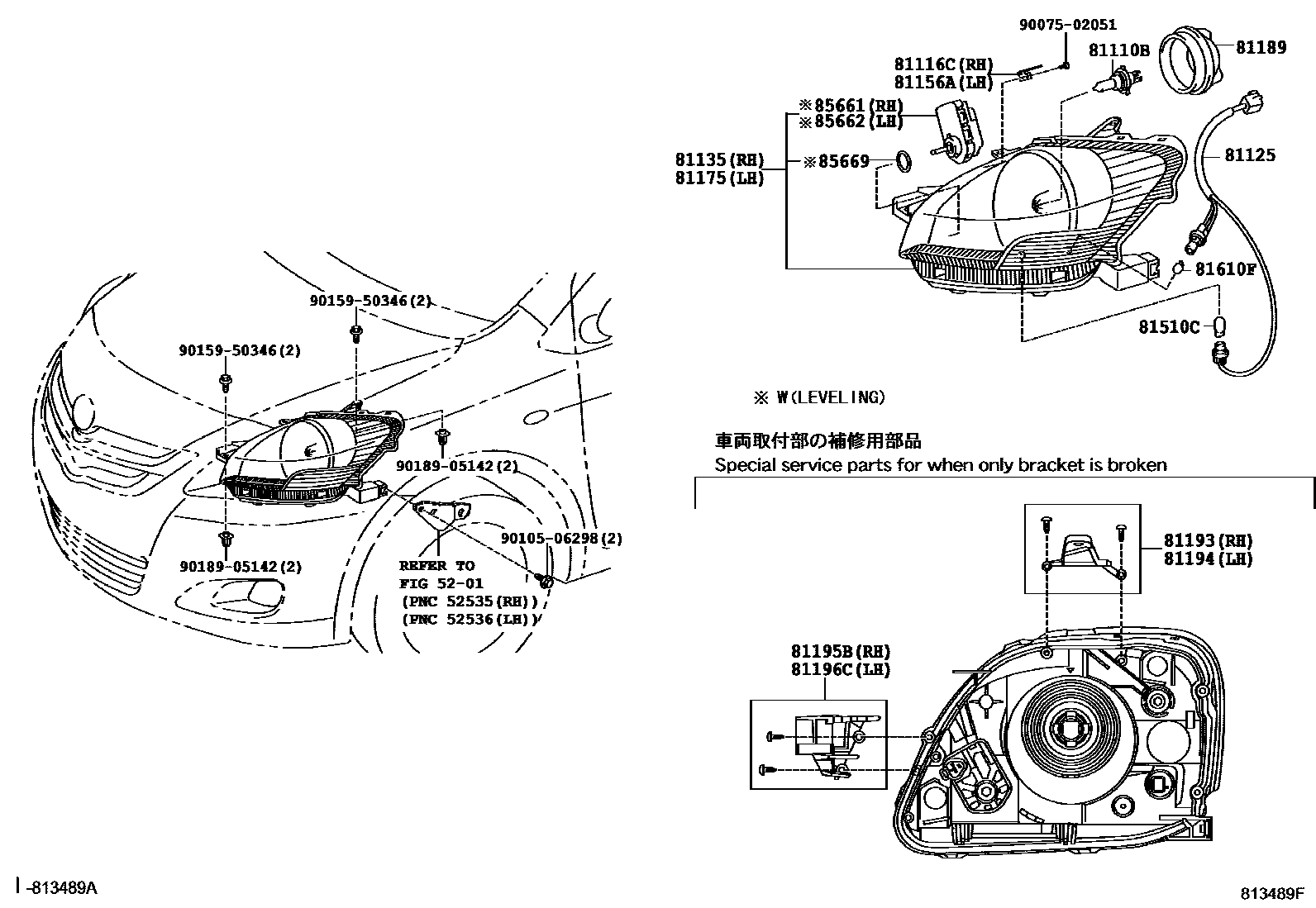

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90981-13058 |
| 81116C | Right headlight bracket | 81116-52730 |
| 81125 | headlight wire | 81125-52730 |
| 81135 | Right headlight assembly assembly | 81130-52760 · 81130-52770 · 81130-52780 · 81130-52790 |
| 81156A | Left headlight bracket | 81116-52730 |
| 81175 | Left headlight assembly assembly | 81170-52750 · 81170-52760 · 81170-52770 · 81170-52780 |
| 81189 | headlight cover | 90075-65002 |
| 81193 | Right headlight upper protective ring | 81193-52120 |
| 81194 | Left headlight upper protective ring | 81194-52120 |
| 81195B | Right headlight lower right protection piece | 81195-52080 |
| 81196C | Left headlight lower left protection piece | 81196-52080 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
