Toyota YARIS 挡泥板和扰流板 — Figure 7601

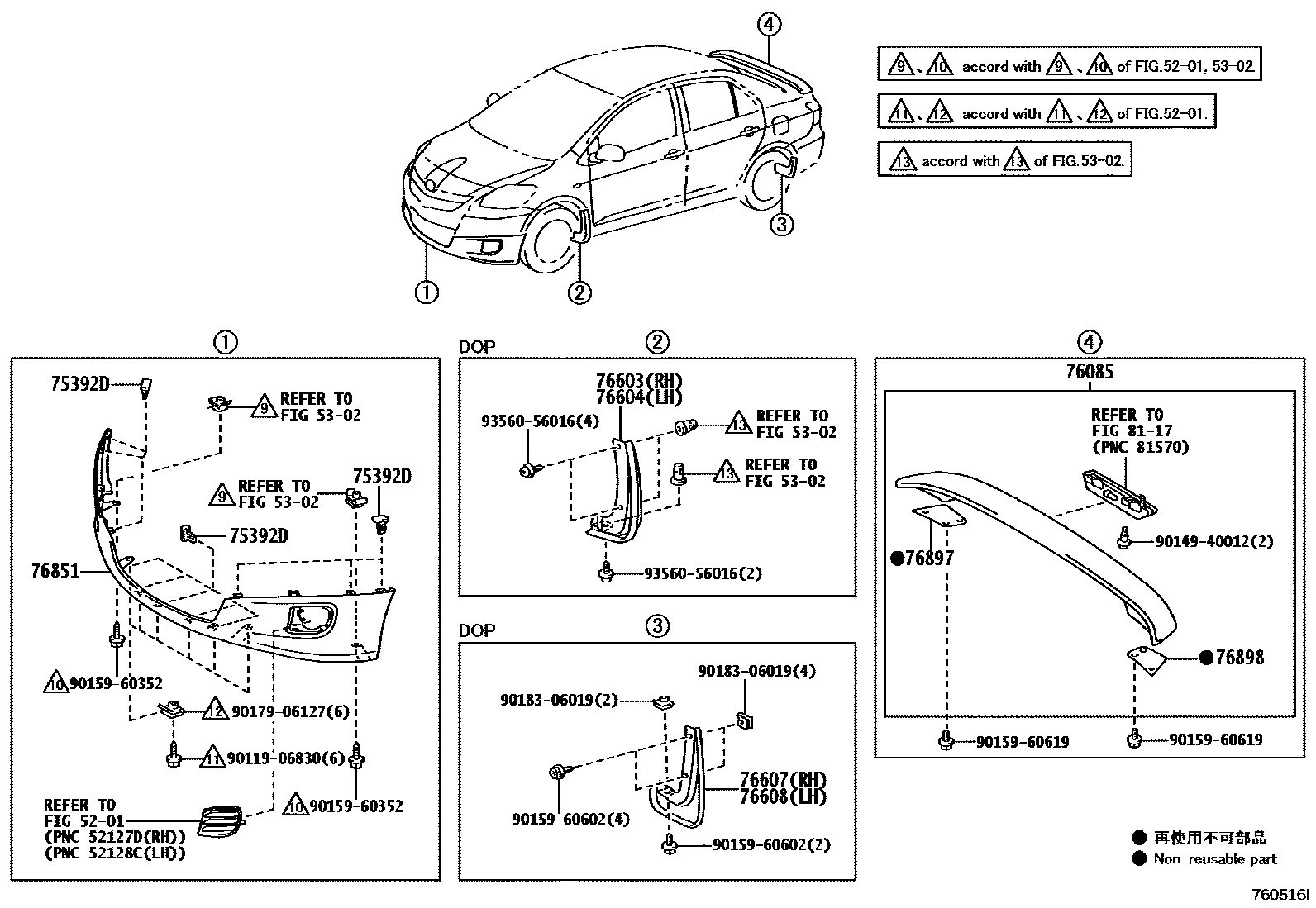

Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75392D | External protective strip fixings | 75392-35200 |
| 76603 | Right front fender fender sub-assembly | 76621-52090 |
| 76604 | Left front fender fender sub-assembly | 76622-52090 |
| 76607 | Right rear side fender sub-assembly | 76625-52150 |
| 76608 | Left rear side fender sub-assembly | 76626-52150 |
| 76897 | Right rear spoiler protection strip | 76897-52040 |
| 76898 | Left rear spoiler protection strip | 76898-52040 |
