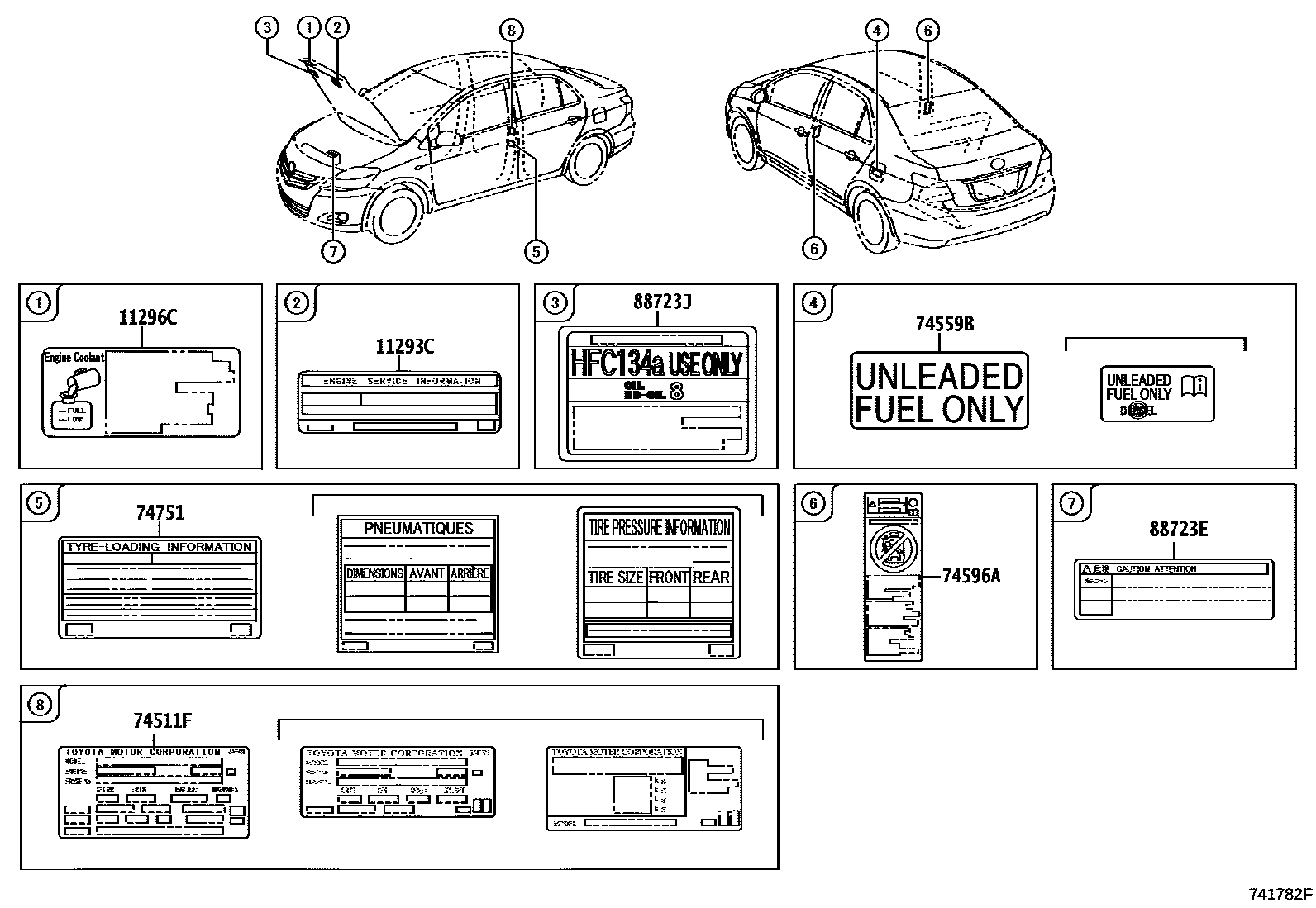

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11293C | Adjust specification information label | 11293-21040 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 69339C | Child Restraint Information Label | 69339-12010 · 69339-33040 |
| 73794 | Rear seat belt caution label | 73794-33010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-48020 · 74511-48030 · 74514-52010 |
| 74559B | fuel information label | 74559-14050 · 74559-20140 |
| 74596A | Side air bag warning label | 74596-30030 · 74596-53010 · 74596-53011 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-52570 · 42661-52620 · 42661-52630 · 42661-52640 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-20081 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-28220 |
