Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

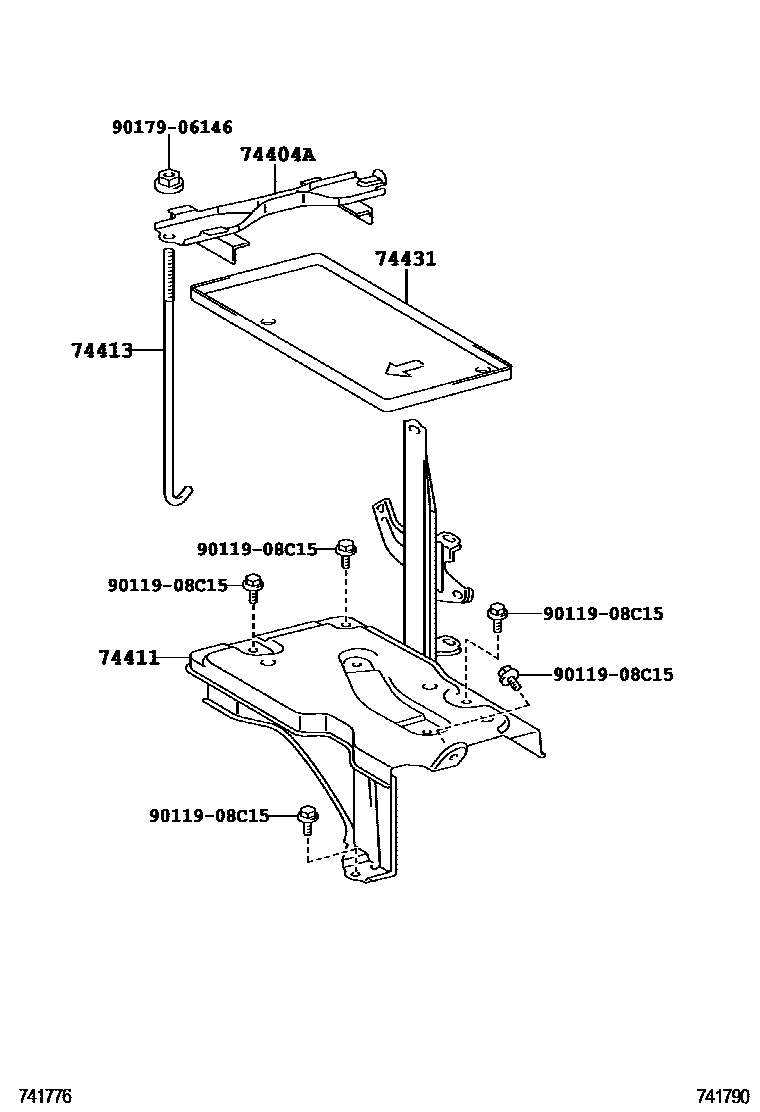

Toyota YARIS battery holder EPC diagram — 741790
battery holder — 741790 (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-52040
74411battery holder74410-52010 · 74410-52011 · 74410-52020
74413Battery clamp bolt74451-52070 · 74451-52071
74431battery tray74431-52100 · 74431-52101
