Toyota YARIS 扶手和遮阳板 — Figure 7401

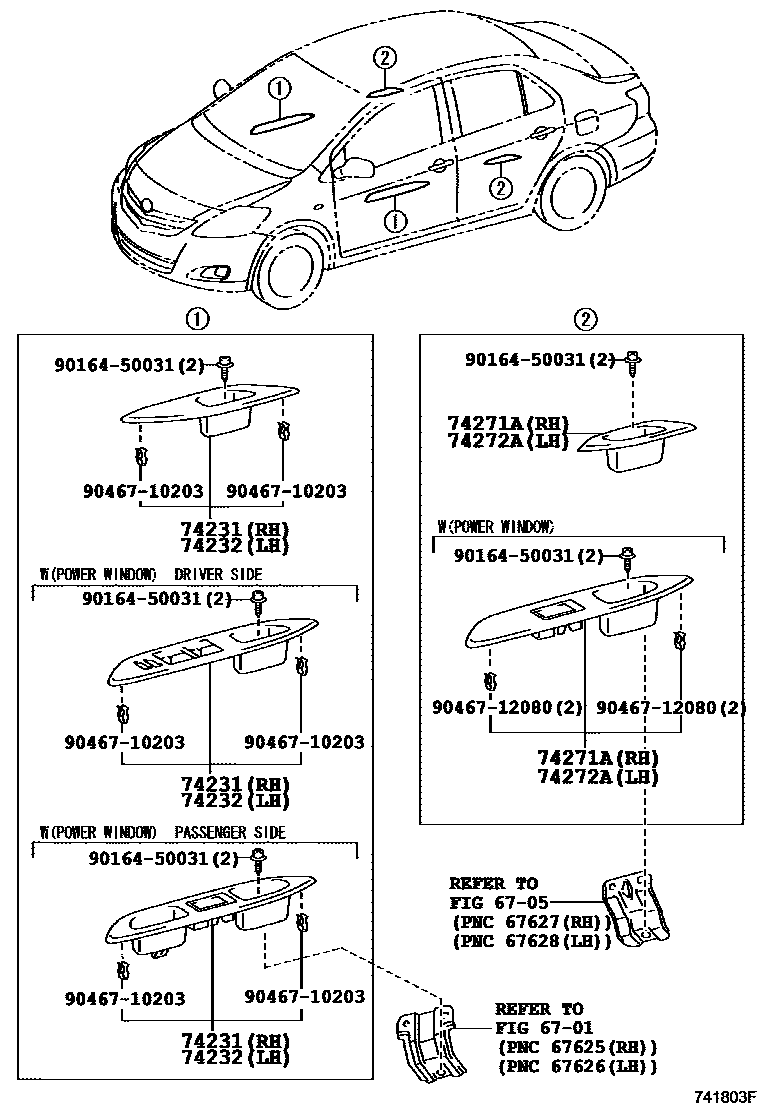

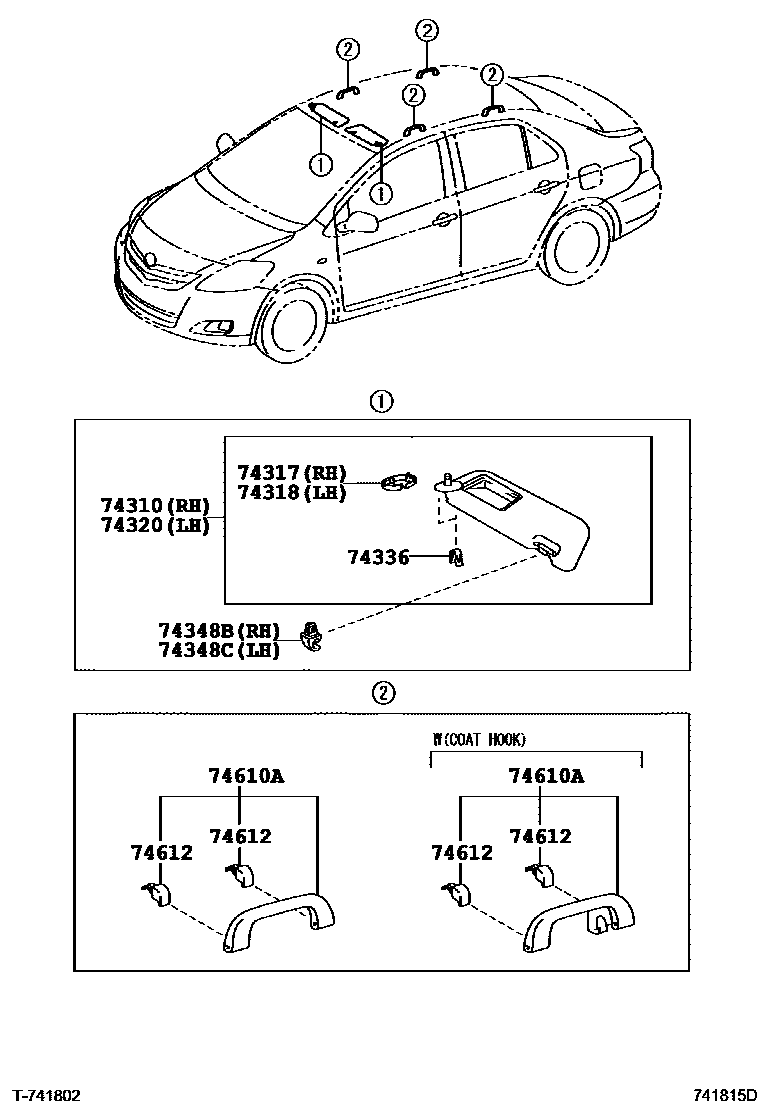

Toyota YARIS EPC diagram 7401, 扶手和遮阳板, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-52500 · 74231-52510 · 74231-52520 |
| 74232 | Left front armrest upper panel | 74232-52400 · 74232-52410 · 74232-52420 |
| 74271A | Right rear door armrest upper panel | 74271-52130 · 74271-52190 |
| 74272A | Left rear door armrest upper panel | 74272-52120 · 74272-52180 |
| 74336 | Sun visor arm fixing clip | 74336-52010 |
