Toyota YARIS 安全带和儿童保护座椅 — Figure 7104

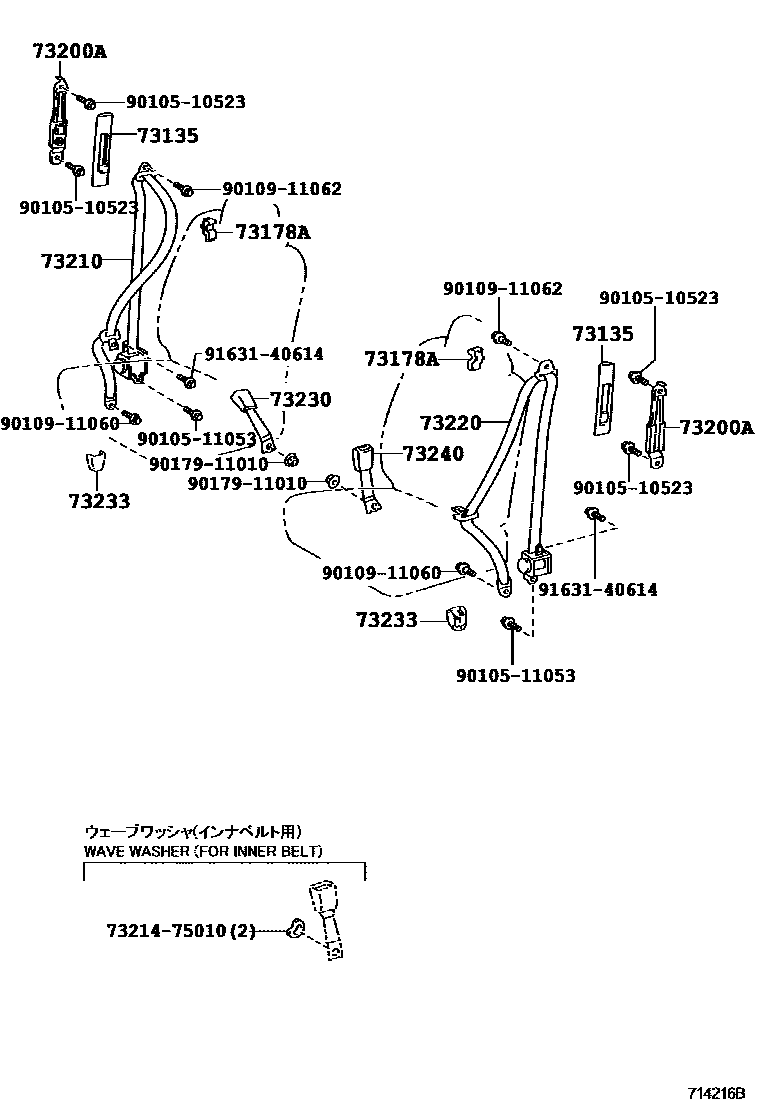

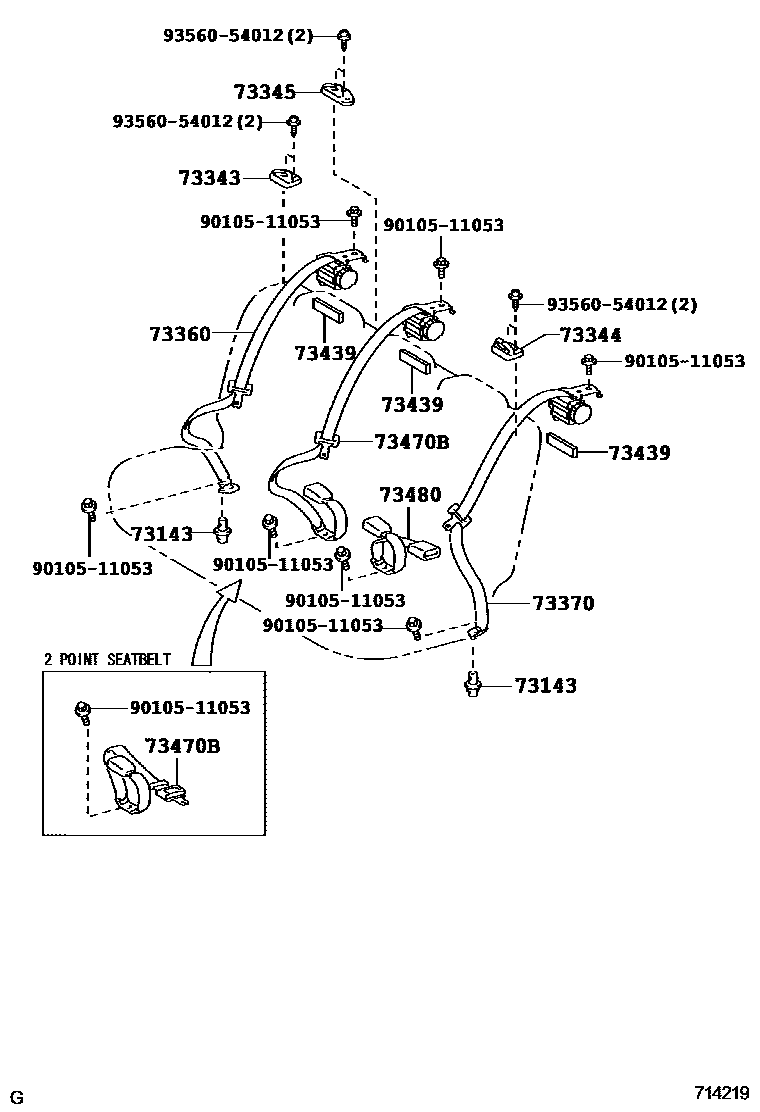

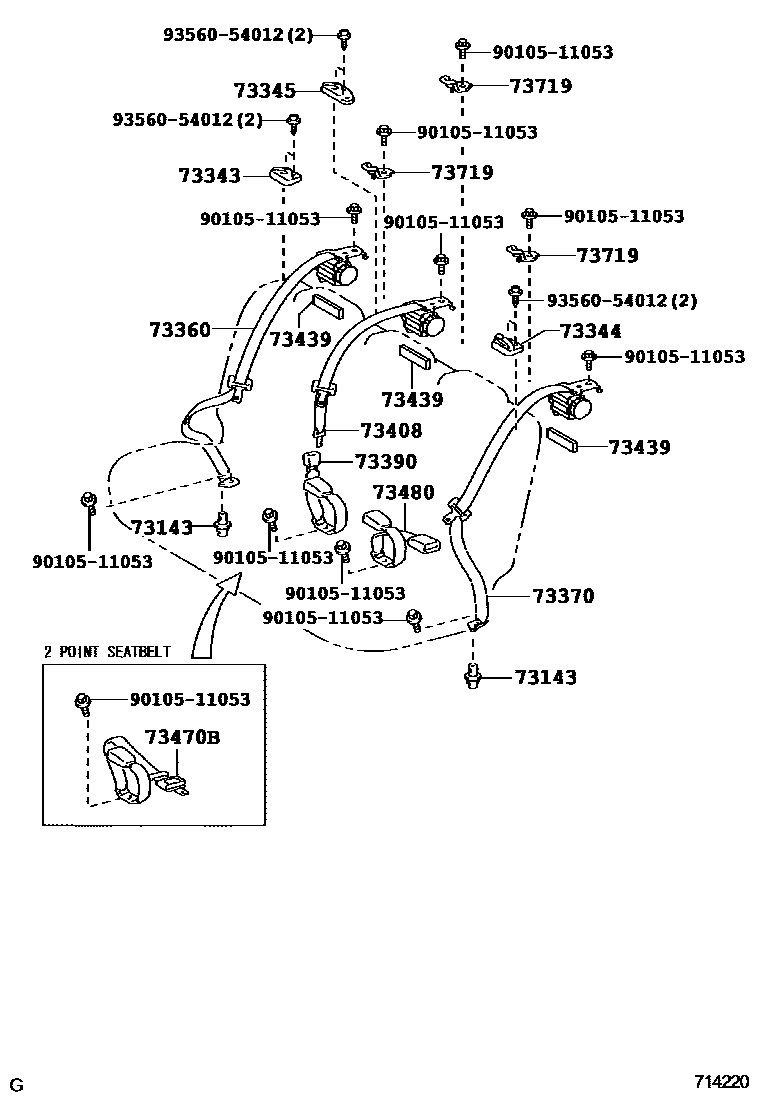

Toyota YARIS EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73143 | seat belt hole seal | 73143-52010 · 73143-52011 |
| 73439 | Rear seat belt retractor cushion | 73439-52030 |
| 73719 | Child restraint seat tether anchor bracket | 73719-52030 |
