Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

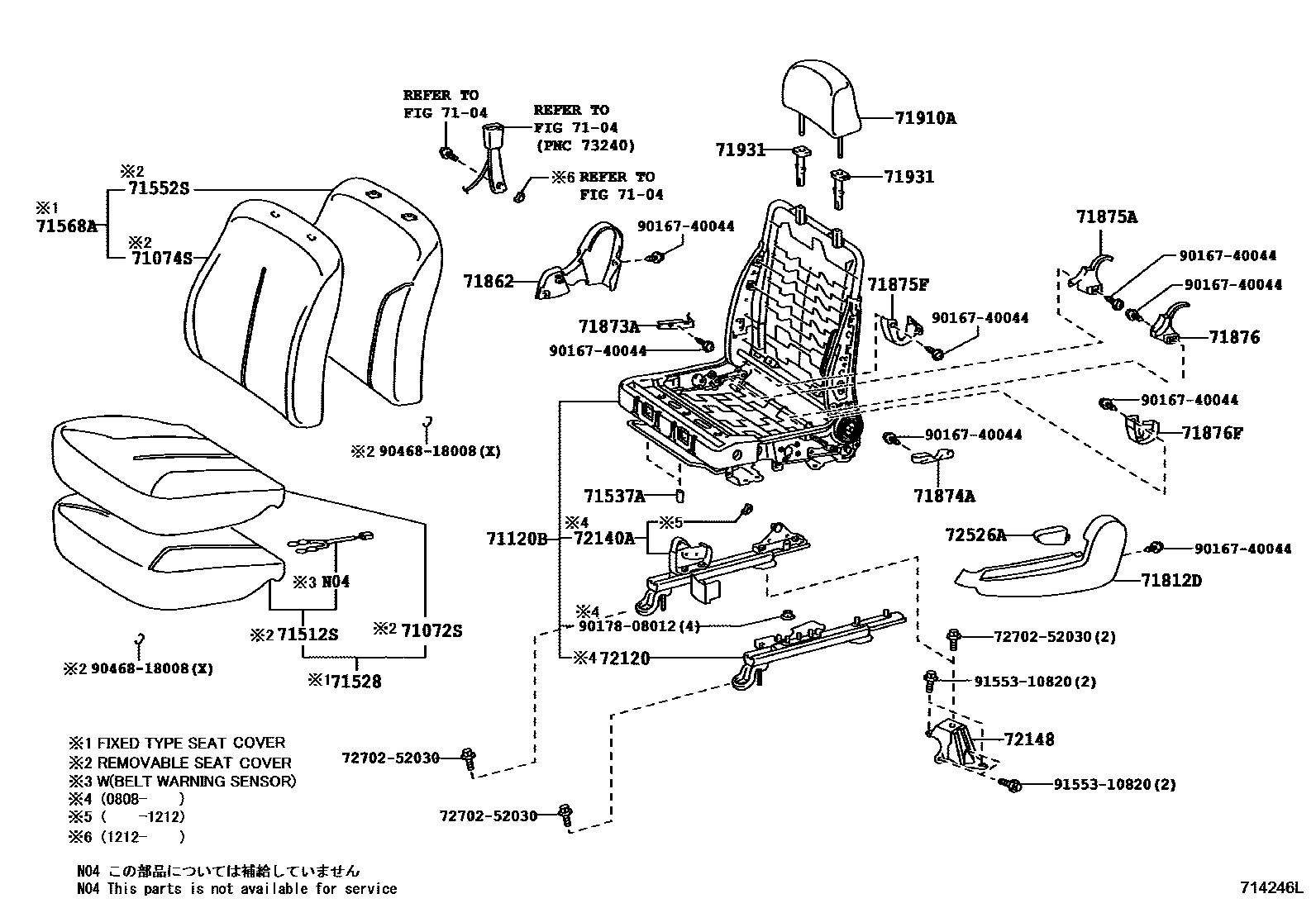

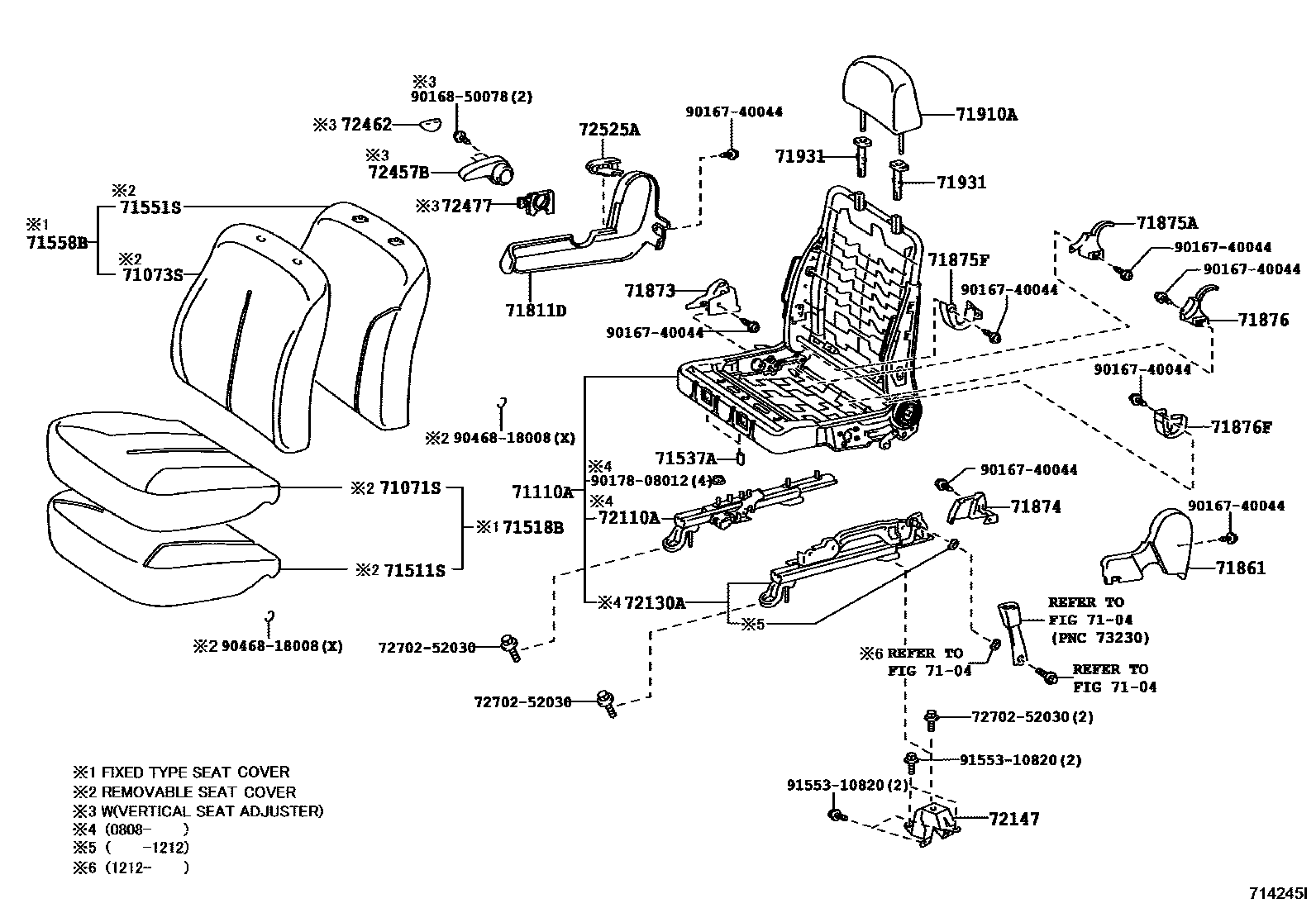

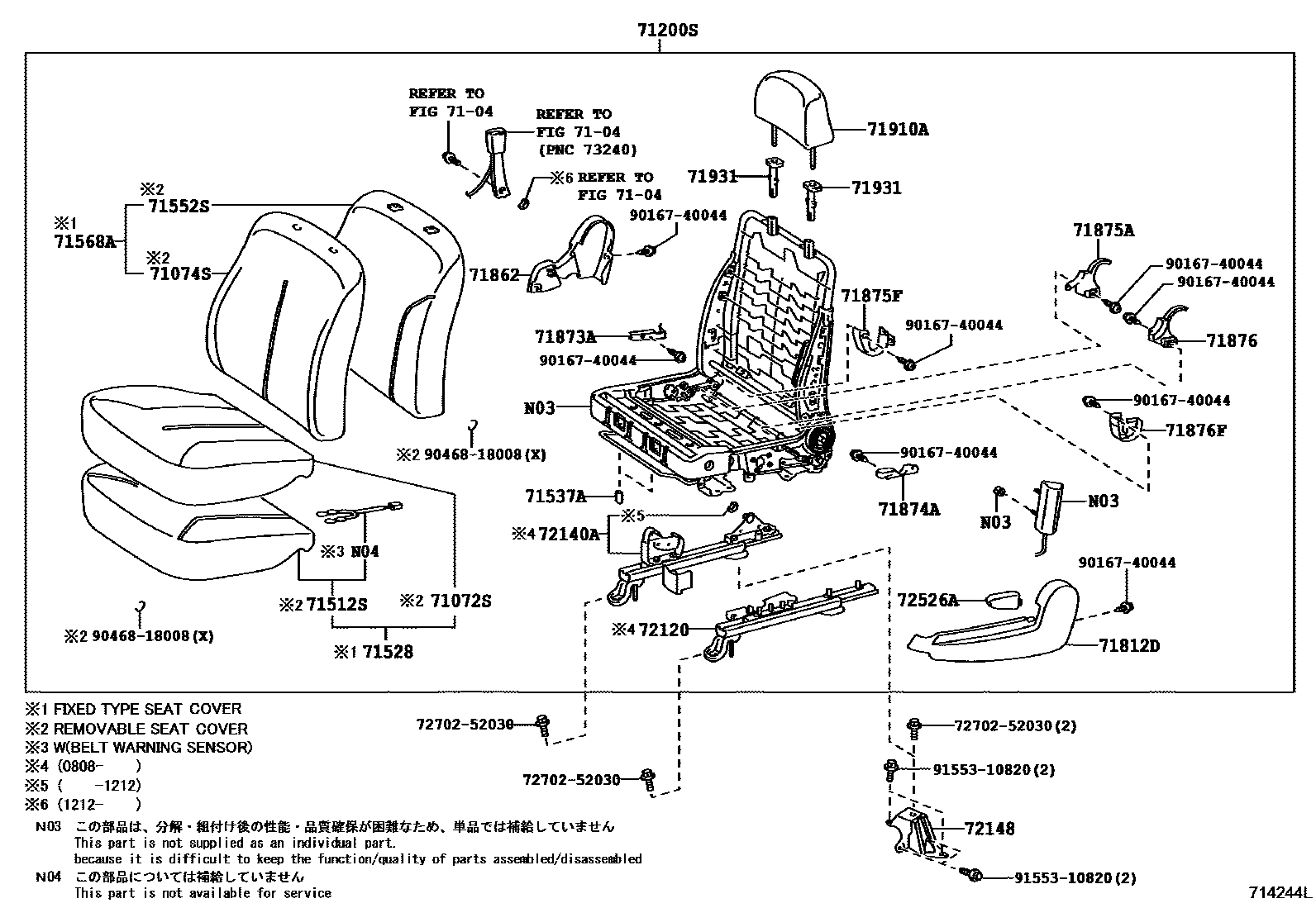

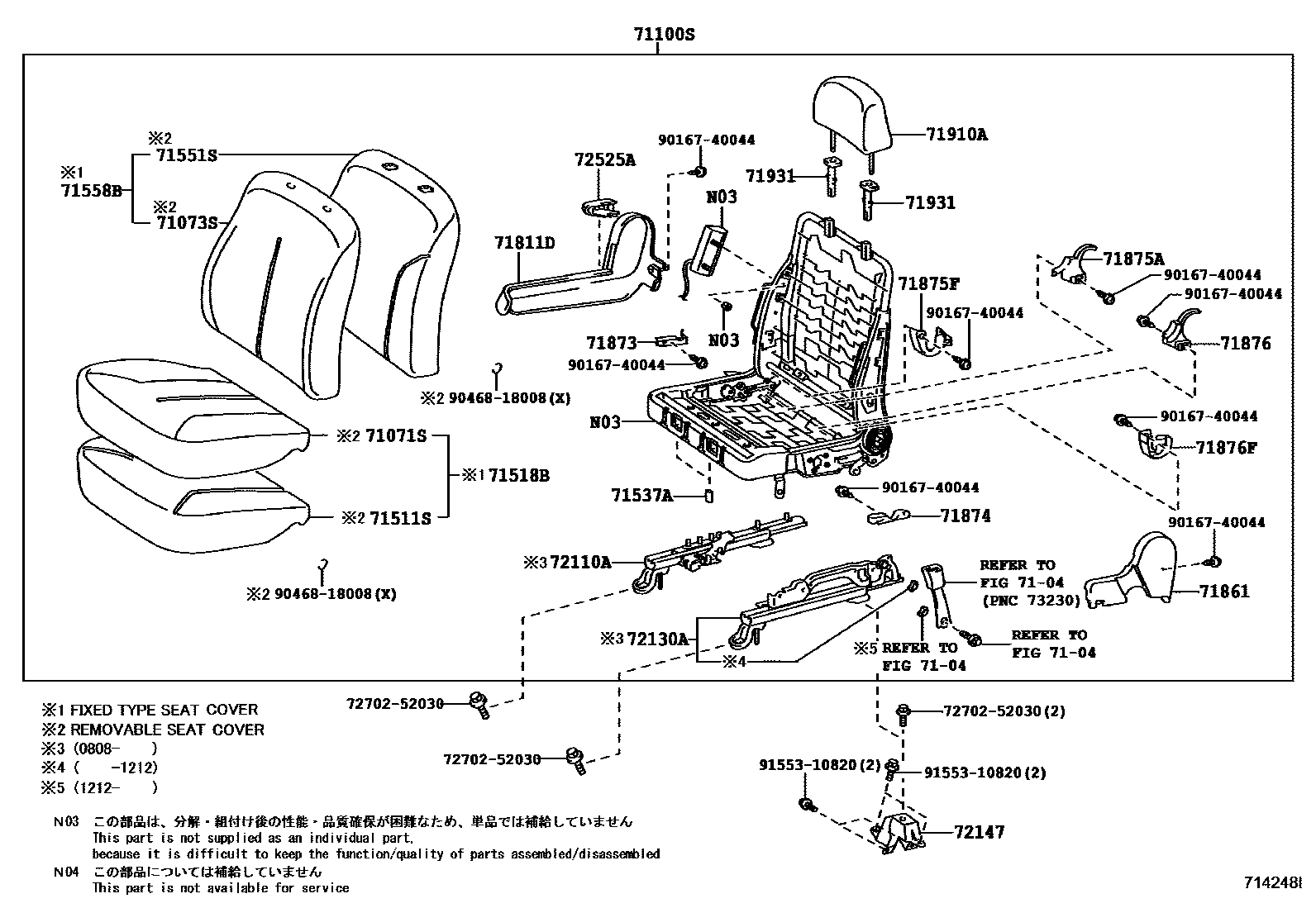

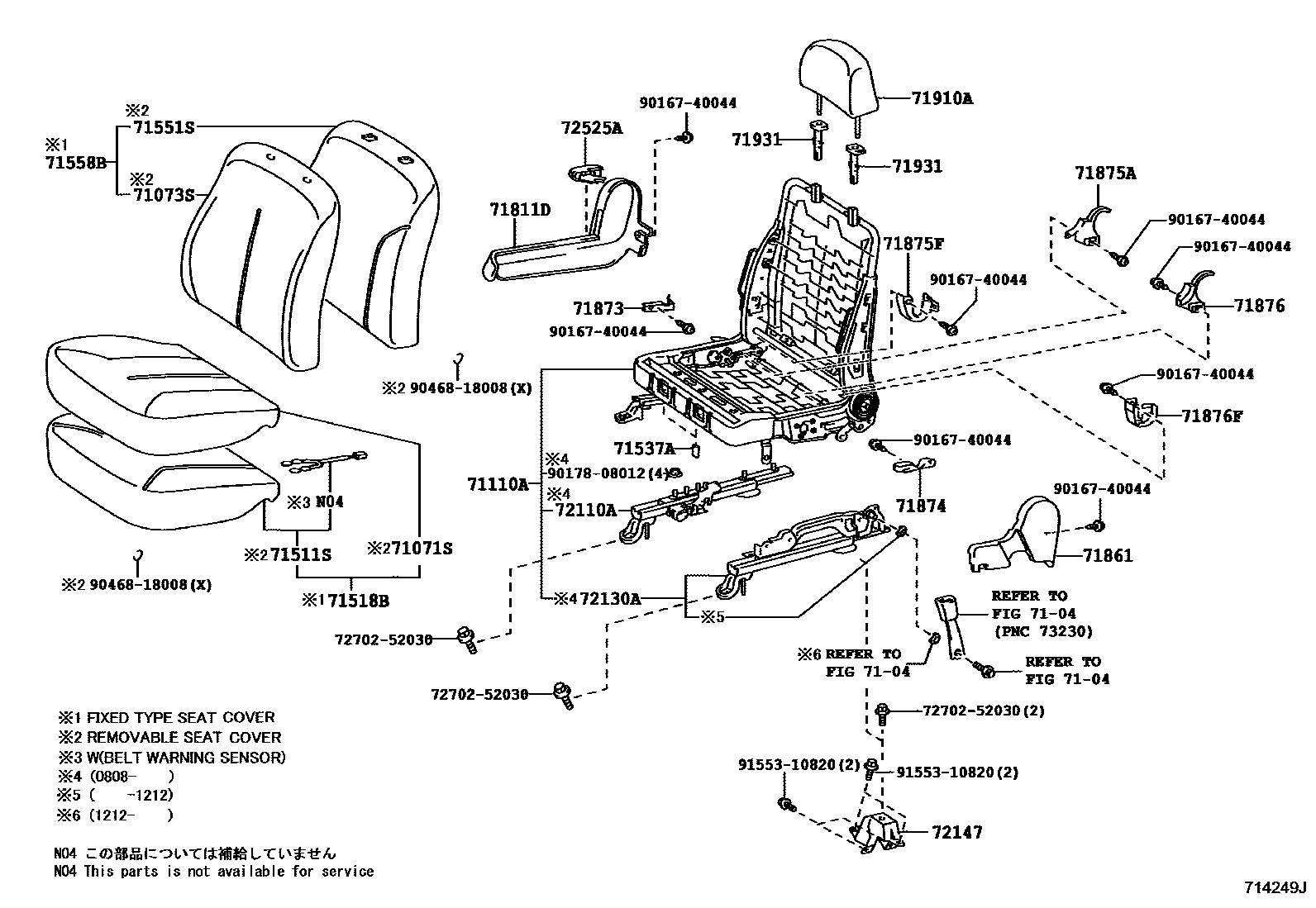

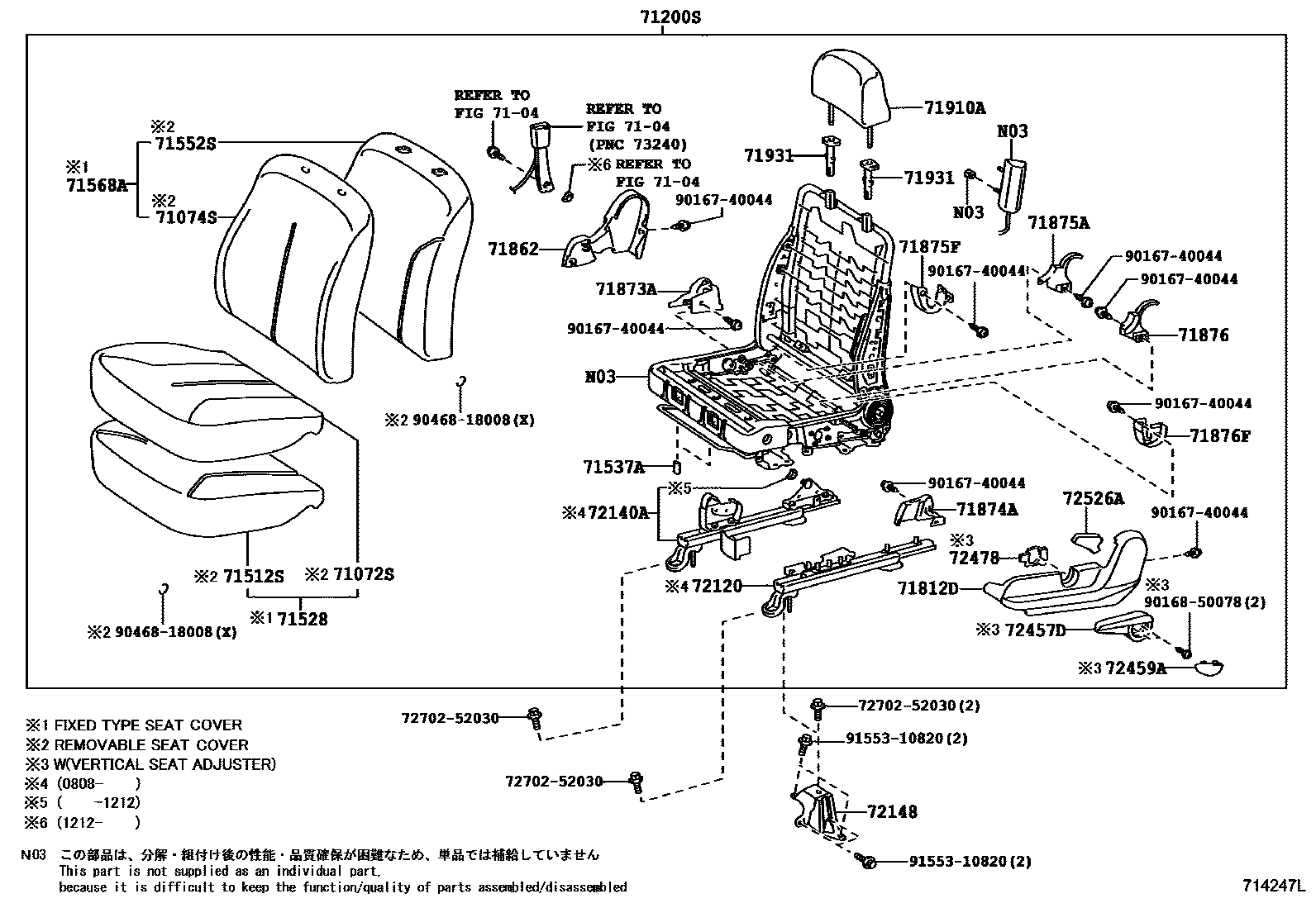

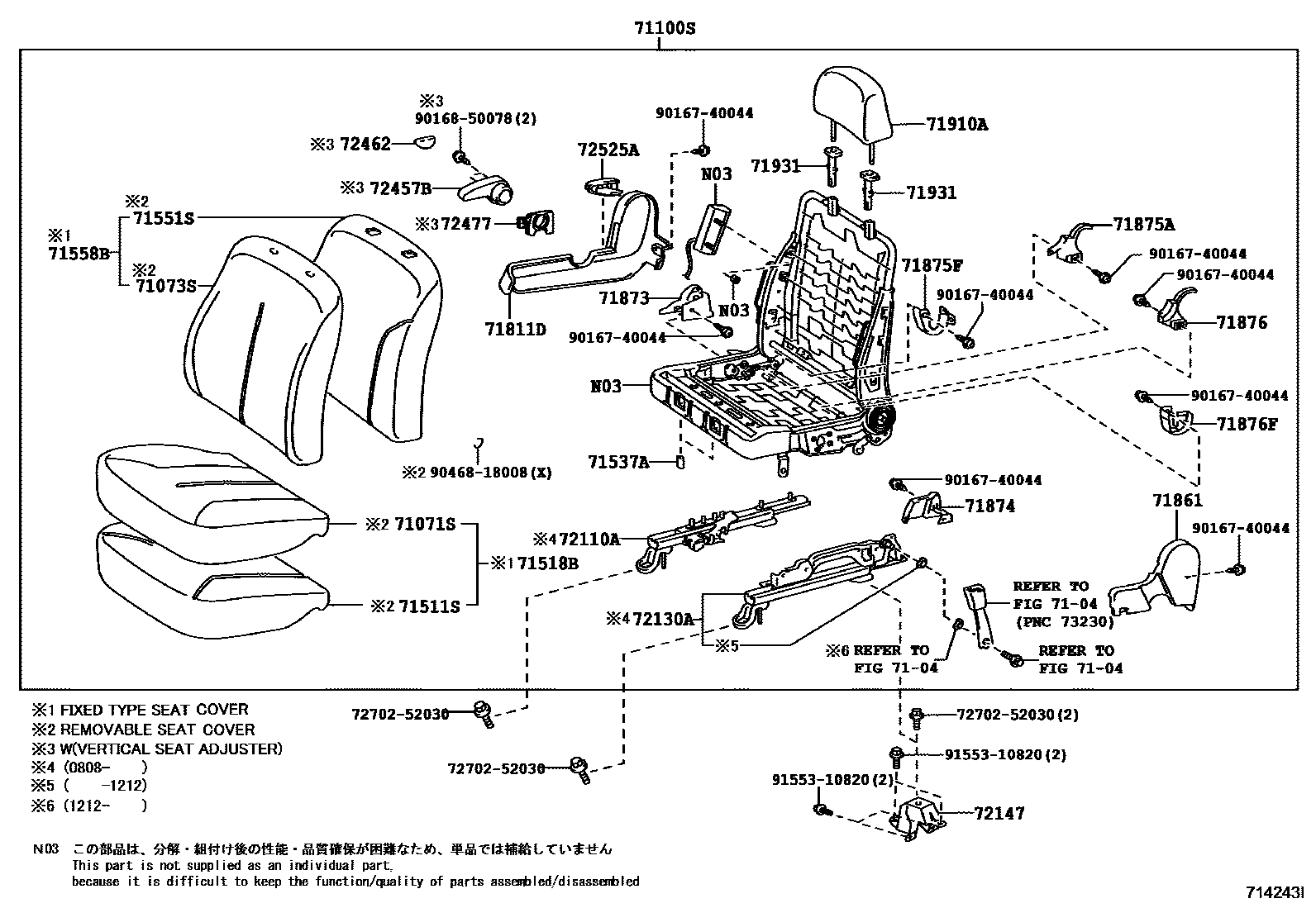

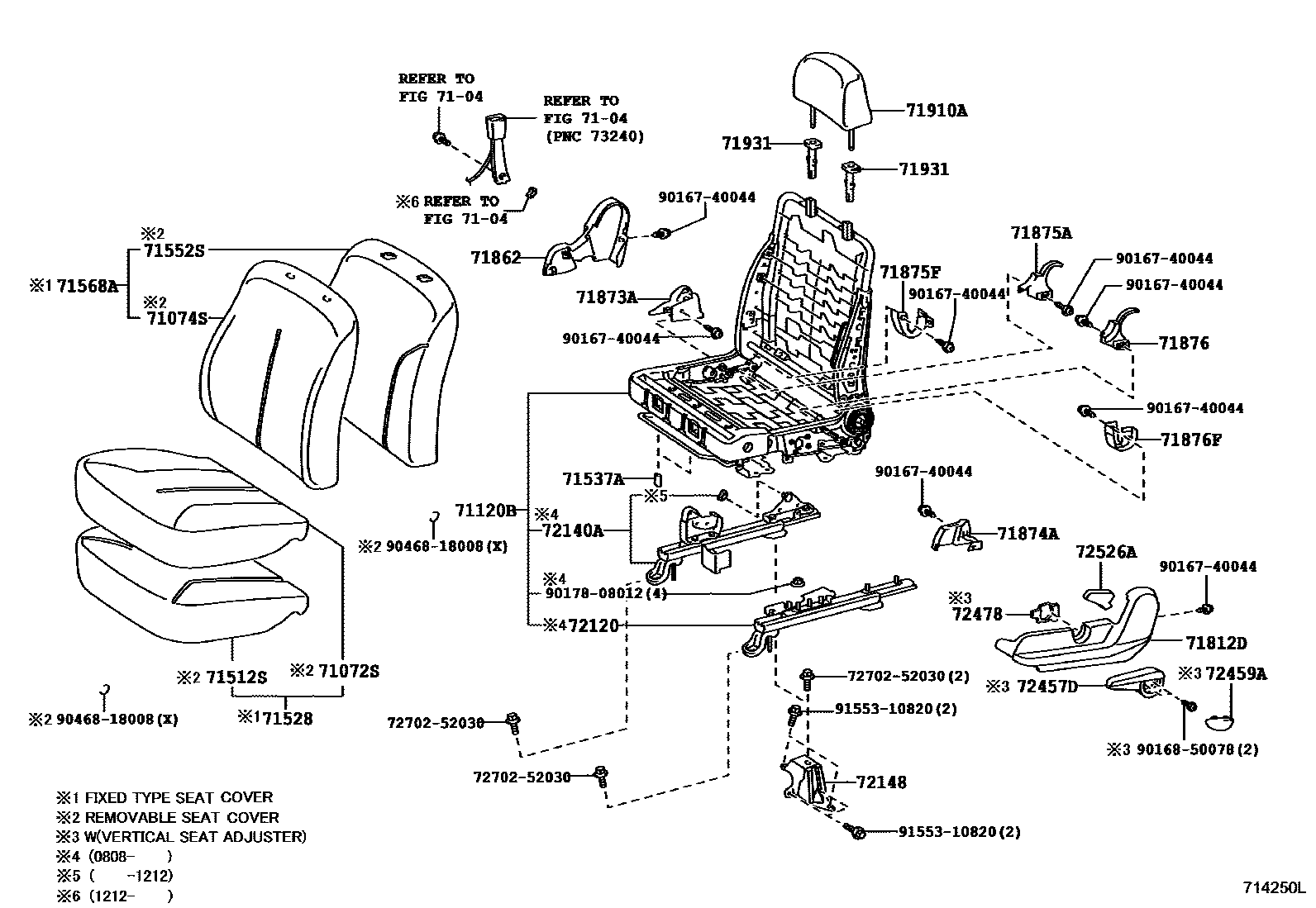

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 8 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71110A | Front right seat (with adjuster) frame assembly | 71110-52440 · 71110-52441 · 71110-52442 · 71110-52450 · 71110-52451 · 71110-52452 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-52510 · 71120-52511 · 71120-52512 · 71120-52530 · 71120-52531 · 71120-52532 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-52290 · 71511-52510 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-52060 · 71512-52330 · 71512-52340 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-52340 · 71551-52590 |
| 71552S | Front left seat back cushion (for split seats) | 71552-52510 · 71552-52520 |
| 72110A | Front right seat outer slide rail assembly | 72110-52110 · 72110-52111 |
| 72120 | Front left seat outer slide rail assembly | 72120-52110 · 72120-52111 |
| 72130A | Front right seat inner slide rail assembly | 72130-52180 · 72130-52181 · 72130-52182 · 72130-52190 · 72130-52191 · 72130-52192 |
| 72140A | Front left seat inner slide rail assembly | 72140-52200 · 72140-52201 · 72140-52202 · 72140-52210 · 72140-52211 · 72140-52212 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-52020 · 72147-52060 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-52010 · 72148-52060 |
| 72477 | Height adjuster spacer | 72477-58010 |
| 72478 | height adjuster bushing | 72478-60010 |
