Toyota YARIS 后门板和后门玻璃 — Figure 6705

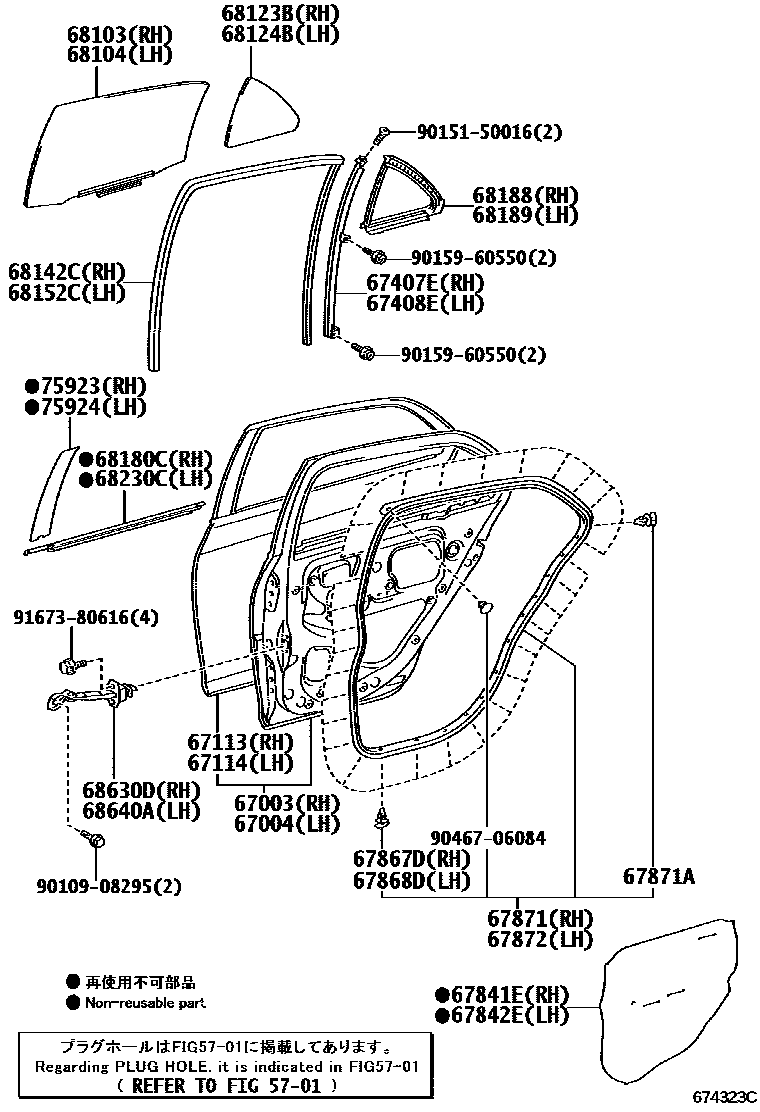

Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-52340 · 67003-52350 |
| 67004 | Left rear door panel sub-assembly | 67004-52340 · 67004-52350 |
| 67113 | Right rear door outer panel | 67113-52180 |
| 67114 | Left rear door outer panel | 67114-52180 |
| 67407E | Right rear door window divider sub-assembly | 67407-52140 |
| 67408E | Left rear door window divider sub-assembly | 67408-52140 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 · 90467-10161 |
| 67627 | Right rear door trim panel bracket | 67626-52030 |
| 67628 | Left rear door trim panel bracket | 67626-52030 |
| 67841E | Right rear door access hole cover | 67841-52220 · 67841-52221 |
| 67842E | Left rear door access hole cover | 67841-52220 · 67841-52221 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-52150 |
| 67871A | Fixings (for rear door sealing strip) | 67867-52010 · 67867-52040 |
| 67872 | Left rear door sealing strip | 67872-52170 |
| 68103 | Right rear door glass sub-assembly | 68130-52280 |
| 68104 | Left rear door glass sub-assembly | 68140-52280 |
| 68123B | Right rear door corner window glass | 68123-52150 |
| 68124B | Left rear door corner window glass | 68124-52150 |
| 68142C | Right rear door glass lift slot | 68142-52170 |
| 68152C | Left rear door glass lift slot | 68152-52180 |
| 68173B | Right rear door glass inner sealing strip | 68173-52130 |
| 68174A | Left rear door glass inner sealing strip | 68174-52130 |
| 68180C | Right rear door glass outer sealing strip assembly | 68180-52130 |
| 68188 | Right rear door corner window seal | 68188-52080 |
| 68189 | Left rear door corner window seal | 68189-52080 |
| 68230C | Left rear door glass outer sealing strip assembly | 68230-52130 |
| 68630D | Right rear door opening limiter assembly | 68630-52080 · 68630-52081 |
| 68640A | Left rear door opening limiter assembly | 68640-52090 · 68640-52091 |
| 75923 | No. 2 right side light-shielding film | 75923-52080 |
| 75924 | No. 2 left shading film | 75924-52080 |
