Toyota YARIS 杂物箱板和行李箱垫 — Figure 6403

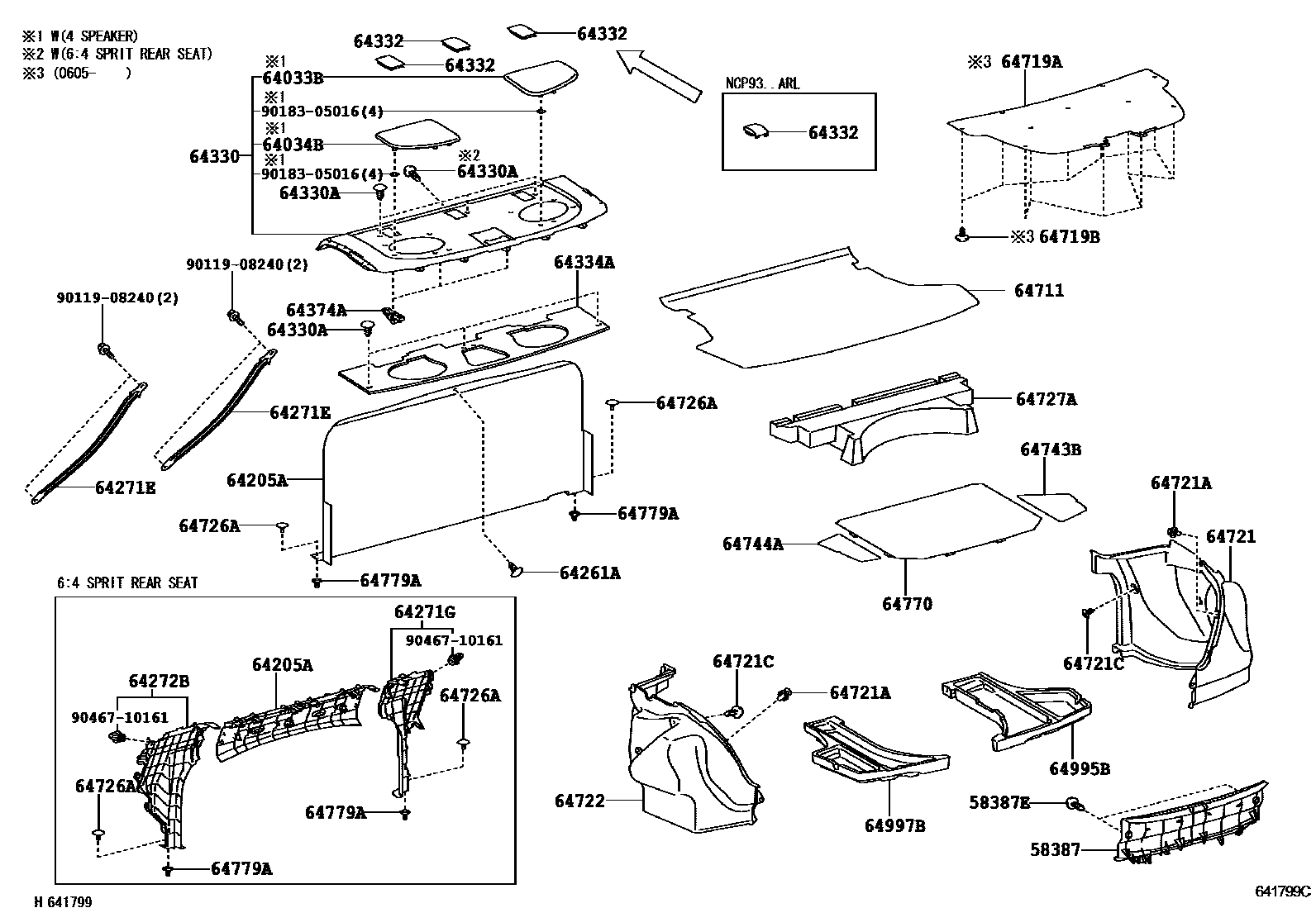

Toyota YARIS EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64205A | Cabin partition cover sub-assembly | 64275-52040 |
| 64271E | compartment partition | 64241-52080 |
| 64334A | Glove box decorative mat | 64334-52030 · 64334-52040 |
| 64374A | Glove box decorative panel bracket | 64374-52010 |
| 64721A | Clip (for trunk interior decoration cover) | 90467-10183 |
| 64727A | Luggage interior decorative mat | 64727-52010 · 64727-52020 |
| 64743B | Bottom panel side armrest box right cover | 64743-52010 |
| 64744A | Floor side armrest box left cover | 64744-52010 |
| 64770 | Spare tire cover assembly | 64770-52140 · 64770-52141 |
| 64779A | Spare tire cover stop | 64779-52020 |
| 64995B | Bottom right floor box | 64995-52090 |
| 64997B | Bottom left floor box | 64997-52050 |
