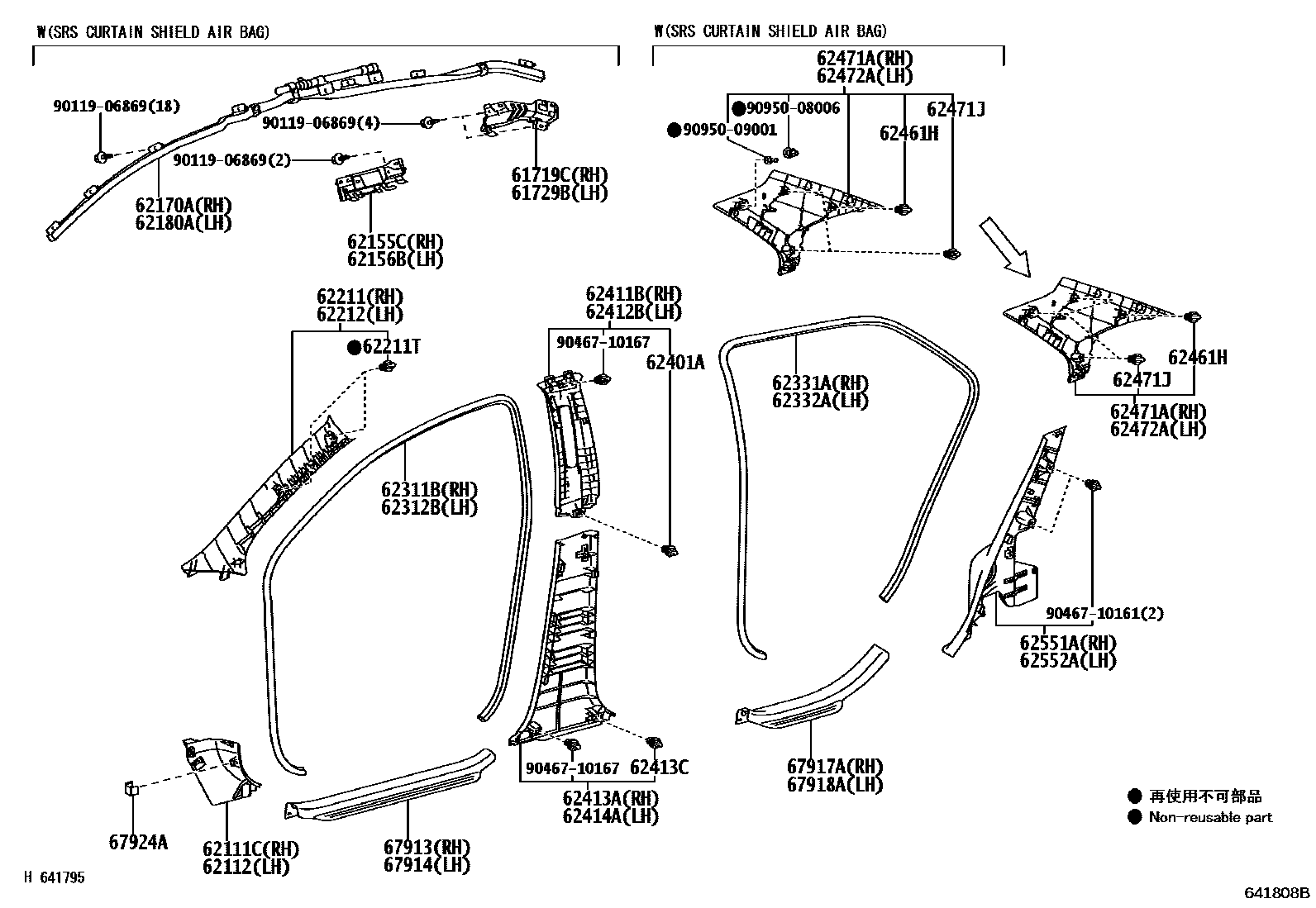

Toyota YARIS 内饰板和车门防水胶条 — Figure 6401
Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61719C | Roof right side rail bracket | 61719-52050 |
| 61729B | Roof left side rail bracket | 61729-52060 |
| 62155C | Right curtain airbag bracket | 62155-52050 |
| 62156B | Left curtain airbag bracket | 62156-52030 |
| 62170A | Right curtain air bag assembly | 62170-52040 |
| 62180A | Left curtain air bag assembly | 62180-52040 |
| 62211T | Clip (for front pillar decorative panel) | 62217-52070 · 62217-52130 · 90467-10161 · 90467-10188 |
| 62401A | Clips (for decorative panels on center pillars) | 90467-10161 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62461H | Clips (for roof side interior panels) | 90467-10167 |
| 62471J | Clips (for roof side trim panels) | 90467-10161 |
| 67924A | Door No. 2 wear plate clip | 67924-52140 |
