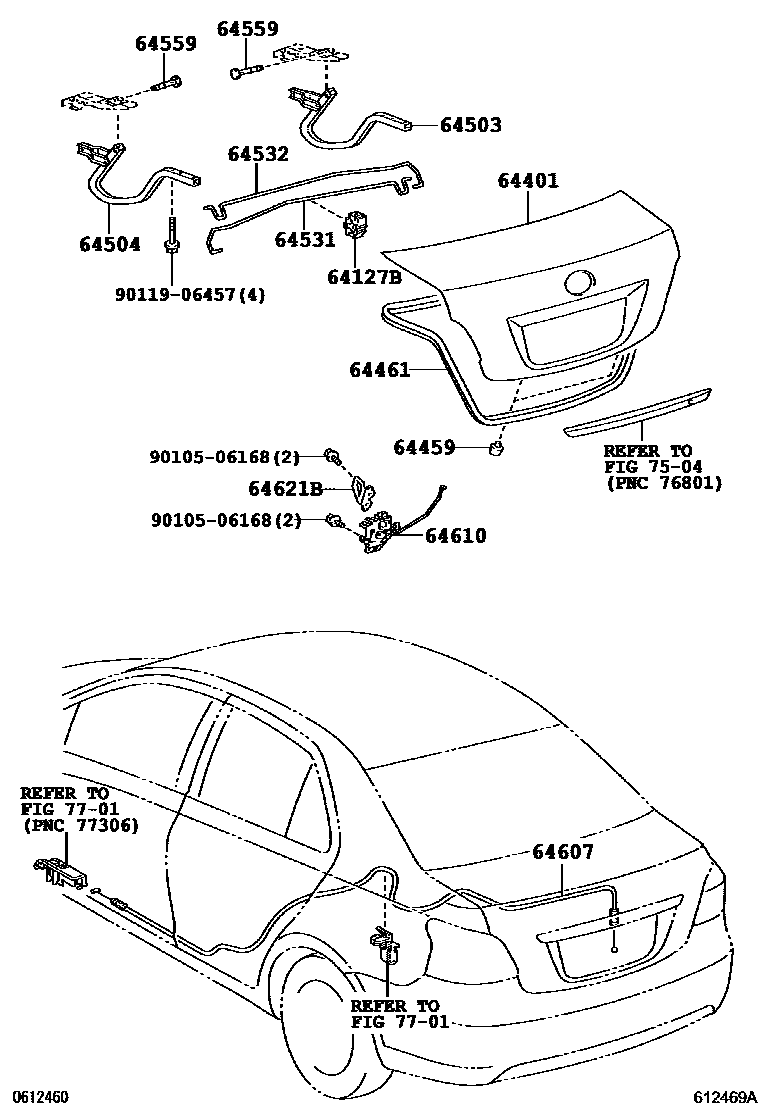

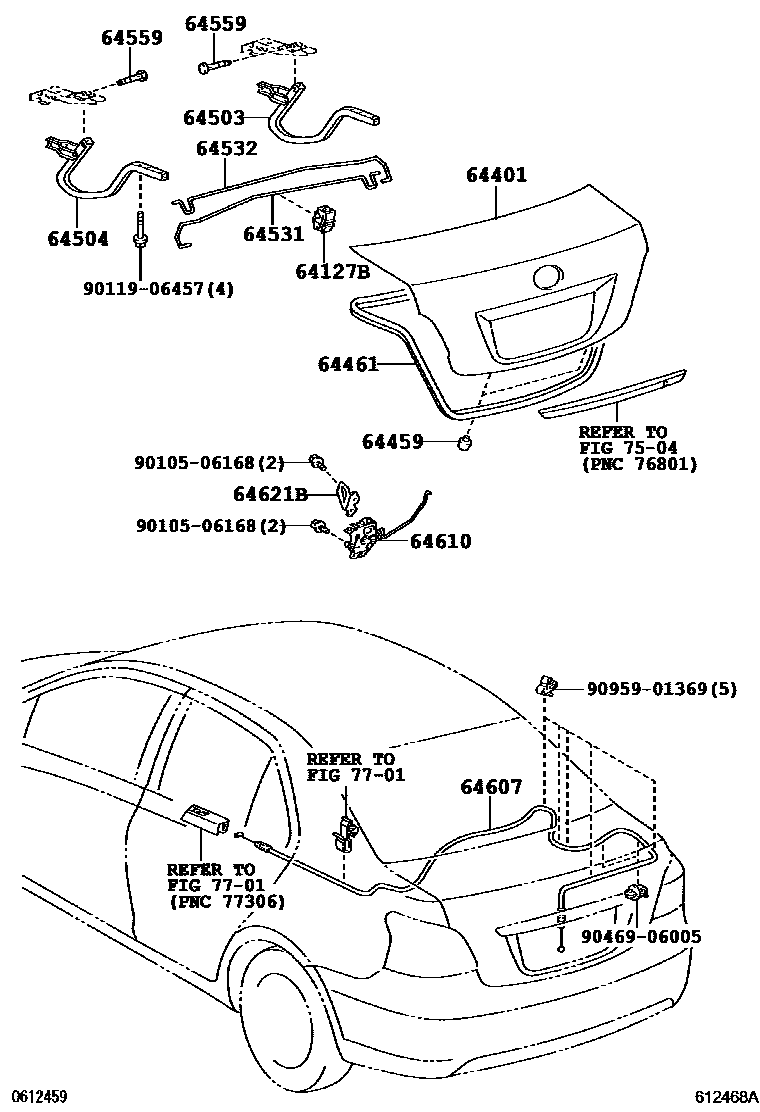

Toyota YARIS 行李箱门和行李箱锁 — Figure 6105
Toyota YARIS EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-16070 |
| 64401 | Trunk door panel sub-assembly | 64401-52120 · 64401-52160 |
| 64459 | Trunk door cushion | 90541-09116 |
| 64461 | Trunk door seal | 64461-52030 · 64461-52031 · 64461-52032 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-12150 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-12150 |
| 64531 | Trunk door right hinge torsion bar | 64531-52050 · 64531-52051 · 64531-52060 · 64531-52061 |
| 64532 | Trunk door left hinge torsion bar | 64532-52050 · 64532-52051 · 64532-52060 · 64532-52061 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-52070 · 64607-52090 |
| 64610 | Trunk door lock assembly | 64610-52090 · 64610-52110 |
| 64621B | Trunk door latch | 64621-33010 |
