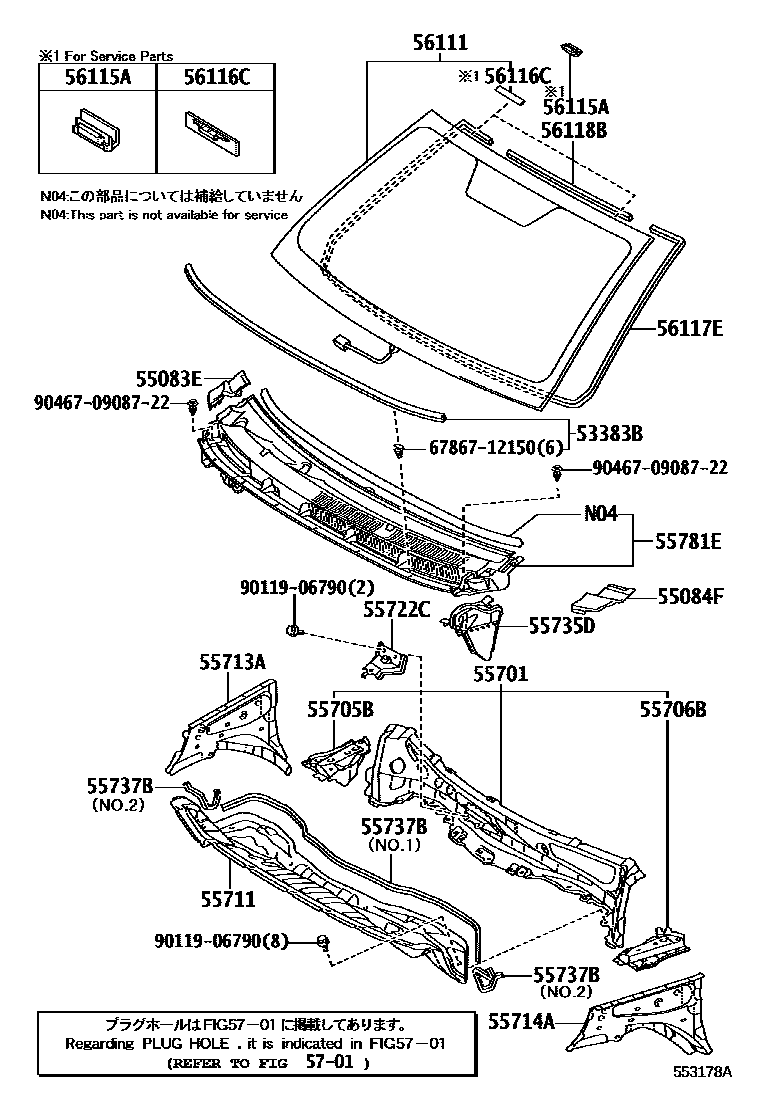

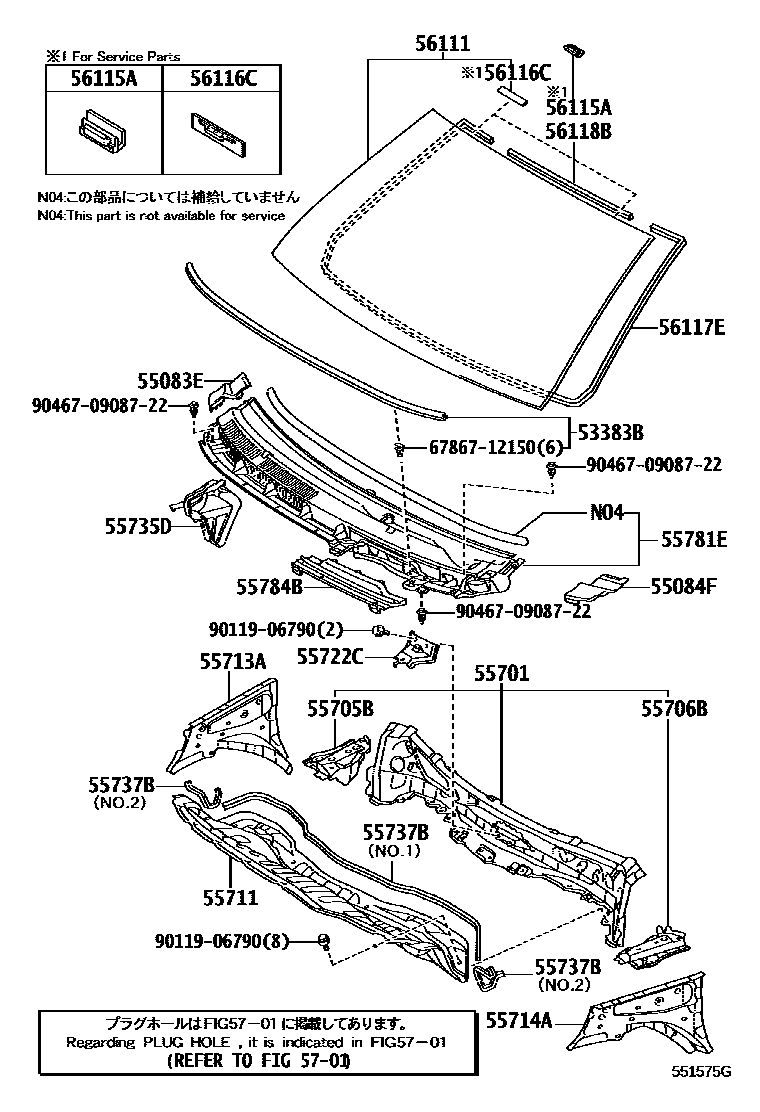

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-52100 |
| 55083E | Right cowl side ventilation device sub-assembly | 55083-52080 |
| 55084F | Left front wall side ventilation device sub-assembly | 55084-52010 |
| 55701 | Front apron sub-assembly | 55700-52240 · 55700-52250 · 55700-52260 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-52110 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-52110 |
| 55711 | Front outer panel | 55701-52210 · 55701-52220 |
| 55713A | Right front wall upper side panel | 55713-52090 |
| 55714A | Left front wall upper side panel | 55714-52090 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55722-52050 · 55722-52060 |
| 55735D | Front air door right seal | 55735-52040 · 55735-52050 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-52010 · 55737-52050 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-52080 · 55708-52100 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-52080 |
| 56111 | windshield | 56101-52310 · 56101-52311 · 56101-52320 · 56101-52322 · 56101-52510 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117E | Window glass adhesive seals | 56117-52150 |
| 56118B | Window Glass No. 2 Adhesive Sealing Strip | 56118-52100 |
