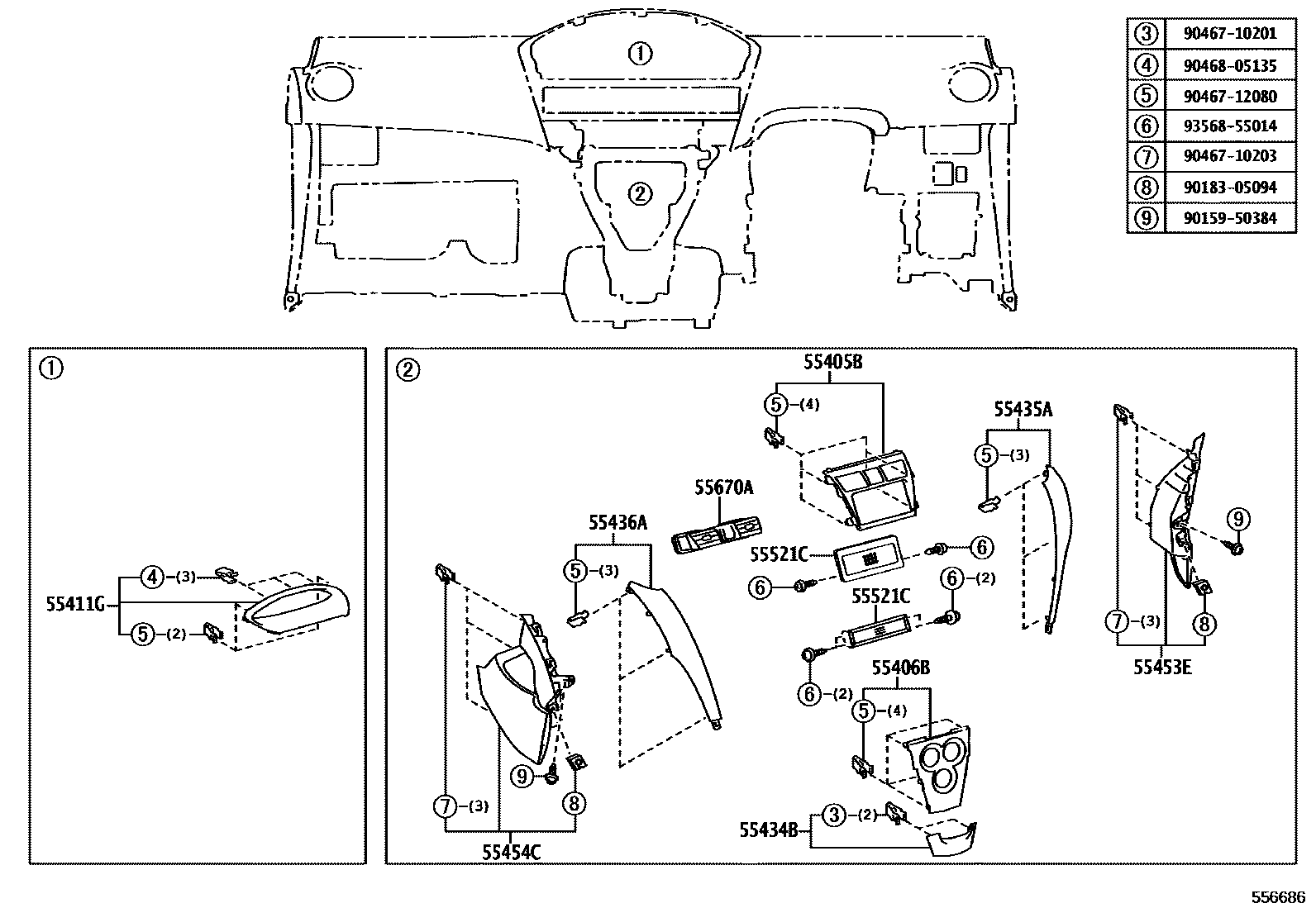

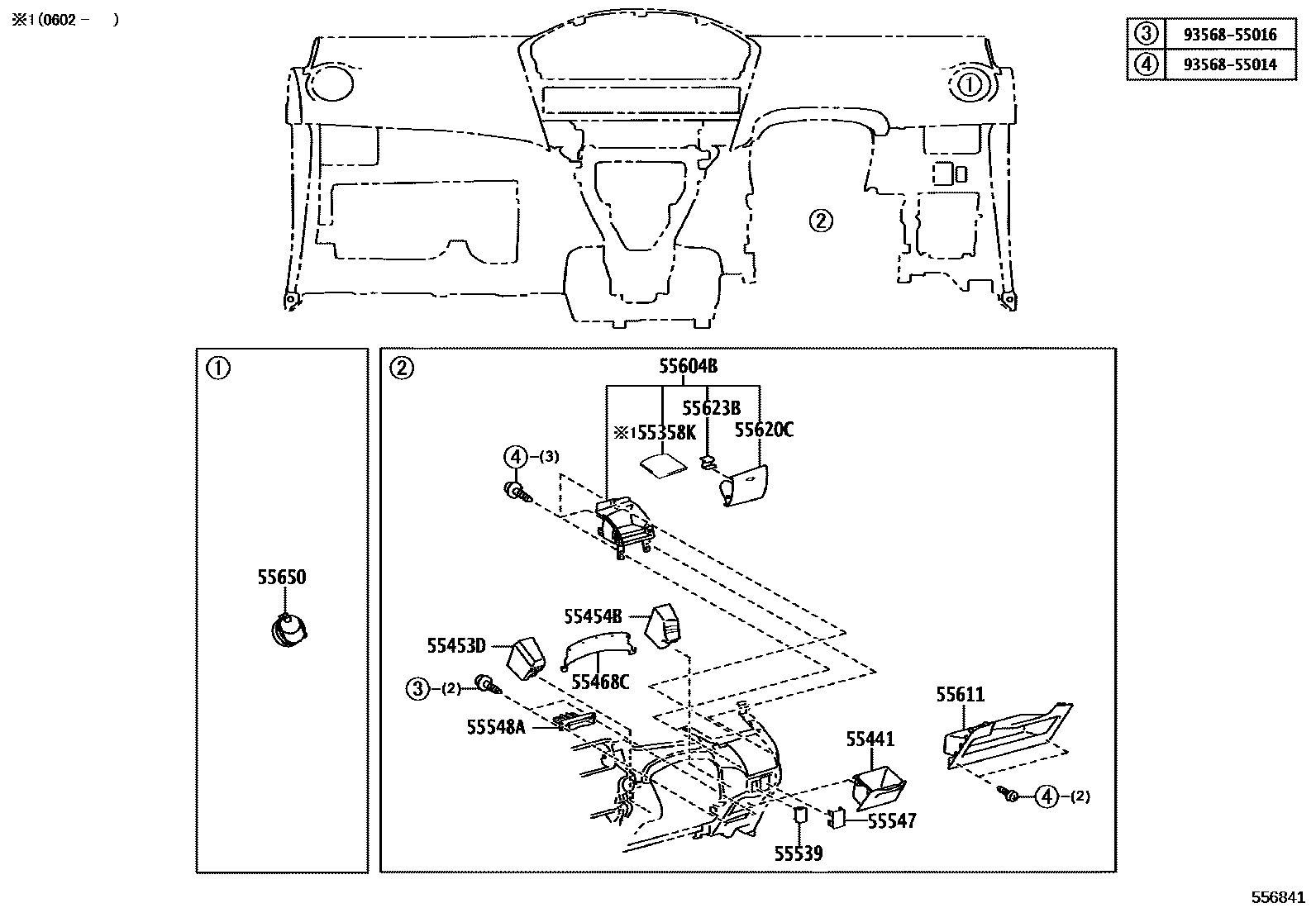

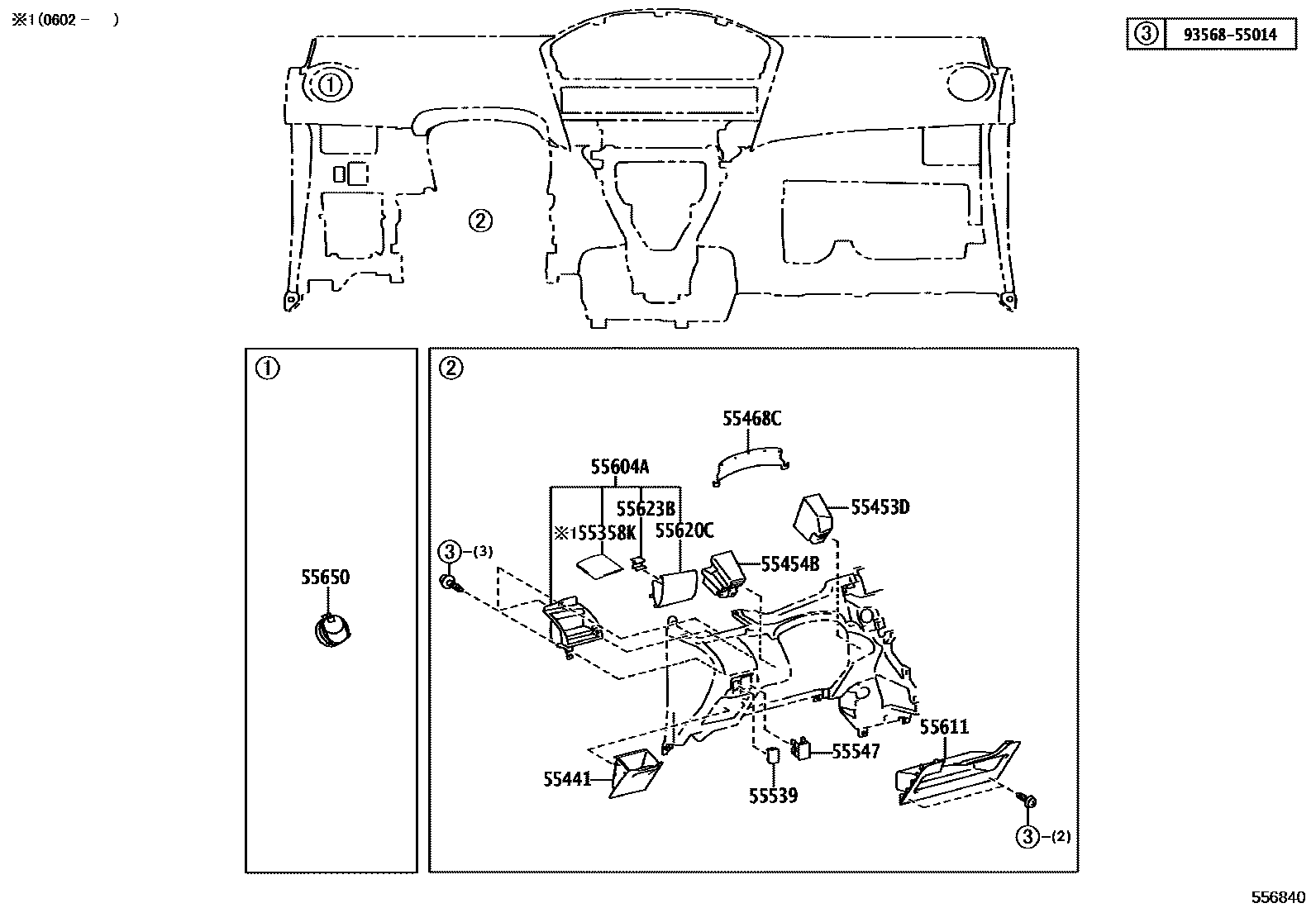

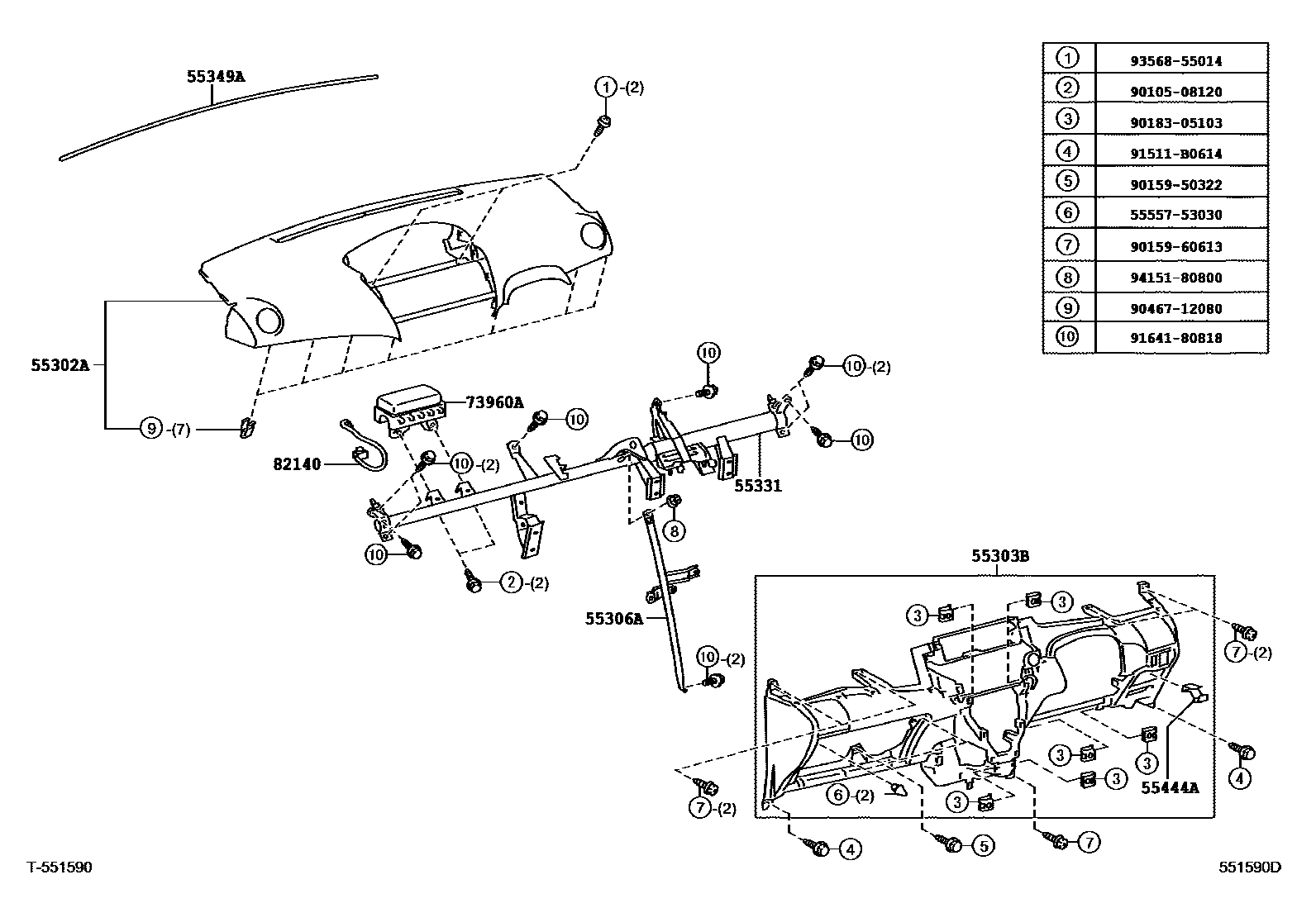

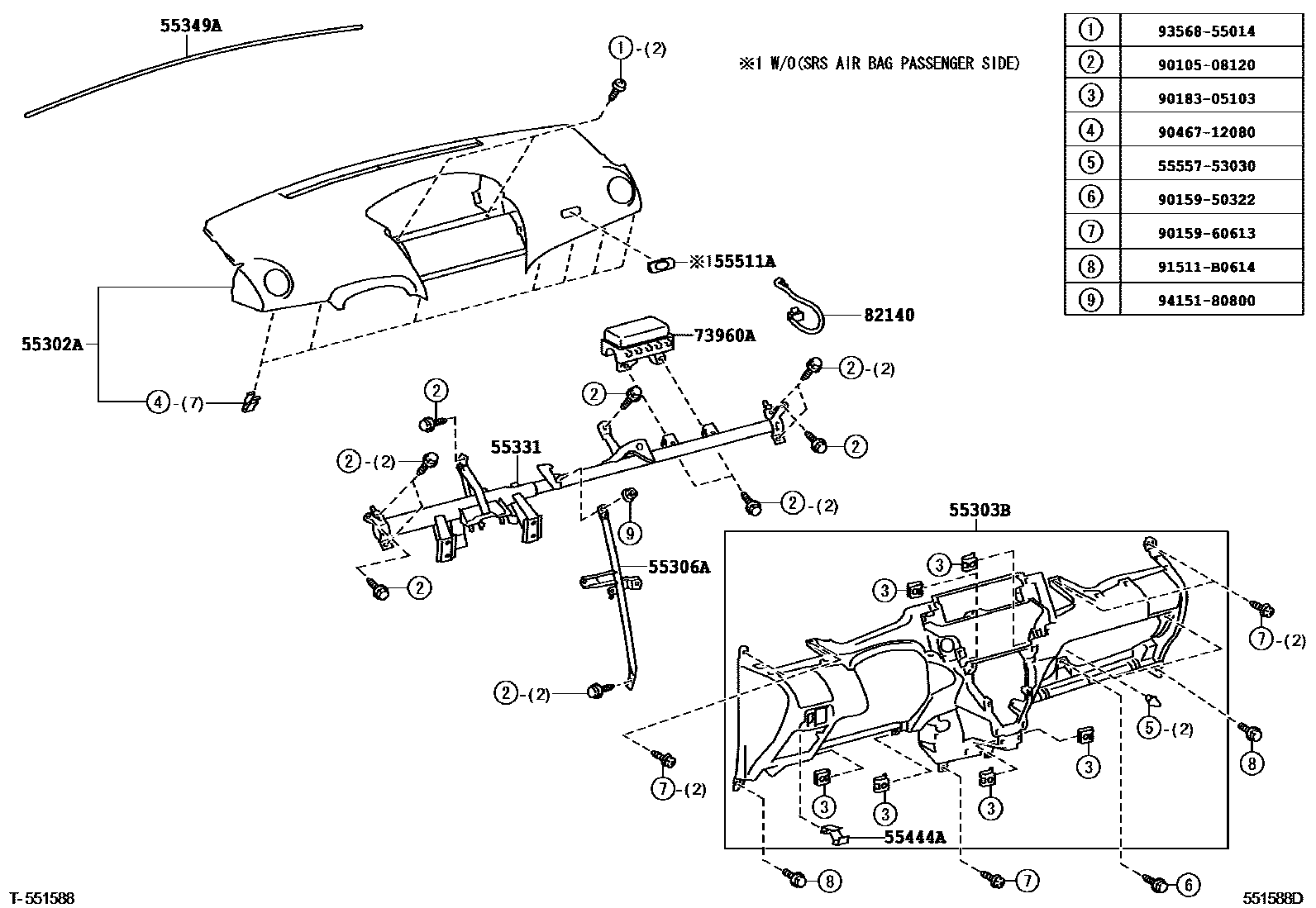

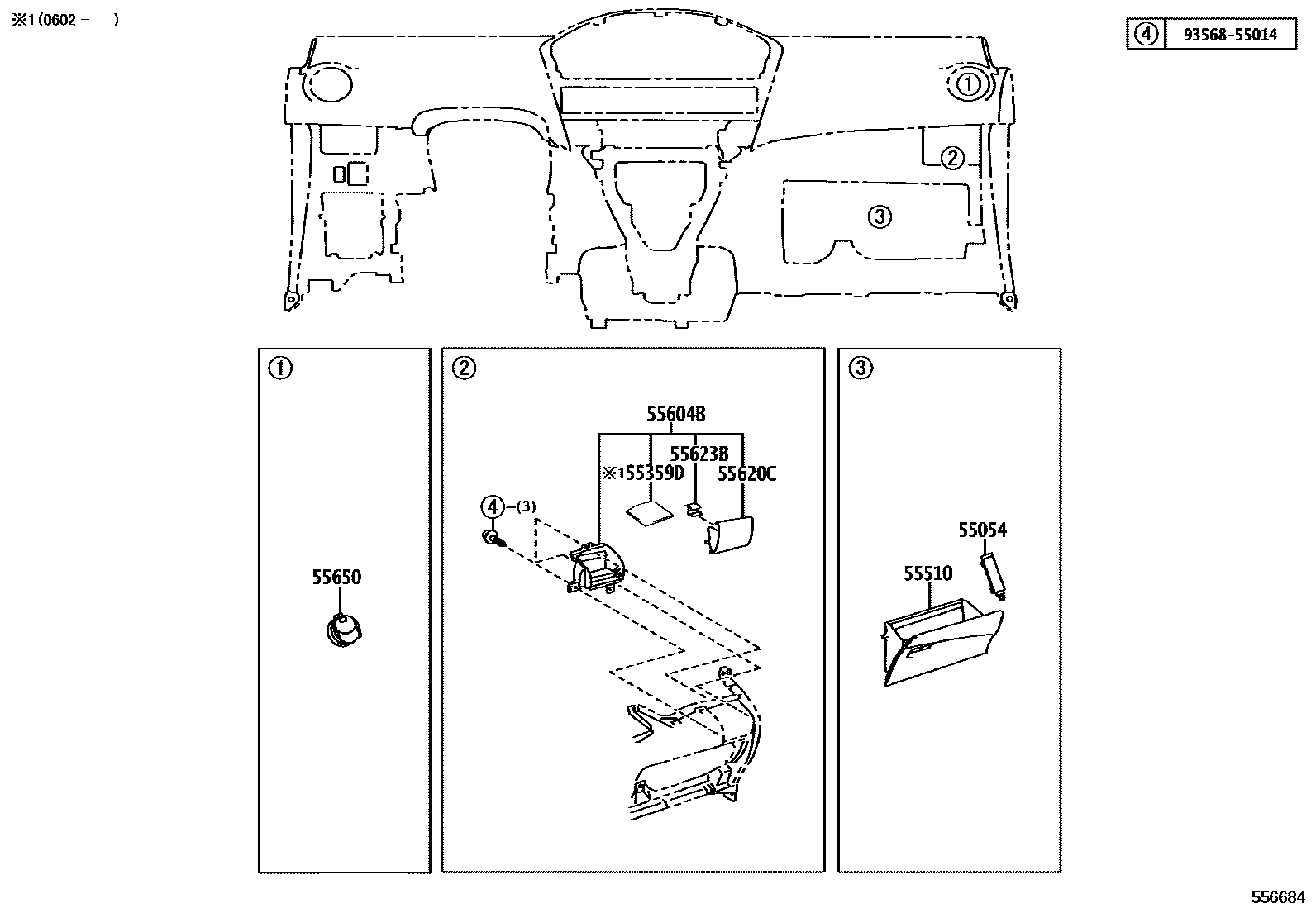

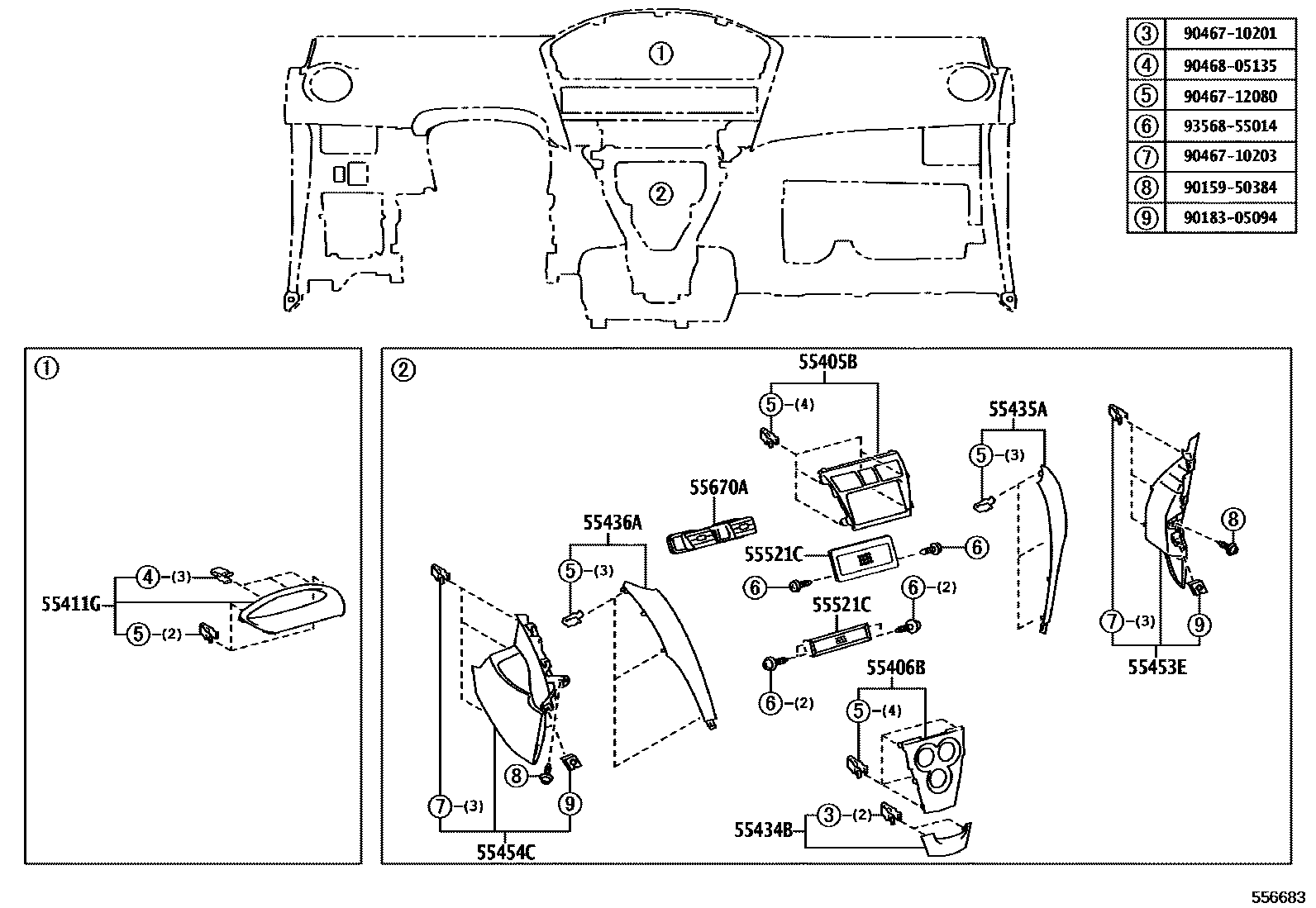

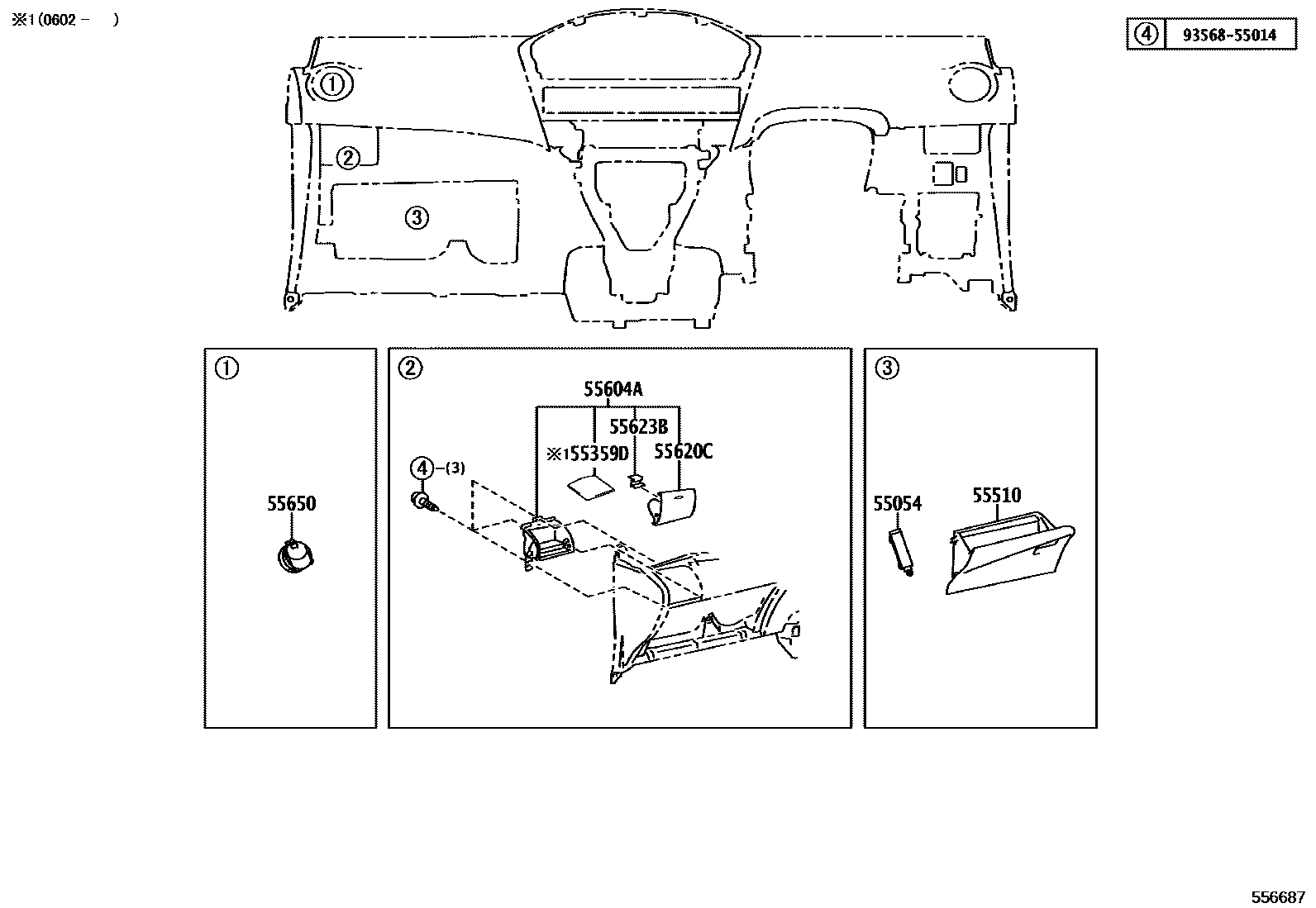

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 8 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-52020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-52160 · 55306-52180 |
| 55331 | Dashboard reinforcement | 55330-52450 · 55330-52451 · 55330-52460 · 55330-52461 |
| 55349A | Dashboard cushion | 55349-52060 · 55349-52290 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-52110 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-52090 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-52640 · 55405-52790 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-52170 · 55406-52270 |
| 55444A | Dashboard storage box spring | 55444-52260 · 55444-52261 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-52080 · 55453-52090 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-52070 · 55454-52080 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-52040 |
| 55521C | stereo system hole cover | 55521-20150 · 55522-52020 |
| 55623B | Dashboard cup holder spring | 55623-52040 · 55623-52050 · 55623-52060 · 55623-52070 |
| 55670A | Instrument panel central air register assembly | 55670-52030 · 55670-52050 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-52070 |
| 82140 | Instrument panel wiring harness assembly | 82140-52020 |
