Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

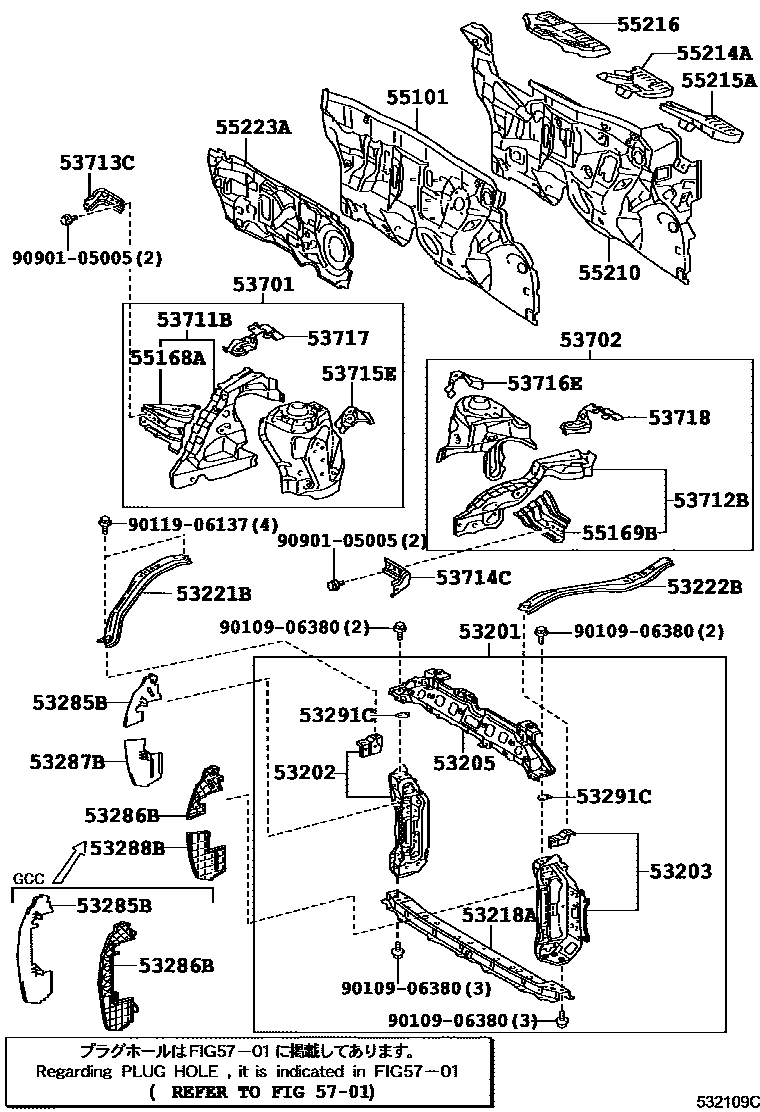

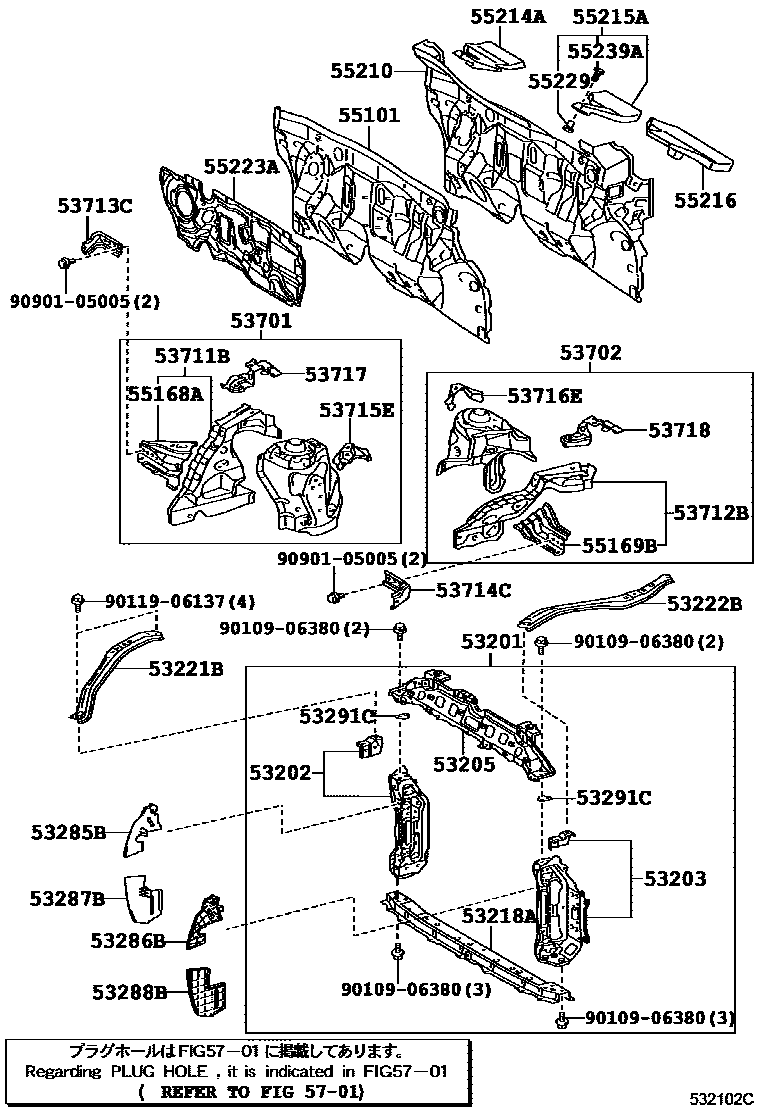

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-52230 |
| 53202 | Radiator right side bracket sub-assembly | 53202-52902 · 53202-52909 |
| 53203 | Radiator left bracket sub-assembly | 53203-52902 · 53203-52907 |
| 53205 | Radiator upper bracket sub-assembly | 53205-52100 |
| 53218A | Radiator lower support | 53028-52070 |
| 53221B | Radiator right side bracket baffle stay | 53221-52020 |
| 53222B | Radiator left bracket baffle stay | 53222-52020 |
| 53285B | Radiator side 1 air seal | 53285-52230 · 53285-52240 |
| 53286B | Radiator No. 2 side air seal | 53286-52170 · 53286-52180 |
| 53287B | Radiator right side bracket extension | 53287-52050 |
| 53288B | Radiator left bracket extension | 53288-52050 |
| 53291C | Radiator bracket to frame seal | 53291-52070 |
| 53701 | Right front fender fender sub-assembly | 53701-52180 |
| 53702 | Left front fender fender sub-assembly | 53702-52180 |
| 53711B | Right front fender front fender | 53707-52030 · 53707-52060 |
| 53712B | Left front fender front fender | 53708-52030 · 53708-52060 |
| 53713C | Right front fender fender front extension | 53713-52030 |
| 53714C | Left front fender fender front extension | 53714-52040 |
| 53715E | Right front fender fender rear extension | 53715-52030 |
| 53716E | Left front fender fender rear extension | 53716-52030 |
| 53717 | Right fender fender side panel | 53717-52100 |
| 53718 | Left fender fender side panel | 53718-52100 |
| 55101 | Front apron sub-assembly | 55101-52481 · 55101-52490 · 55101-52500 · 55101-52690 |
| 55168A | Right front fender mounting bracket | 55168-52130 |
| 55169B | Left front fender mounting bracket | 55169-52130 |
| 55210 | Front wall insulation pad assembly | 55210-52220 · 55210-52221 · 55210-52230 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-52130 · 55214-52140 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-52100 · 55215-52101 · 55215-52110 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-52010 · 55216-52020 · 55216-52021 |
| 55223A | Front wall outer heat insulation pad | 55223-52080 · 55223-52090 · 55223-52100 · 55223-52101 · 55223-52110 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-48010 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-48020 |
