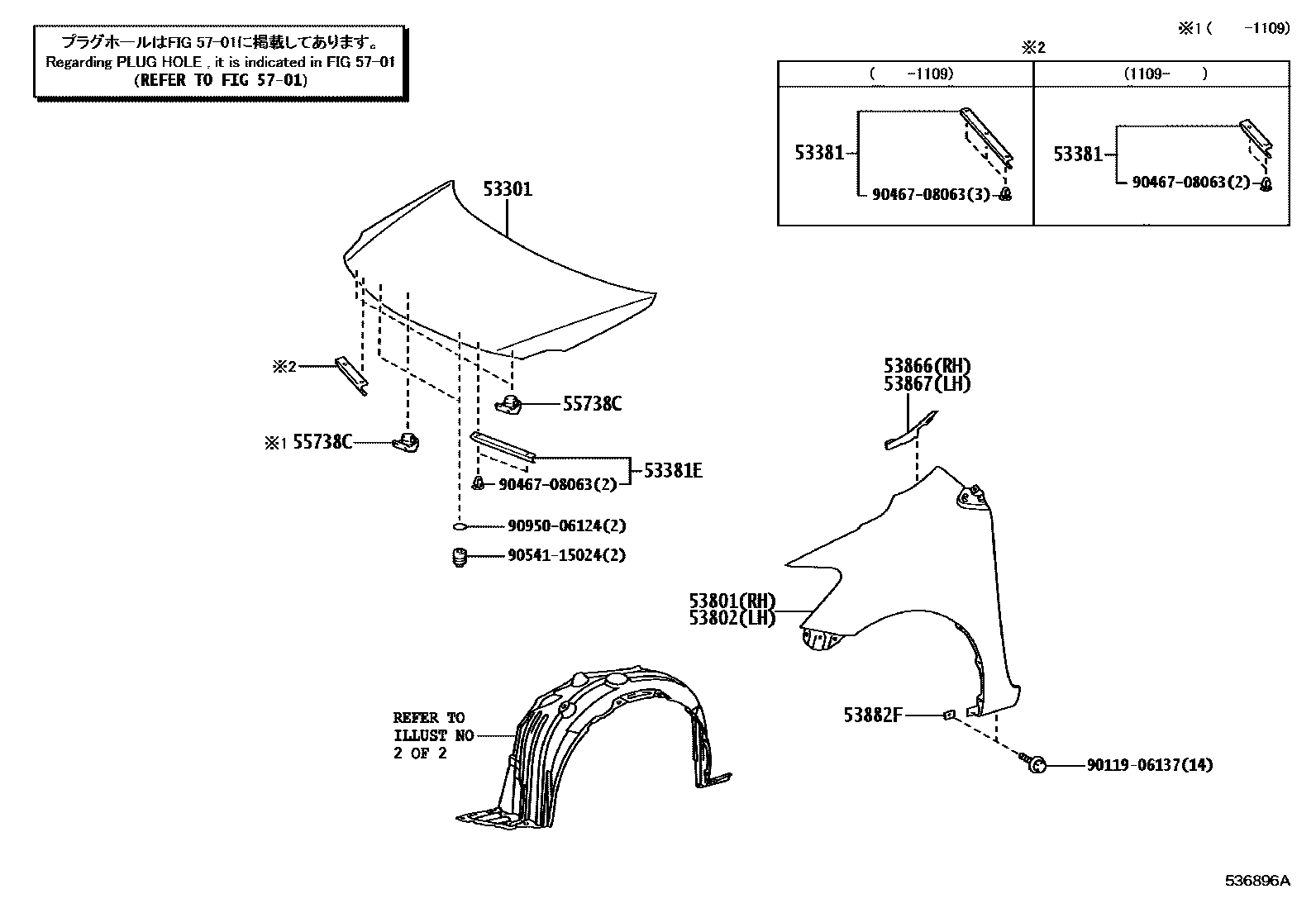

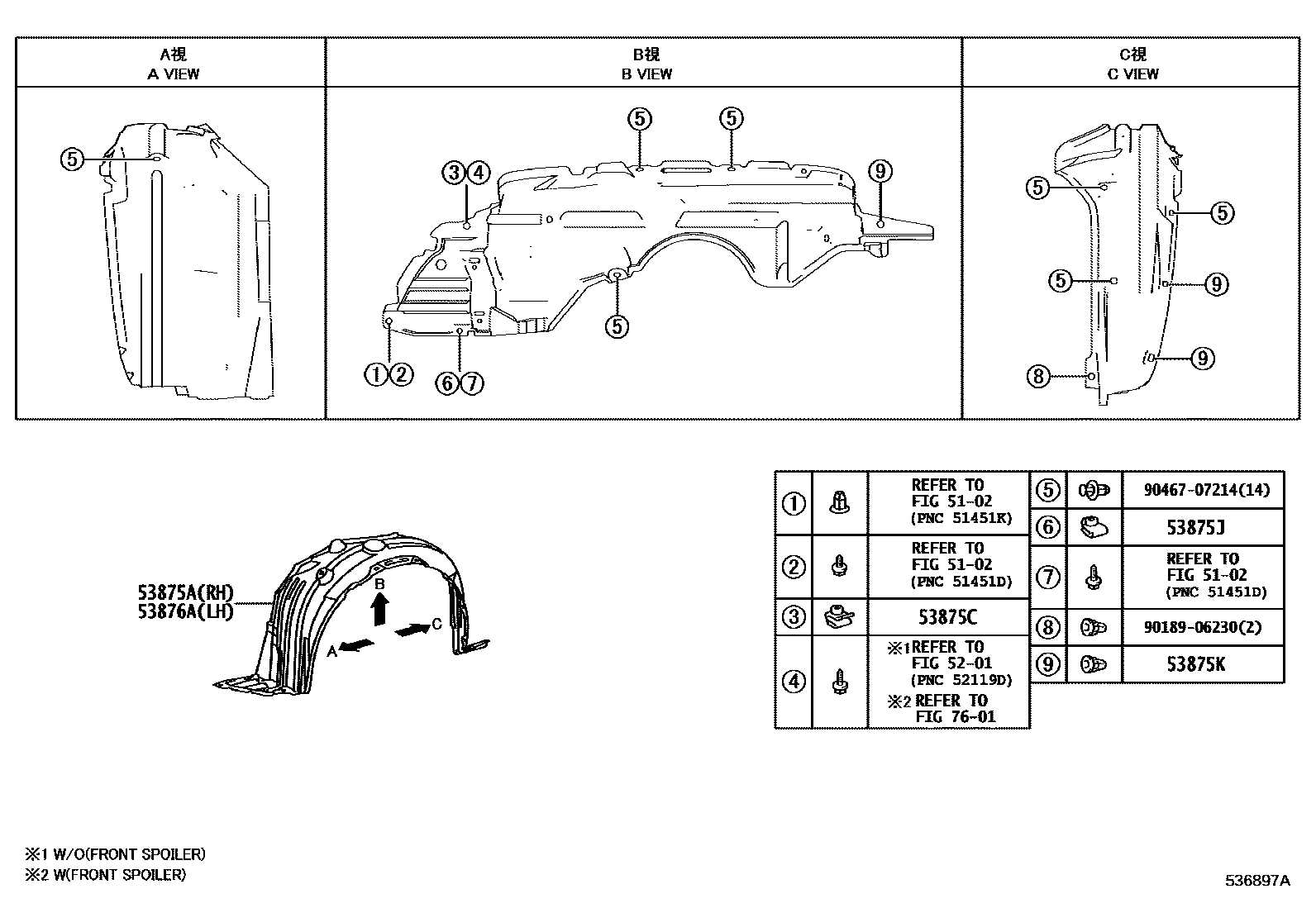

Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-52260 · 53301-52261 |
| 53381 | Engine cover to radiator bracket seal | 53381-52040 · 53381-52050 |
| 53381E | Engine cover to radiator bracket seal | 53381-52040 |
| 53801 | Right front fender sub-assembly | 53811-52230 · 53811-52240 |
| 53802 | Left front fender sub-assembly | 53812-52230 · 53812-52240 |
| 53866 | Right front fender to cowl side seal | 53866-52120 |
| 53867 | Left front fender to cowl side seal | 53867-52110 |
| 53875A | Right front fender lining | 53875-52180 |
| 53875C | Front fender lining clip | 90467-05114 |
| 53875J | Front fender lining clip | 90467-05128 |
| 53875K | screw seal | 90189-06013 |
| 53876A | Left front fender lining | 53876-52180 |
| 53882F | front fender seal | 53882-16030 |
| 55738C | Engine cover right block | 55738-52050 |
