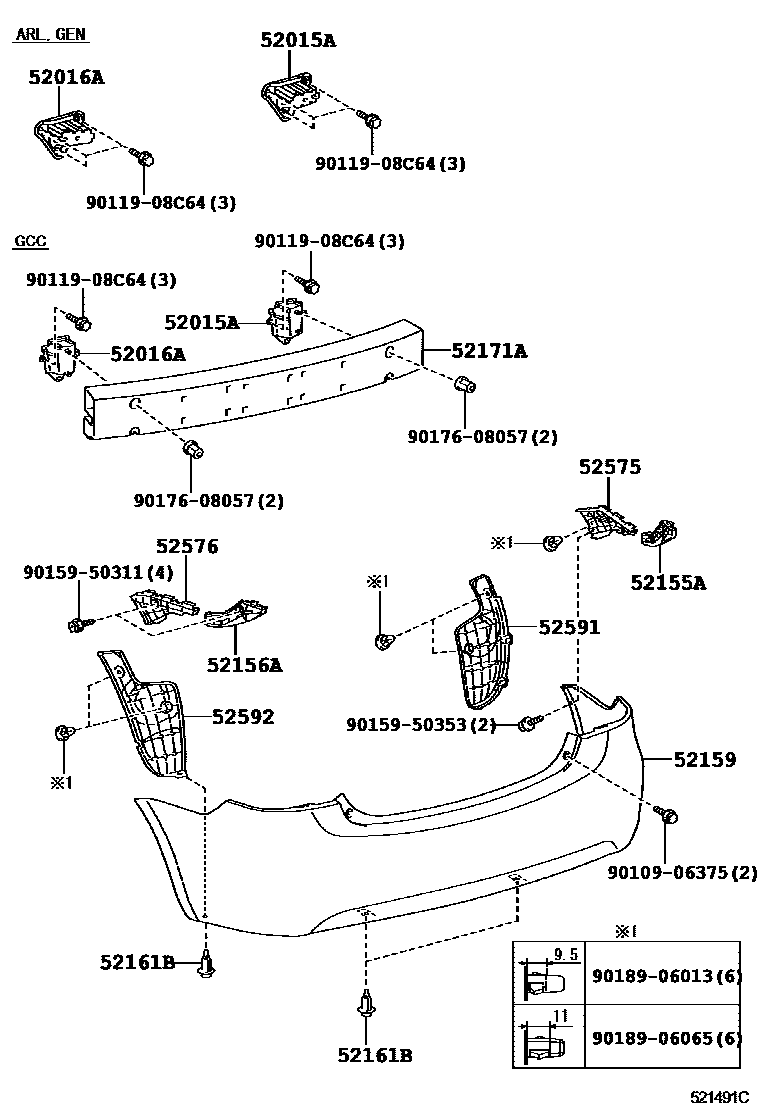

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-52050 · 52015-52070 |
| 52016A | Rear bumper left arm sub-assembly | 52016-52060 · 52016-52080 |
| 52155A | Rear bumper right side bracket | 52155-52090 · 52155-52091 |
| 52156A | Rear bumper left bracket | 52156-52090 · 52156-52091 |
| 52159 | rear bumper cover | 52159-52929 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-52090 |
| 52575 | Rear bumper right side fixing bracket | 52575-52140 · 52575-52141 · 52575-52142 |
| 52576 | Rear bumper left side fixing bracket | 52576-52120 · 52576-52121 · 52576-52122 |
| 52591 | Rear bumper right seal | 52591-52230 |
| 52592 | Rear bumper left seal | 52592-52220 |
