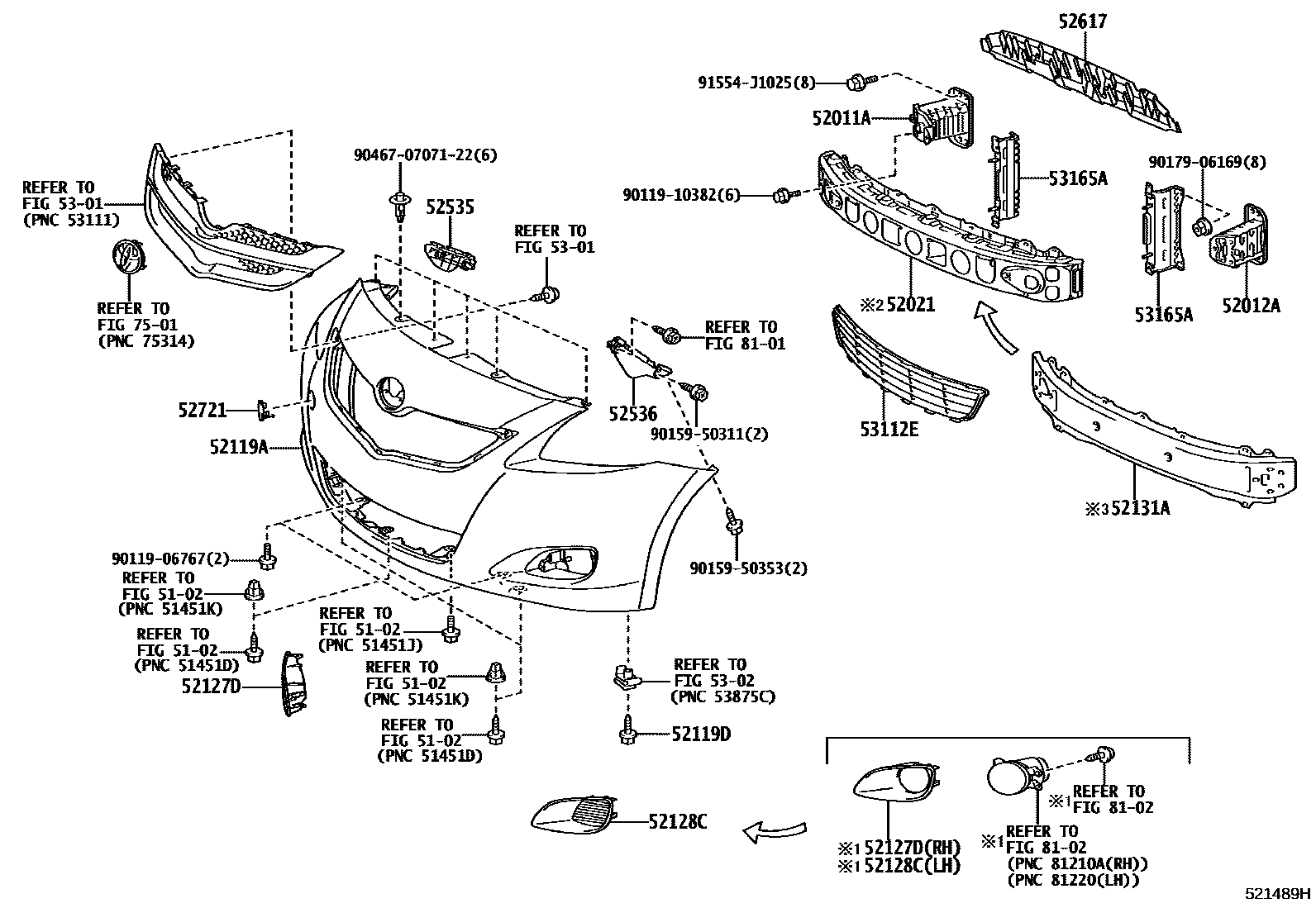

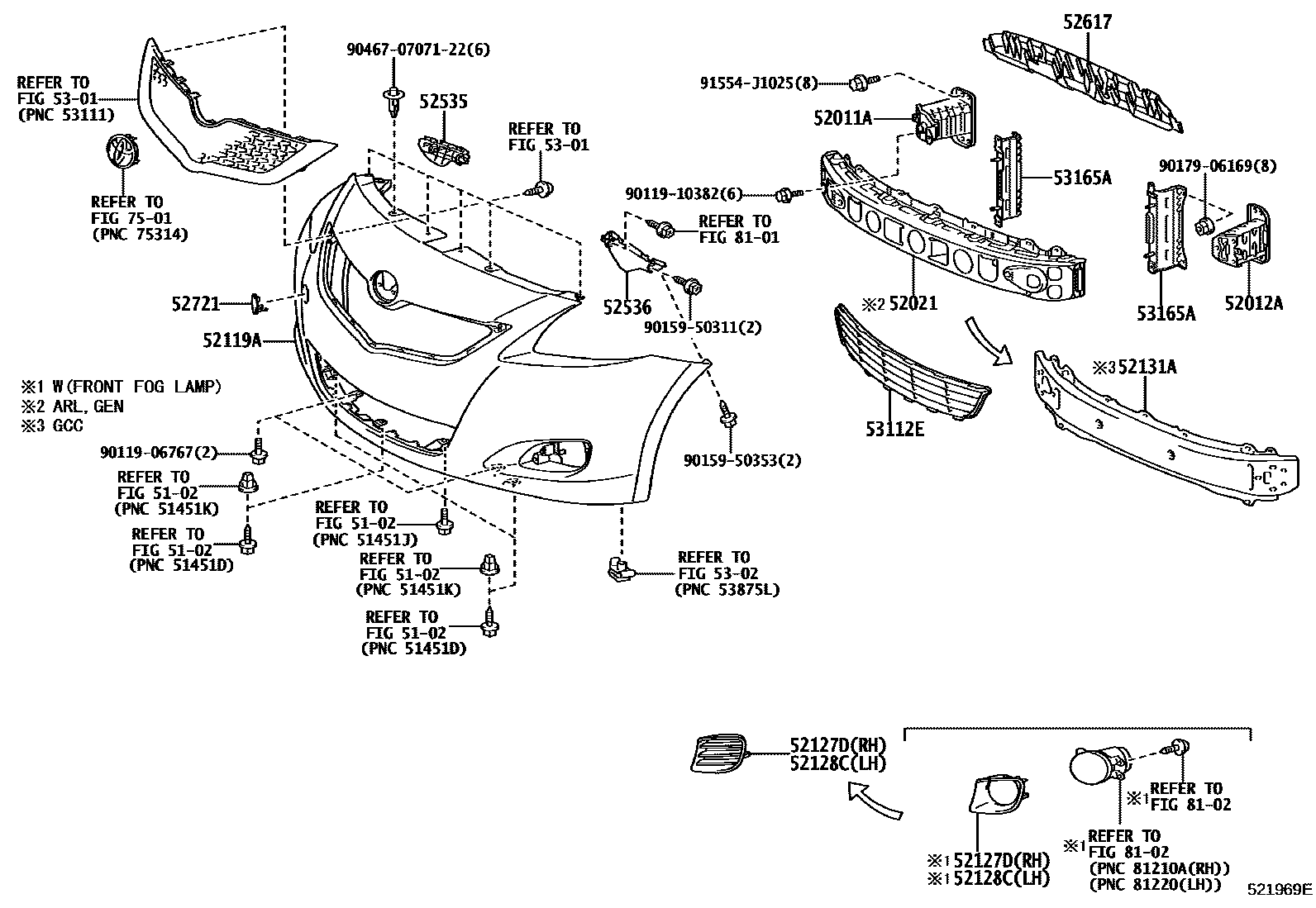

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-52020 · 52011-52021 |
| 52012A | Front bumper left arm sub-assembly | 52012-52020 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-52050 |
| 52119A | front bumper cover | 52119-52934 · 52119-52948 |
| 52119D | Screw No. 1 | 90159-60590 |
| 52127D | Front bumper right hole cover | 52127-52330 · 52127-52360 · 52127-52390 · 52127-52400 |
| 52128C | Front bumper left hole cover | 52128-52080 · 52128-52100 · 52128-52110 · 52128-52130 |
| 52131A | Front bumper reinforcement | 52131-52250 |
| 52535 | Front bumper right side fixing bracket | 52535-52130 · 52535-52131 |
| 52536 | Front bumper left fixed bracket | 52536-52140 · 52536-52141 |
| 52617 | Radiator upper bracket shock absorber | 52617-52030 |
| 52721 | Front bumper right extension protection strip | 52721-52906 |
| 53112E | No. 1 radiator lower grille | 53112-52240 · 53112-52360 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-52020 · 53165-52030 |
