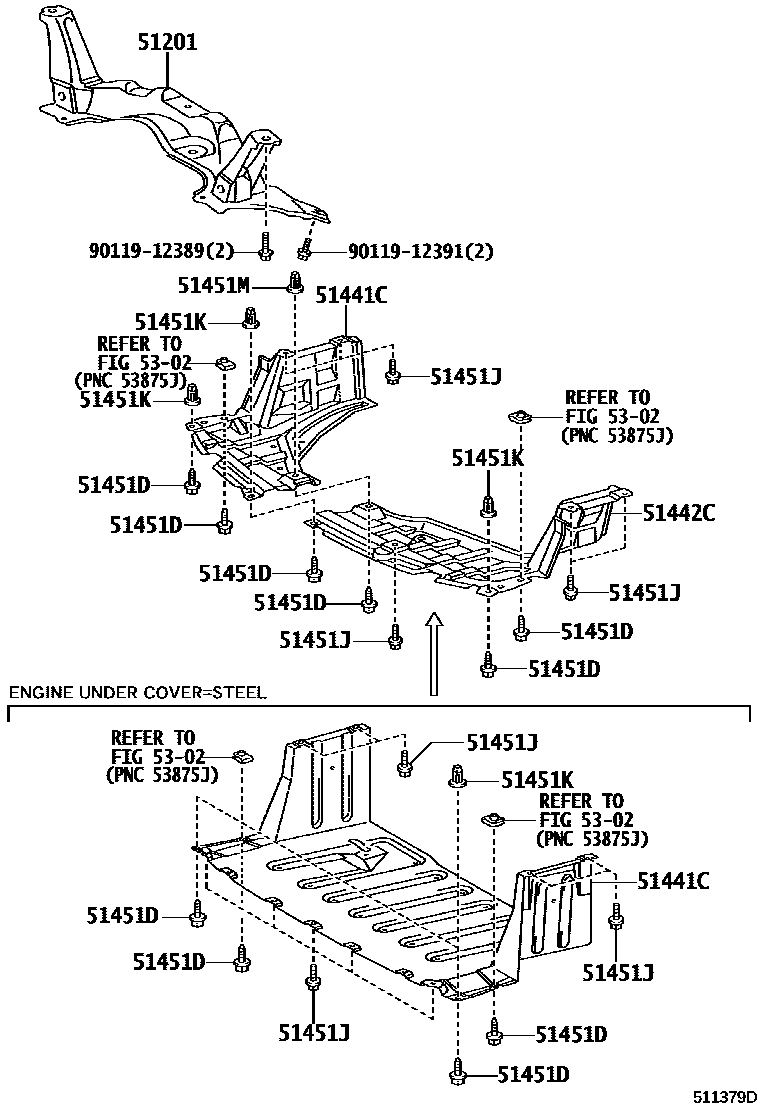

Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102
Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-52080 · 51201-52083 · 51201-52084 · 51201-52085 · 51201-52086 · 51201-52087 · 51201-52090 |
| 51441C | Engine right bottom cover | 51405-52050 · 51408-52010 · 51408-52020 · 51441-52140 · 51441-52141 · 51441-52250 |
| 51442C | Engine left bottom cover | 51409-52010 · 51409-52020 · 51442-52080 · 51442-52081 · 51442-52082 · 51442-52110 |
| 51451D | Screw No. 1 | 90159-60383 |
| 51451J | Bolt No. 1 | 90119-06767 |
| 51451K | No. 1 screw seal | 90189-06076 |
| 51451M | No. 2 screw seal | 90189-06076 |
