Toyota YARIS 制动配管和卡箍 — Figure 4708

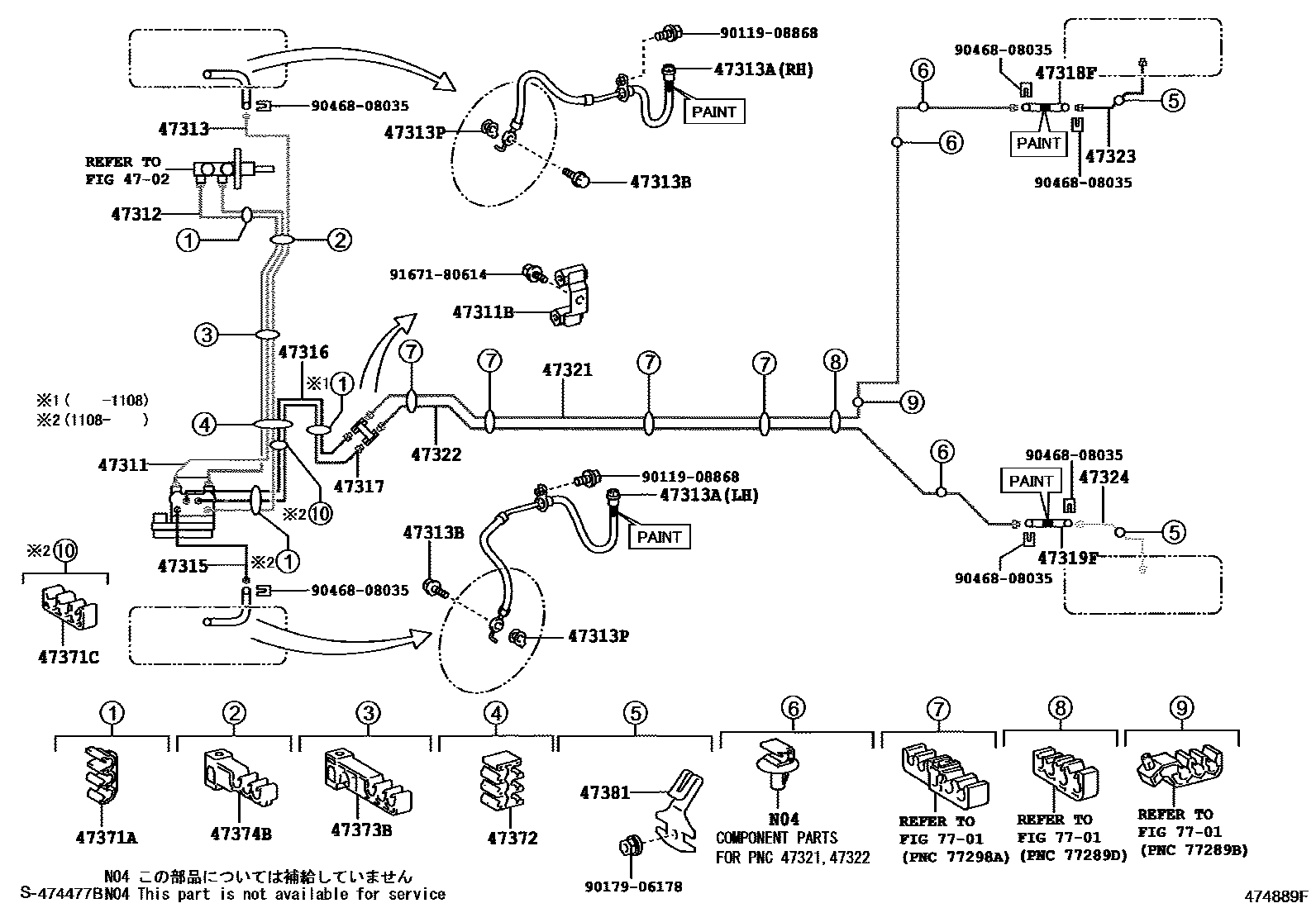

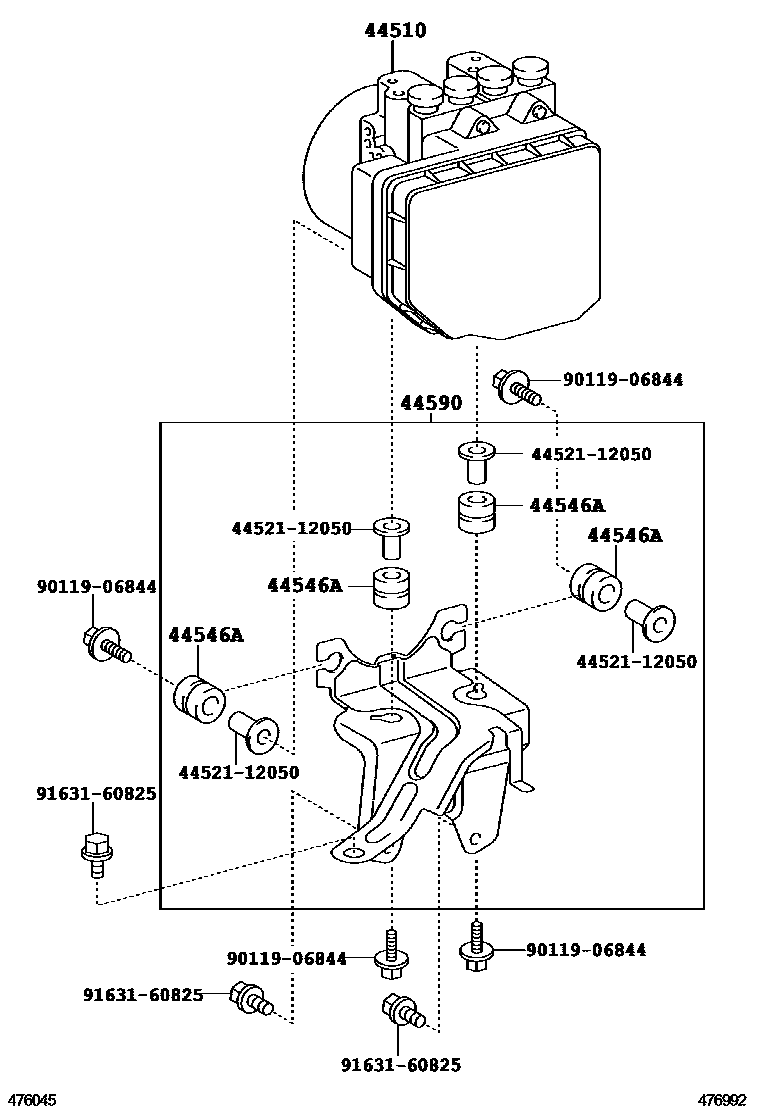

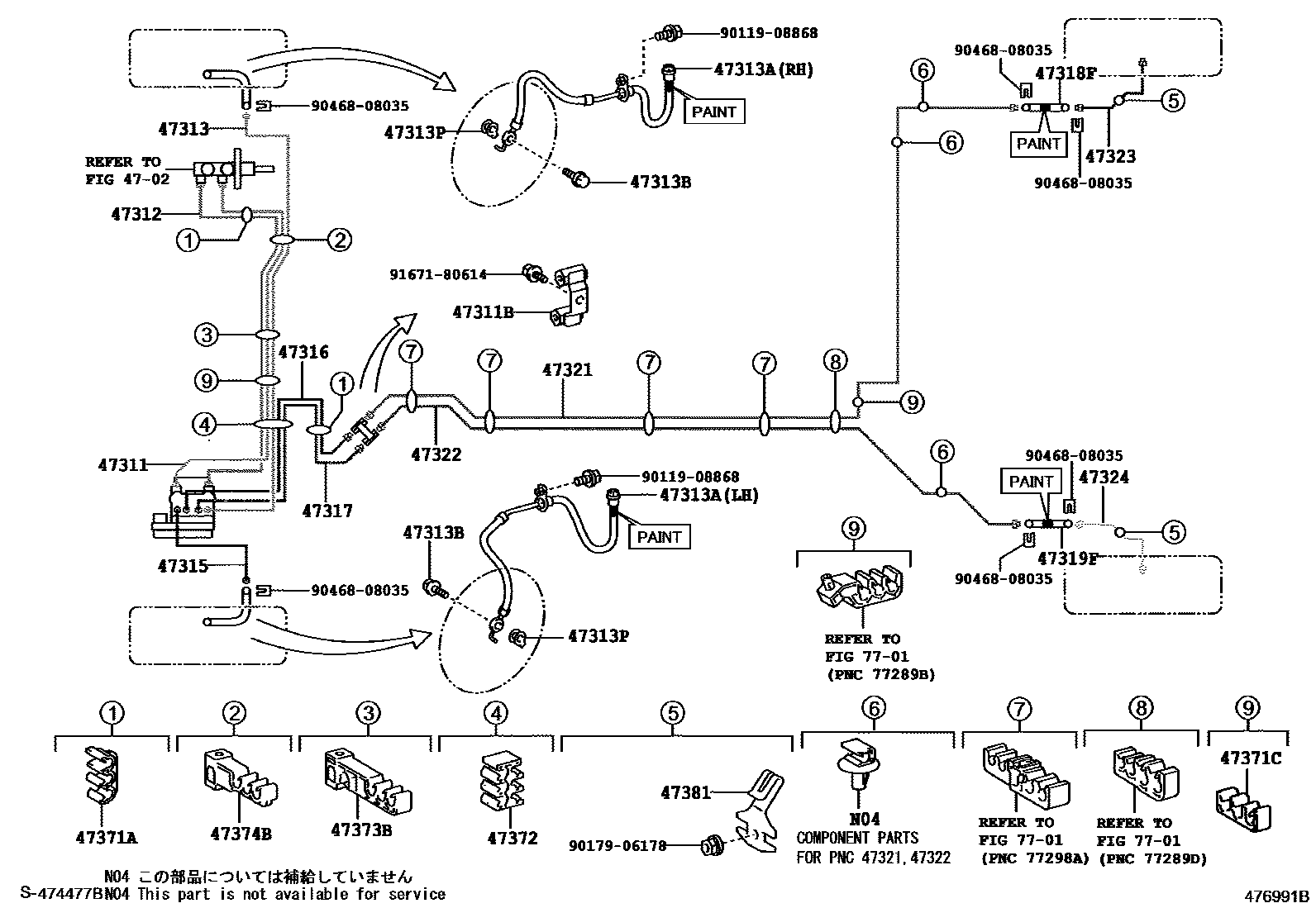

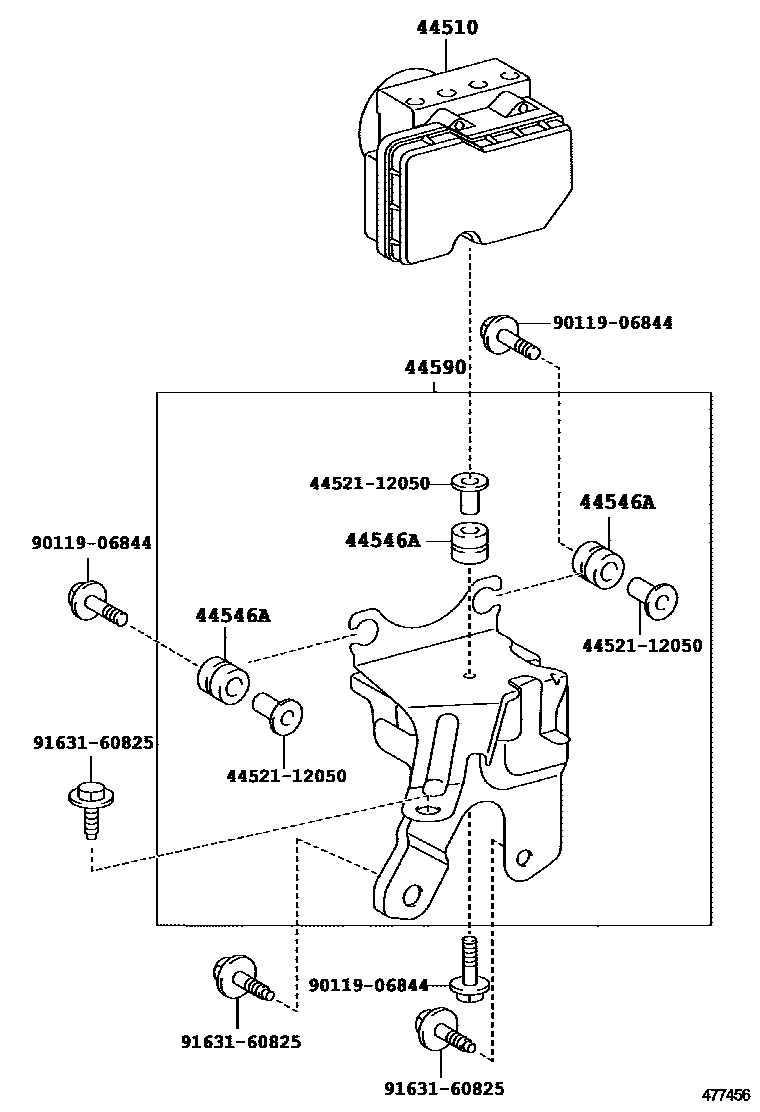

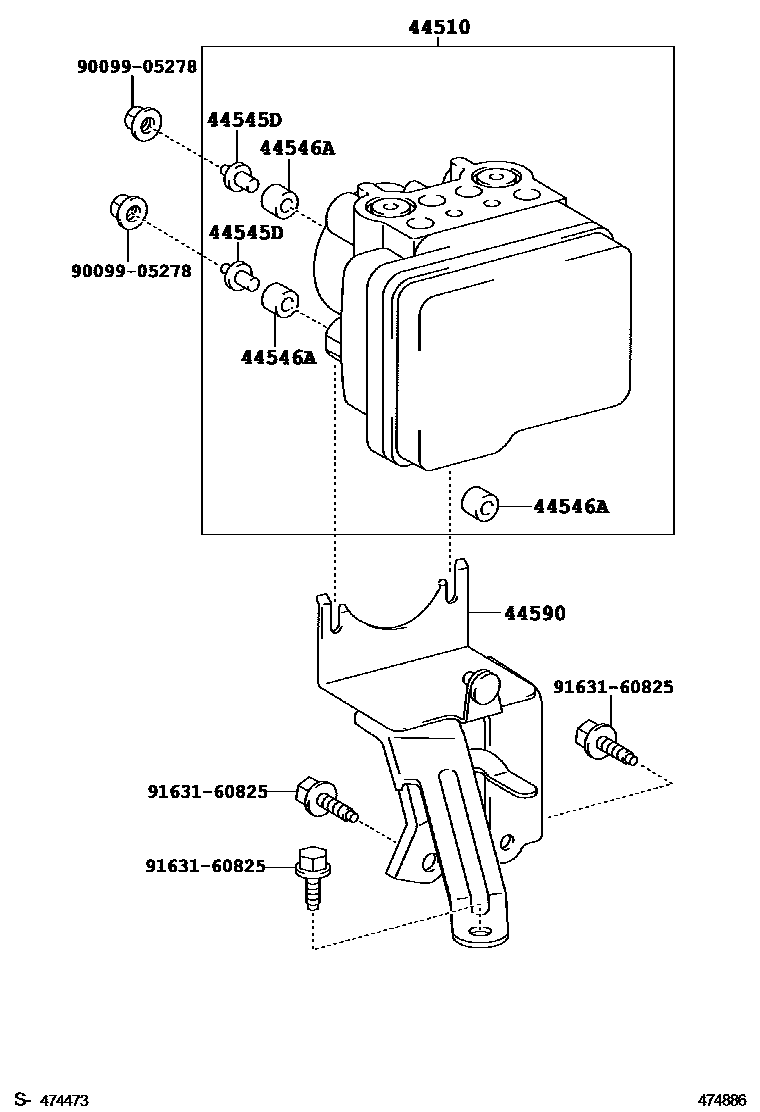

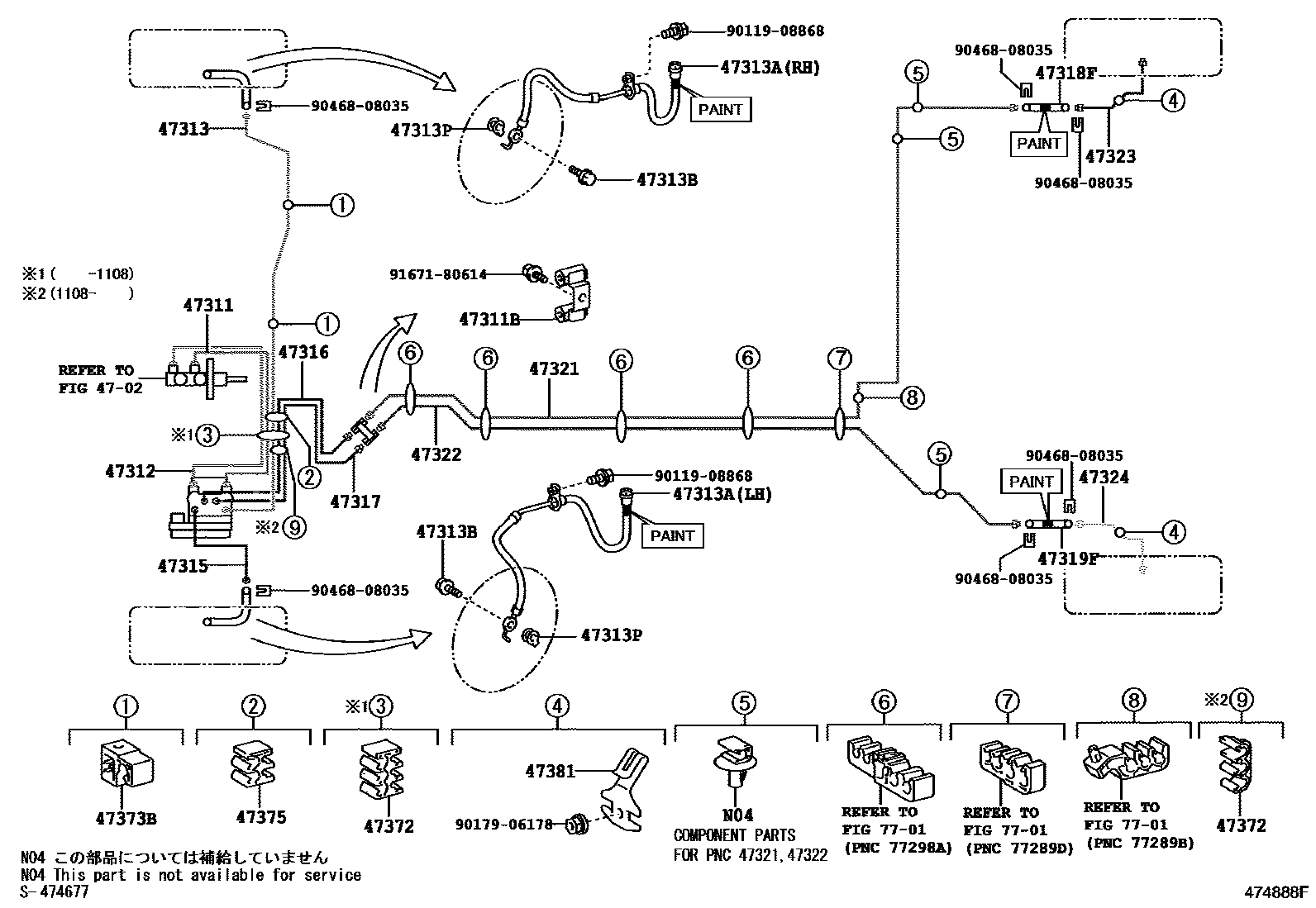

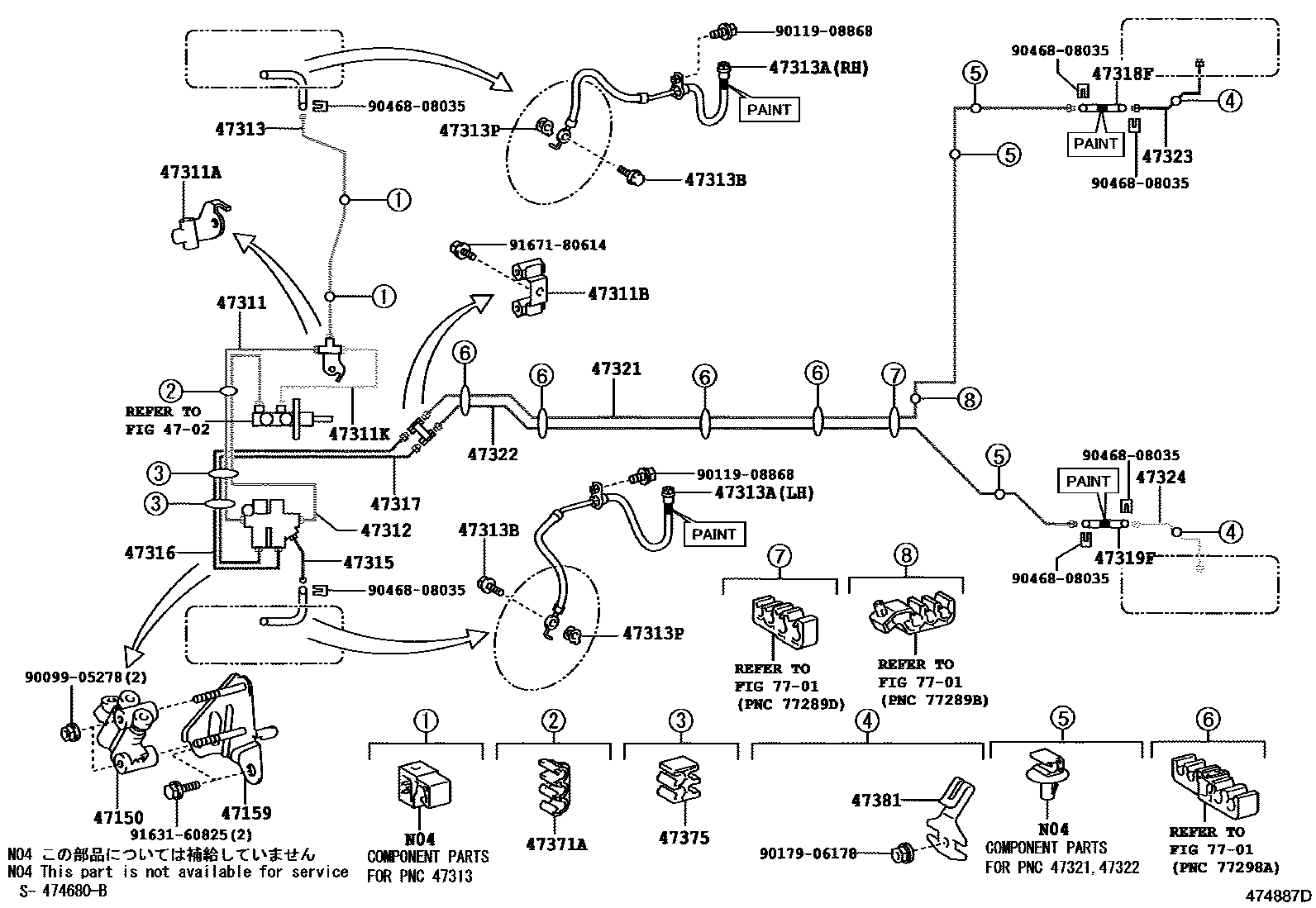

Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 7 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-52690 · 44050-52C40 · 44050-52C41 · 44050-52K10 |
| 44545D | Brake actuator bolt mount | 44545-63010 |
| 44546A | Brake actuator bolt cushion | 44546-12110 · 44546-63010 |
| 44590 | Brake actuator bracket assembly | 44590-52120 · 44590-52130 · 44590-52170 · 44590-52180 · 44590-52190 |
| 47150 | Proportional valve assembly | 47150-10090 |
| 47159 | Proportional valve bracket | 47159-52010 |
| 47311 | No. 1 front brake pipe | 47311-52221 · 47311-52240 · 47311-52260 · 47311-52370 · 47311-52390 · 47311-52450 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10314 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-52270 |
| 47312 | No. 2 front brake pipe | 47312-52201 · 47312-52220 · 47312-52240 · 47312-52330 · 47312-52350 · 47312-52400 |
| 47313 | No. 3 front brake pipe | 47313-52110 · 47313-52130 · 47313-52150 · 47313-52160 · 47313-52170 · 47313-52171 · 47313-52190 |
| 47313A | No. 1 front flexible hose | 90947-02E07 · 90947-02E08 · 90947-02G34 · 90947-02G35 · 90947-02H35 · 90947-02H36 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47315 | No. 5 front brake pipe | 47315-52140 · 47315-52160 · 47315-52180 · 47315-52190 · 47315-52200 · 47315-52201 · 47315-52210 |
| 47316 | No. 6 front brake pipe | 47316-52100 · 47316-52120 · 47316-52140 · 47316-52150 · 47316-52160 · 47316-52180 |
| 47317 | No. 7 front brake pipe | 47317-52100 · 47317-52120 · 47317-52140 · 47317-52150 · 47317-52160 · 47317-52180 |
| 47318F | Right rear flexible hose | 90947-02E09 · 90947-02G36 · 90947-02H31 |
| 47319F | Left rear flexible hose | 90947-02E10 · 90947-02G38 · 90947-02H32 |
| 47321 | No. 1 rear brake pipe | 47321-52320 · 47321-52321 |
| 47322 | No. 2 rear brake pipe | 47322-52300 · 47322-52301 |
| 47323 | No. 3 rear brake pipe | 47323-52100 · 47323-52101 |
| 47324 | No. 4 rear brake pipe | 47324-52090 · 47324-52091 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 |
| 47371C | No. 7 brake pipe clamp | 90464-00857 |
| 47372 | No. 2 brake pipe clamp | 90464-00868 · 90949-01969 |
| 47373B | No. 3 brake pipe clamp | 90949-01C82 · 90949-01D27 |
| 47374B | No. 4 brake pipe clamp | 90949-01D02 |
| 47375 | No. 5 brake pipe clamp | 90464-00883 · 90949-01969 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-52020 |
