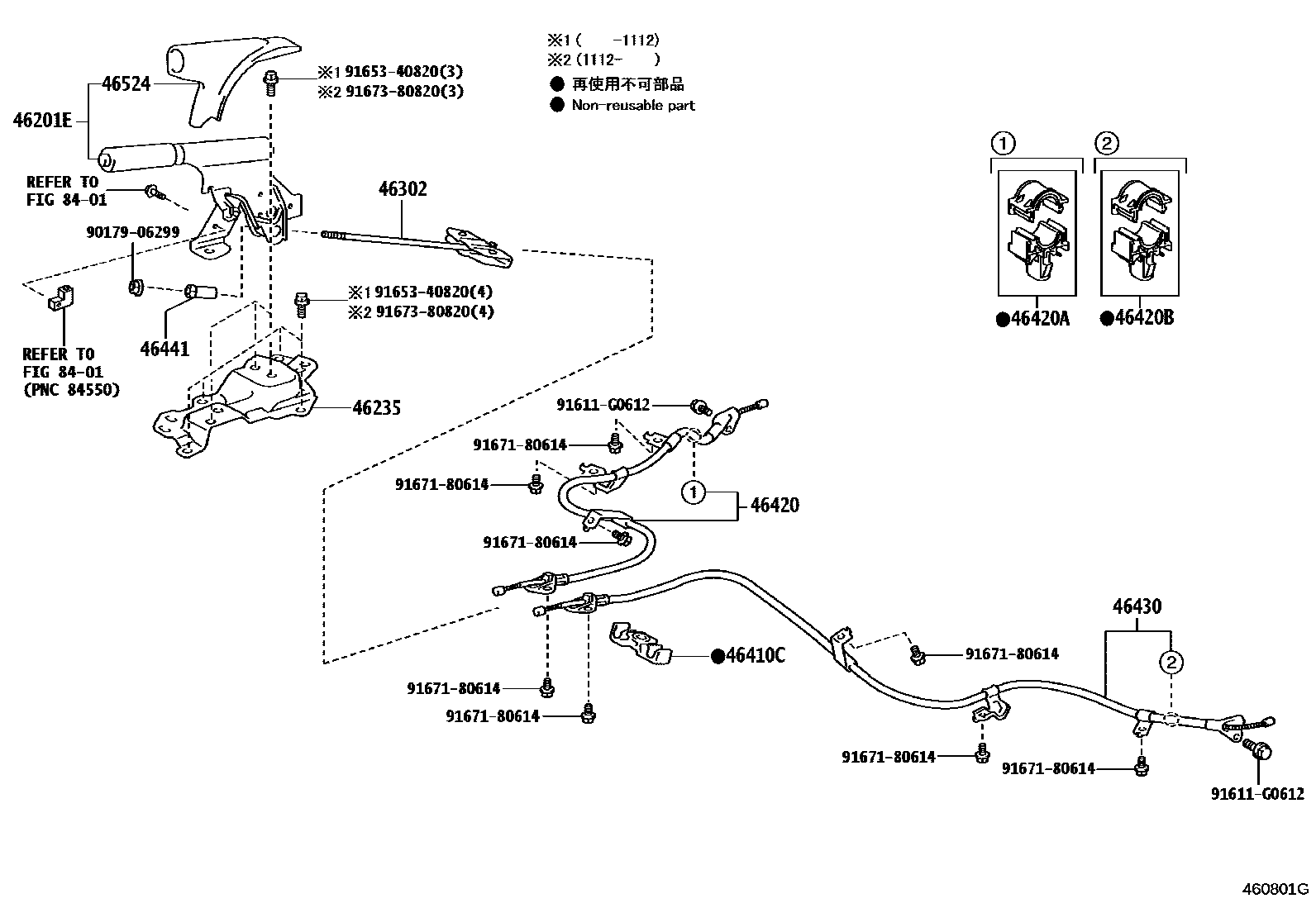

Toyota YARIS Parking Brake & Cable — Figure 4601
Toyota YARIS EPC diagram 4601, Parking Brake & Cable, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46235 | Parking brake lever bracket | 46235-52020 |
| 46302 | No. 1 parking brake lever sub-assembly | 46302-52030 |
| 46410C | Clip (for front parking brake cable) | 46411-52030 |
| 46420 | Parking brake No. 2 cable assembly | 46420-52210 · 46420-52211 |
| 46420A | Clamp No. 1 (for parking brake cable) | 46402-52010 · 46402-52030 |
| 46420B | Clamp No. 2 (for parking brake cable) | 46402-52010 · 46402-52030 |
| 46430 | Parking brake No. 3 cable assembly | 46430-52210 |
| 46441 | No. 1 cable adjustment nut | 46441-52010 |
| 46524 | Parking brake dust cover | 46524-52020 |
