Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references

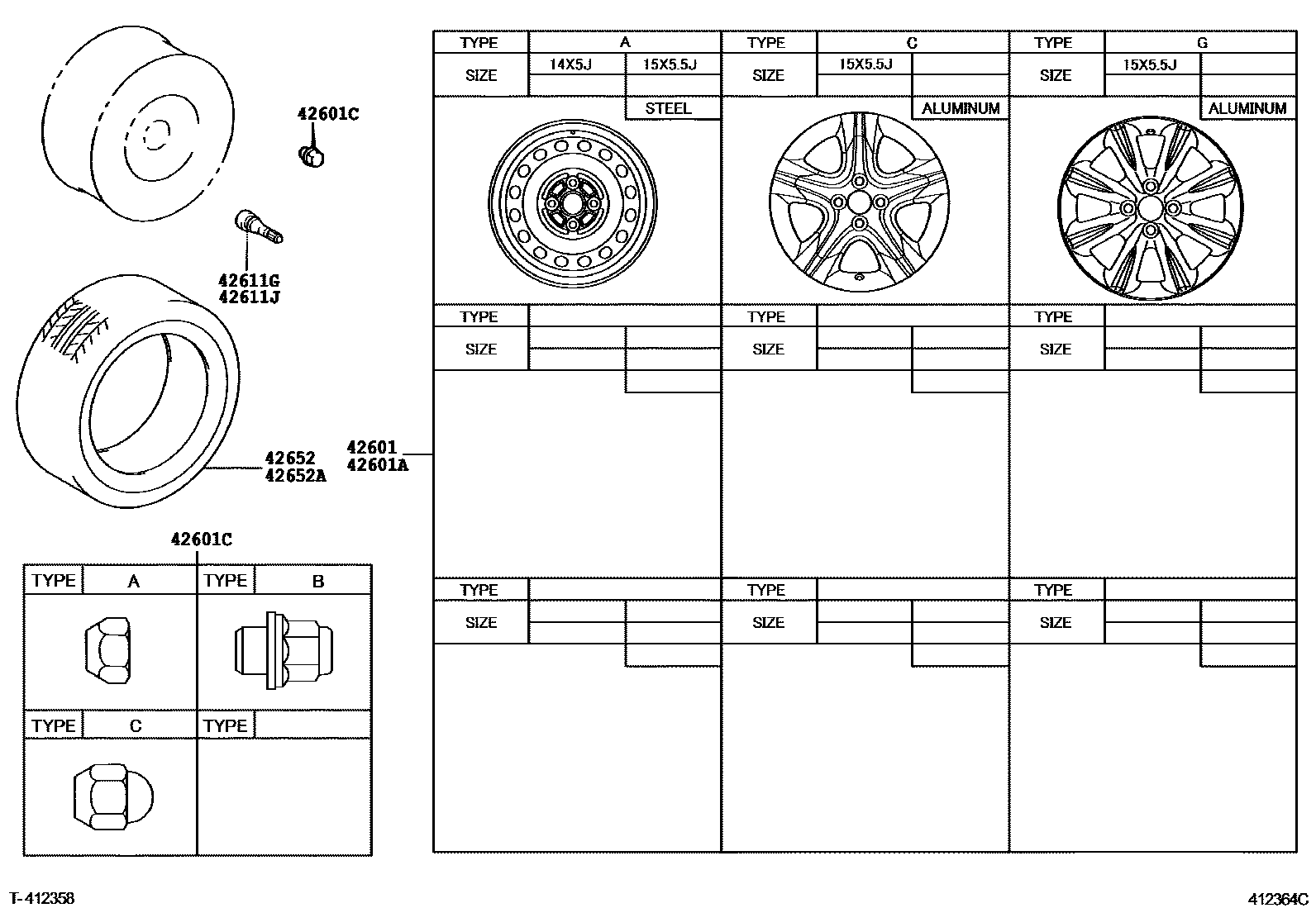

| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-52490 · 42611-52491 · 42611-52492 · 42611-52493 · 42611-52500 · 42611-52501 · 42611-52502 · 42611-52503 · 42611-52510 · 42611-52511 · 42611-52530 |
| 42601A | Spoke wheel (for spare tire) | 42611-52490 · 42611-52491 · 42611-52492 · 42611-52493 · 42611-52500 · 42611-52501 · 42611-52502 · 42611-52503 · 42611-52510 · 42611-52511 · 42611-52530 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |

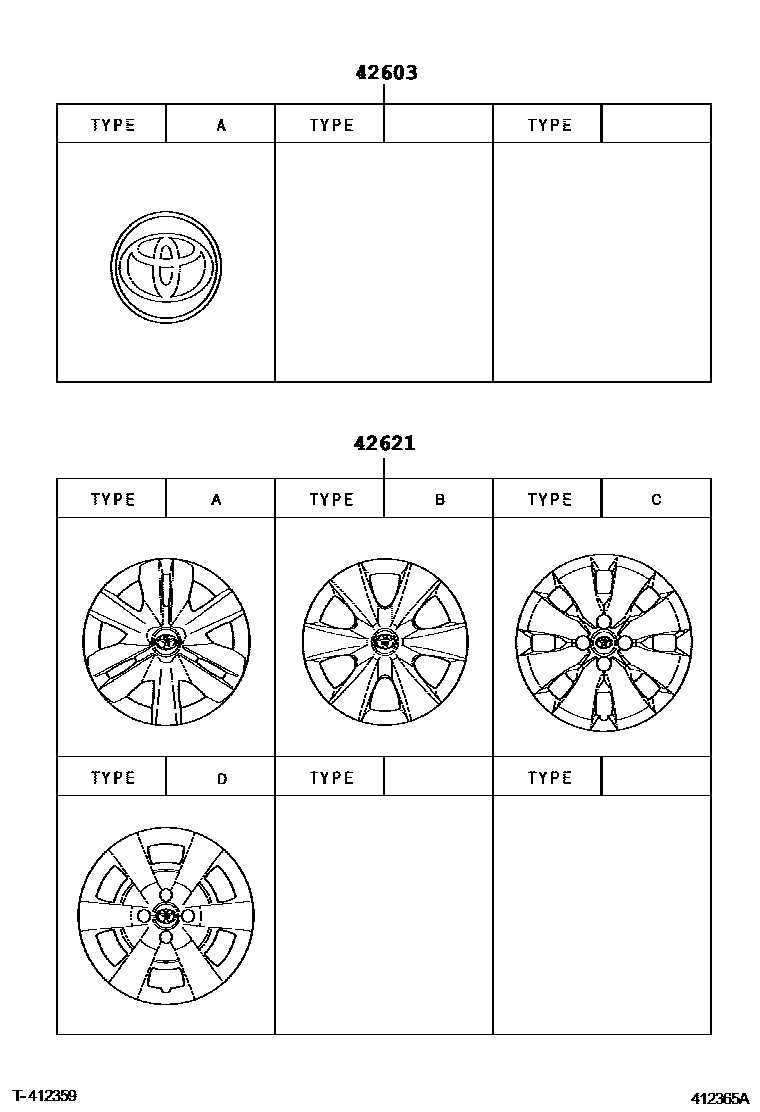

| 42603 | Wheel hub decorative parts sub-assembly | 42603-52110 · 42603-52150 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-52310 · 42602-52320 · 42602-52400 · 42602-52410 |
| 42652 | tires | 42652-52520 · 42652-52610 · 42652-52670 · 42652-52671 · 42652-52680 · 42652-52681 · 42652-52710 |
| 42652A | Tire (for Spare Wheel) | 42652-52520 · 42652-52610 · 42652-52670 · 42652-52671 · 42652-52680 · 42652-52681 · 42652-52710 |
