Toyota YARIS 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

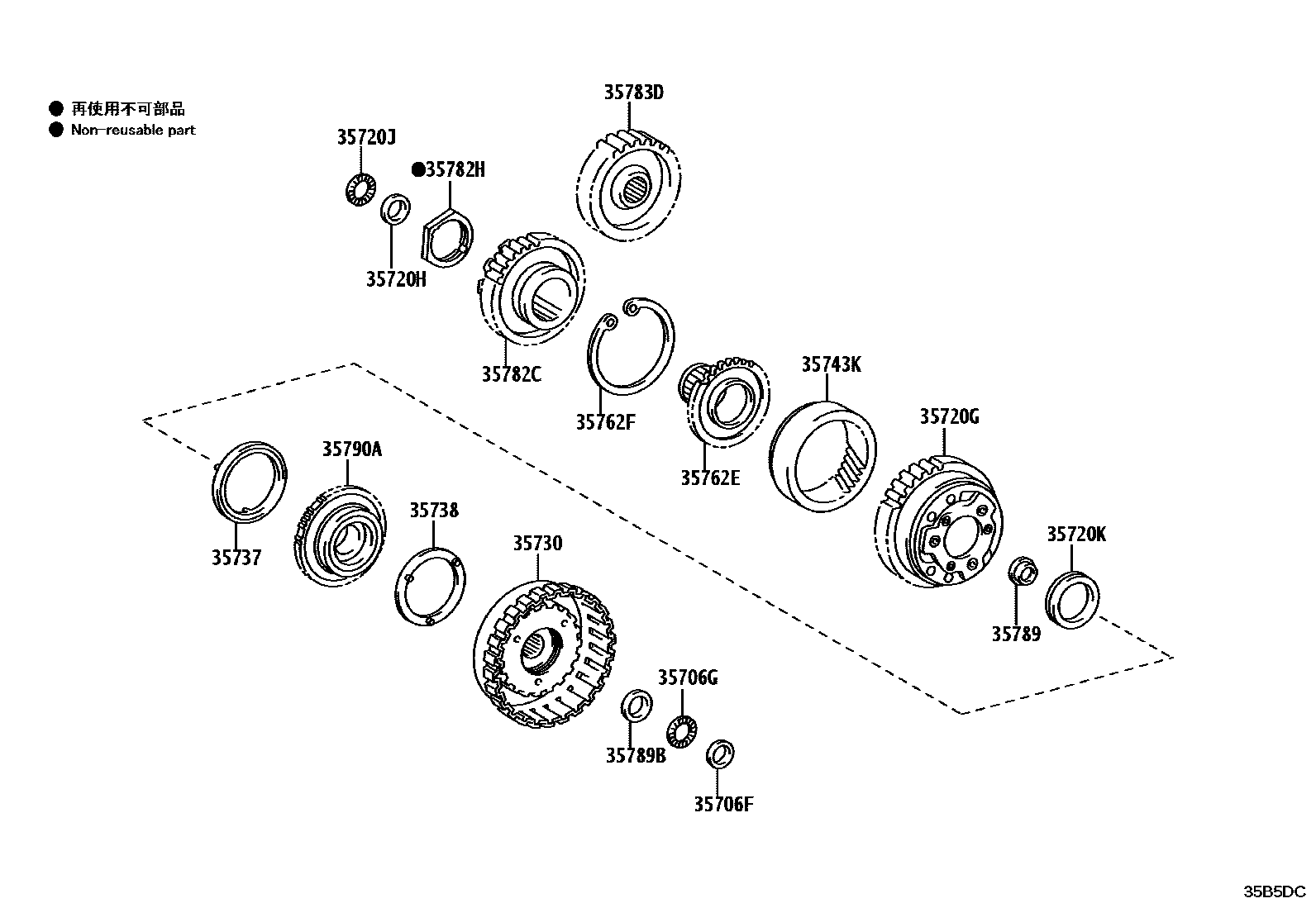

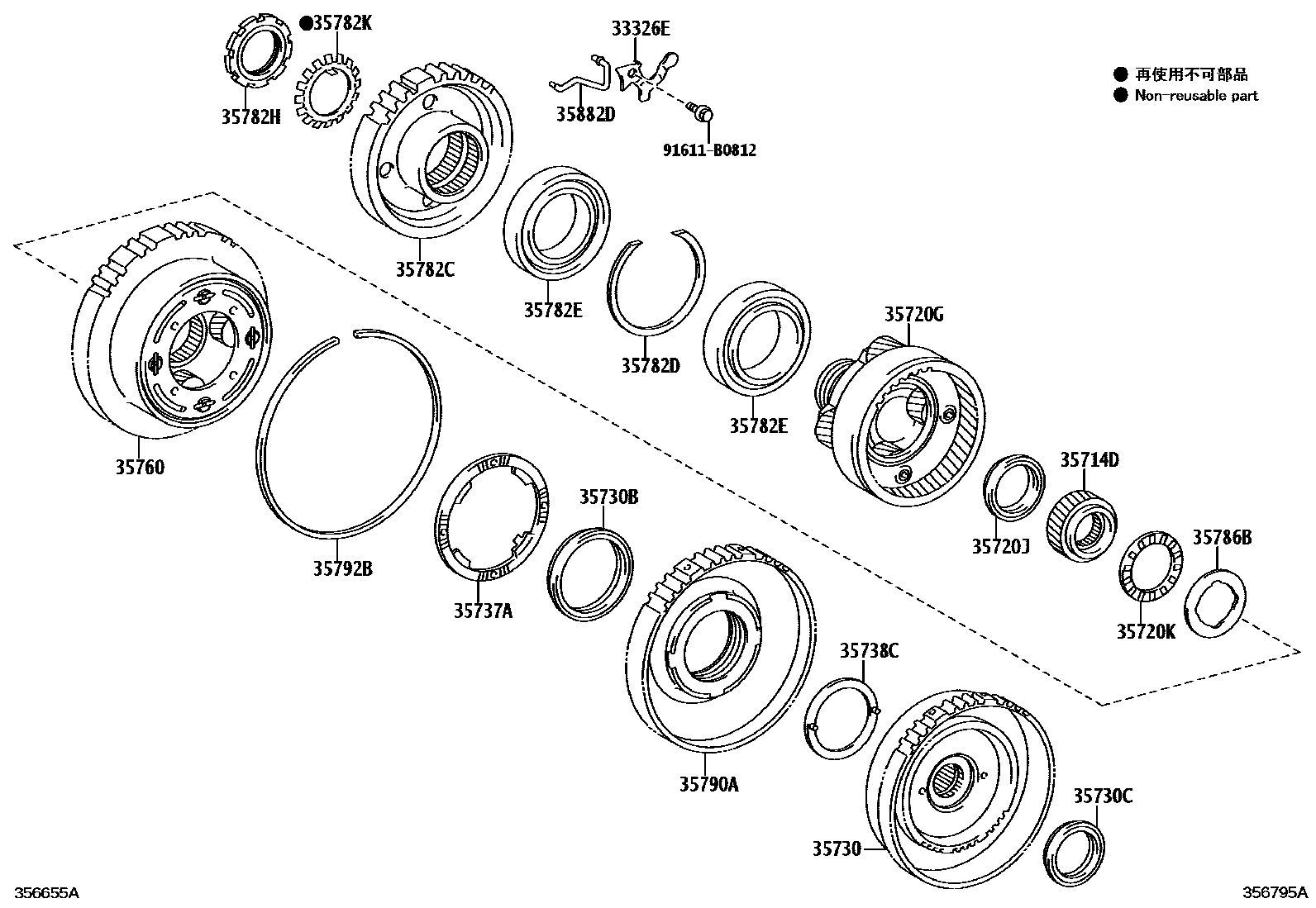

Toyota YARIS EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33326E | Bearing locking plate | 33326-52010 |
| 35706F | Rear thrust bearing race (for sun gear) | 35789-52050 |
| 35706G | Rear thrust bearing (for sun gear) | 90374-18004 |
| 35714D | Front planetary gear train sun gear | 35714-52020 |
| 35720G | Planetary gear assembly | 35720-52010 · 35720-52021 · 35720-52022 · 35720-52070 |
| 35720H | Thrust bearing race (for planetary gears) | 35789-52010 |
| 35720J | Front thrust needle roller bearing (for planetary gears) | 90374-17001 · 90374-33006 |
| 35720K | Rear thrust needle roller bearing (for planetary gears) | 90374-33007 · 90374-42006 |
| 35730 | Rear planetary gear train sun gear assembly | 35730-52010 · 35730-52020 |
| 35730B | Thrust needle roller bearing (for rear planetary gear train sun gear) | 90374-43003 |
| 35730C | Thrust needle roller bearing (for No. 2 rear planetary gear train sun gear) | 90374-29002 |
| 35737 | Planetary gear carrier thrust washer | 35737-52010 |
| 35737A | No. 1 planetary gear carrier thrust washer | 35737-52020 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-52020 |
| 35738C | No. 2 planetary gear carrier thrust washer | 35738-52010 |
| 35743K | Planetary ring gear | 35743-52010 |
| 35760 | Rear planetary gear assembly | 35760-52011 |
| 35762E | Planetary ring gear flange | 35762-52010 |
| 35762F | Hole snap ring (for planetary ring gear) | 90520-89003 |
| 35782C | countershaft driving gear | 35782-52020 · 35782-52030 |
| 35782D | Hole snap ring (for countershaft drive gear) | 90520-83001 |
| 35782E | Bearings (for countershaft drive gear) | 90363-52002 · 90363-52005 |
| 35782H | Nut (for countershaft drive gear) | 90179-40009 · 90179-44001 |
| 35782K | Lock washer (for countershaft drive gear lock nut) | 90215-40002 |
| 35783D | countershaft driven gear | 35783-52030 |
| 35786B | No. 2 thrust bearing race | 35787-52010 |
| 35789 | Front thrust bearing race (for front planetary gear flange) | 35789-52020 |
| 35789B | Rear thrust bearing race (for front planetary gear flange) | 35789-52040 |
| 35790A | One-way clutch assembly | 35790-52010 · 35790-52020 |
| 35792B | Hole snap ring (for No. 2 one-way clutch) | 90520-99053 |
| 35882D | Differential gear lubricant oil supply pipe | 35882-52020 |
