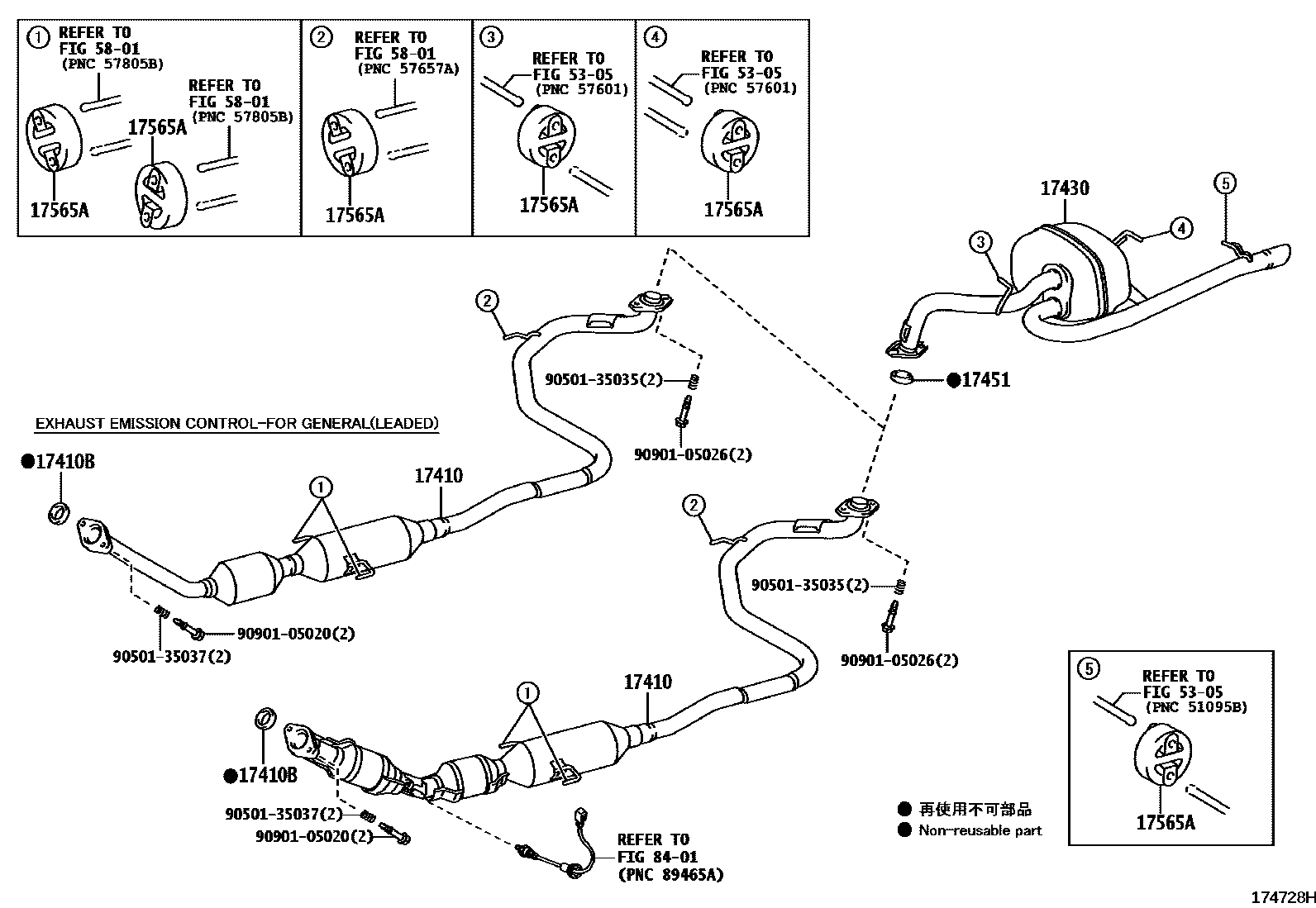

Toyota YARIS Exhaust Pipe — Figure 1702
Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-21680 · 17410-21681 · 17410-21690 · 17410-21691 · 17410-21700 · 17410-21701 |
| 17410B | Exhaust pipe gasket | 17451-21070 |
| 17430 | Exhaust tailpipe assembly | 17430-21640 · 17430-21641 · 17430-21642 |
| 17451 | Exhaust pipe gasket | 17451-23040 · 17451-23041 · 17451-23042 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-40010 · 17565-47010 |
