Toyota YARIS antenna — Figure 8604

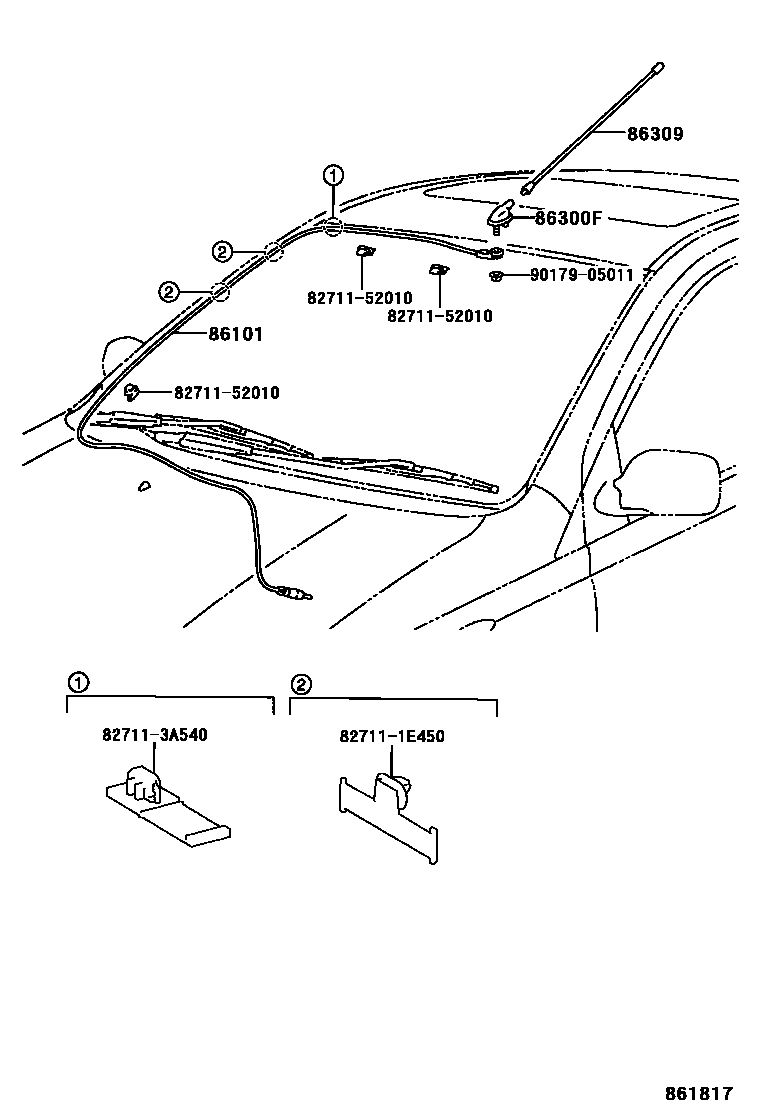

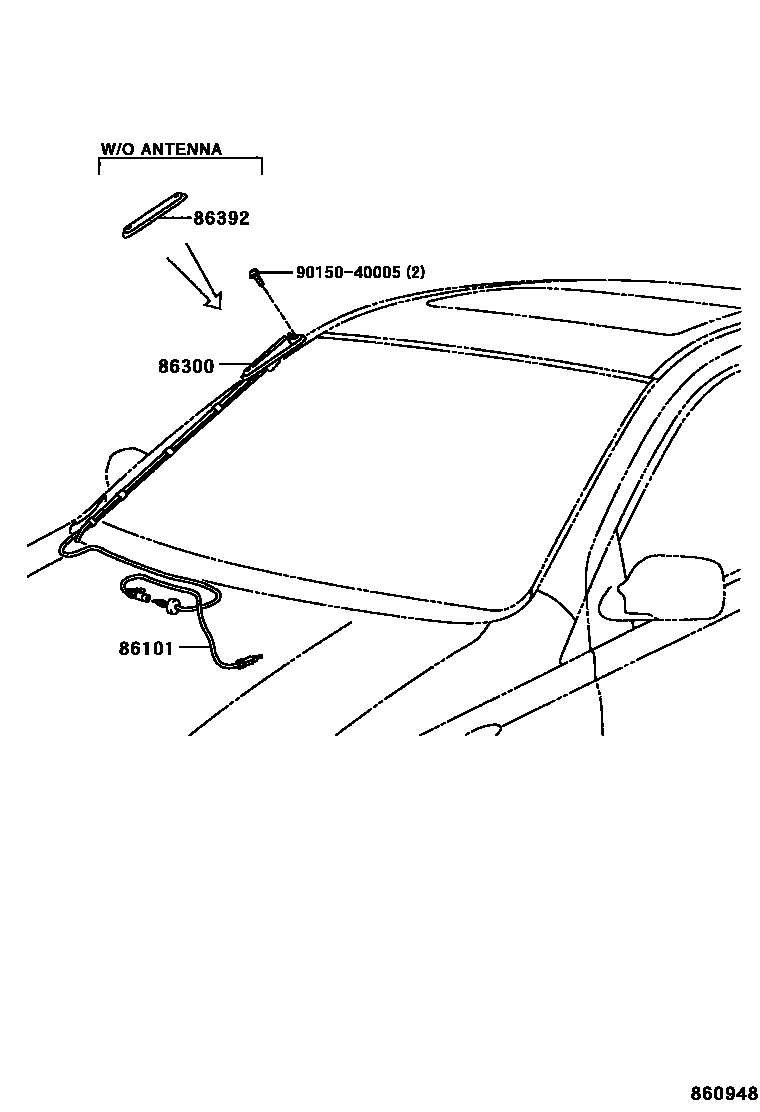

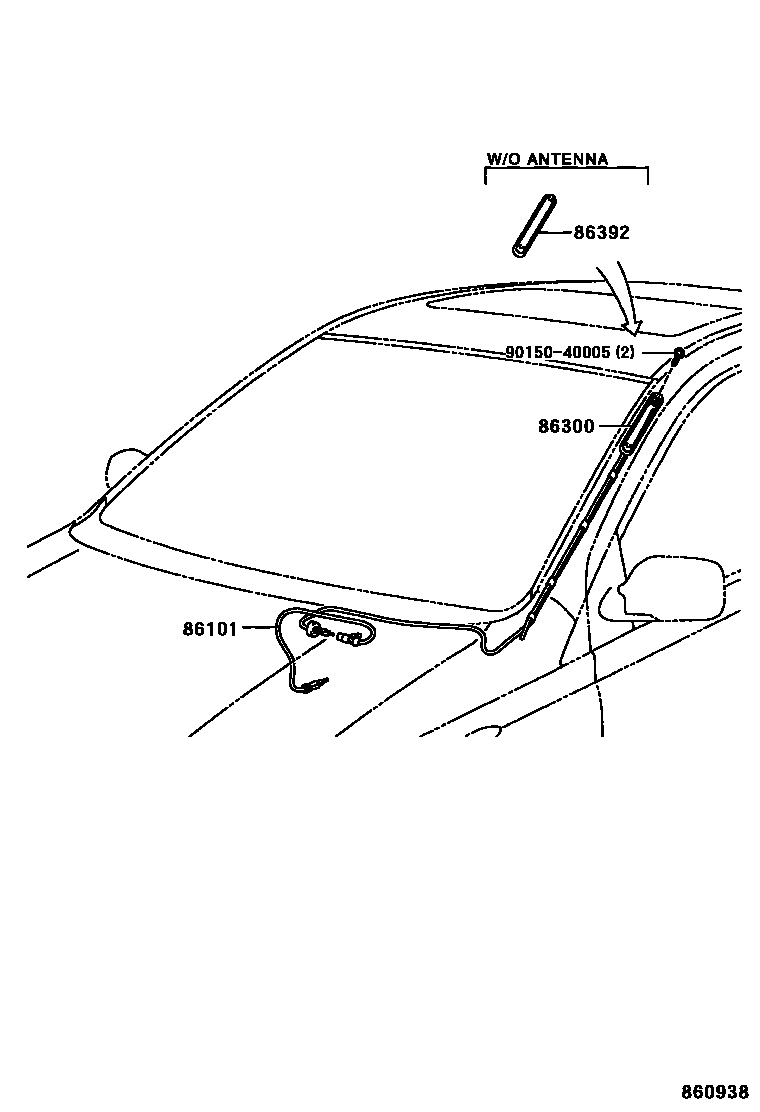

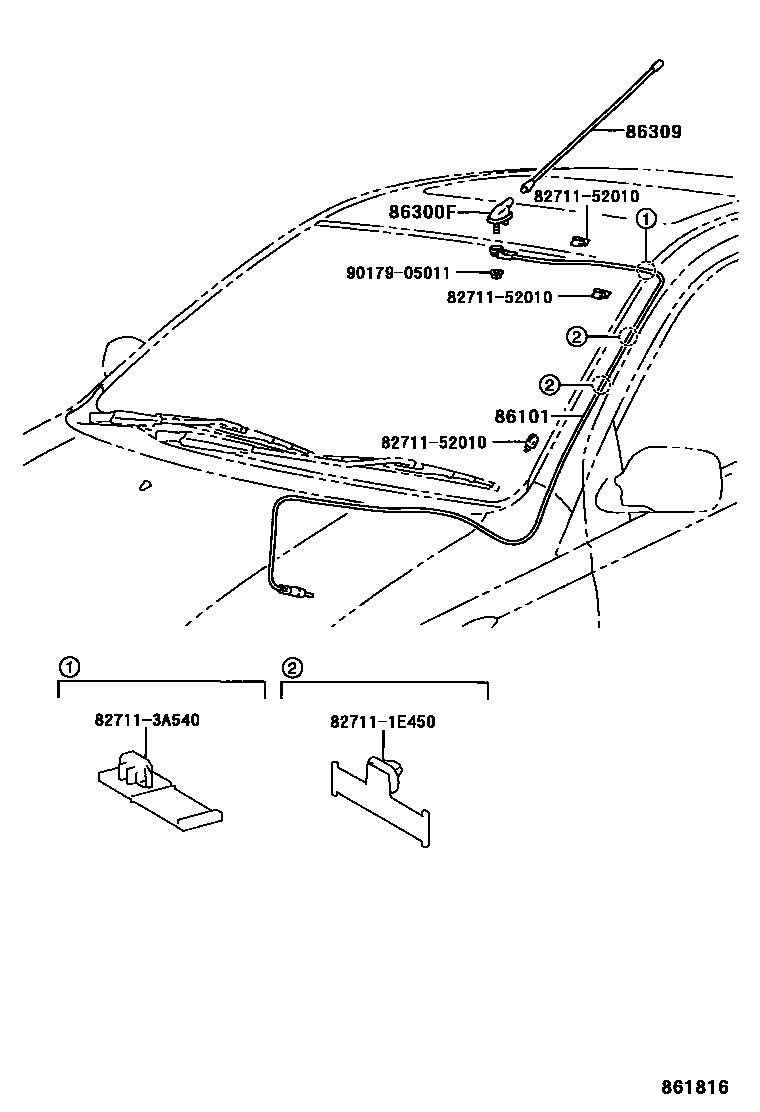

Toyota YARIS EPC diagram 8604, antenna, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0W010 · 86101-0W020 · 86101-52030 |
| 86300 | Antenna assembly with fixing parts | 86300-52030 |
| 86300F | Antenna fixing assembly (wire/antenna mast separation type) | 86300-0W020 |
| 86309 | Cylindrical antenna sub-assembly | 86309-0W040 |
| 86392 | Antenna decorative parts | 86392-10010 |
