Toyota YARIS 后组合灯 — Figure 8111

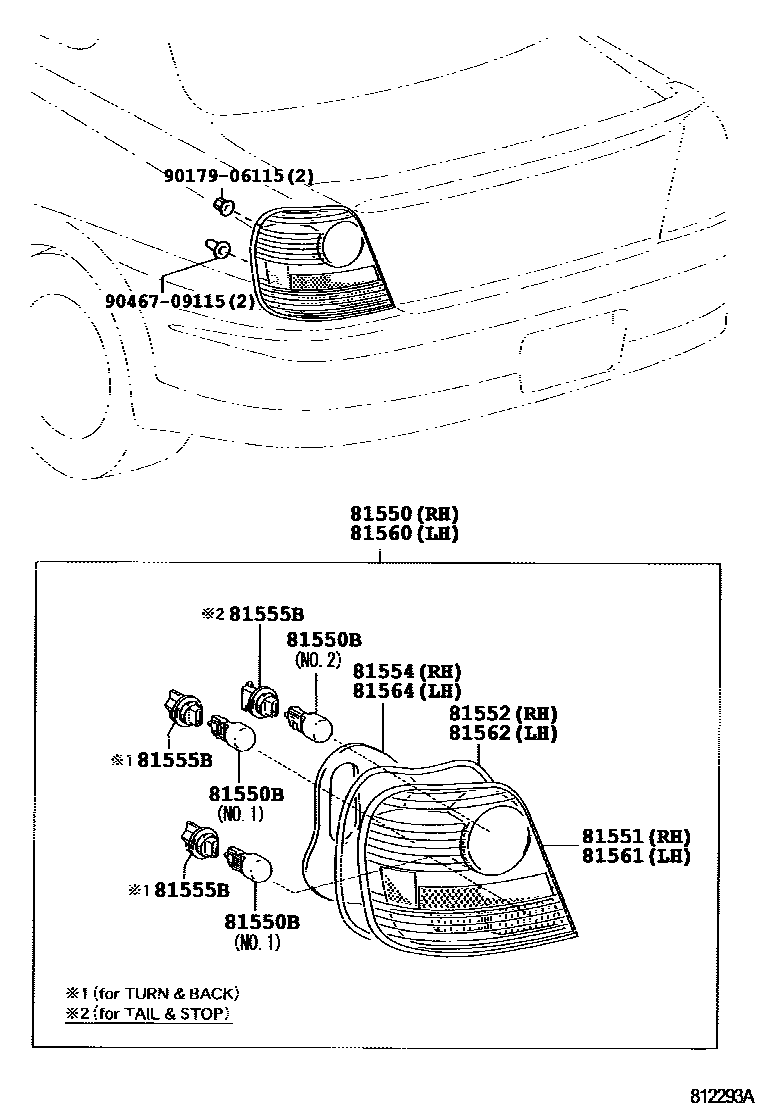

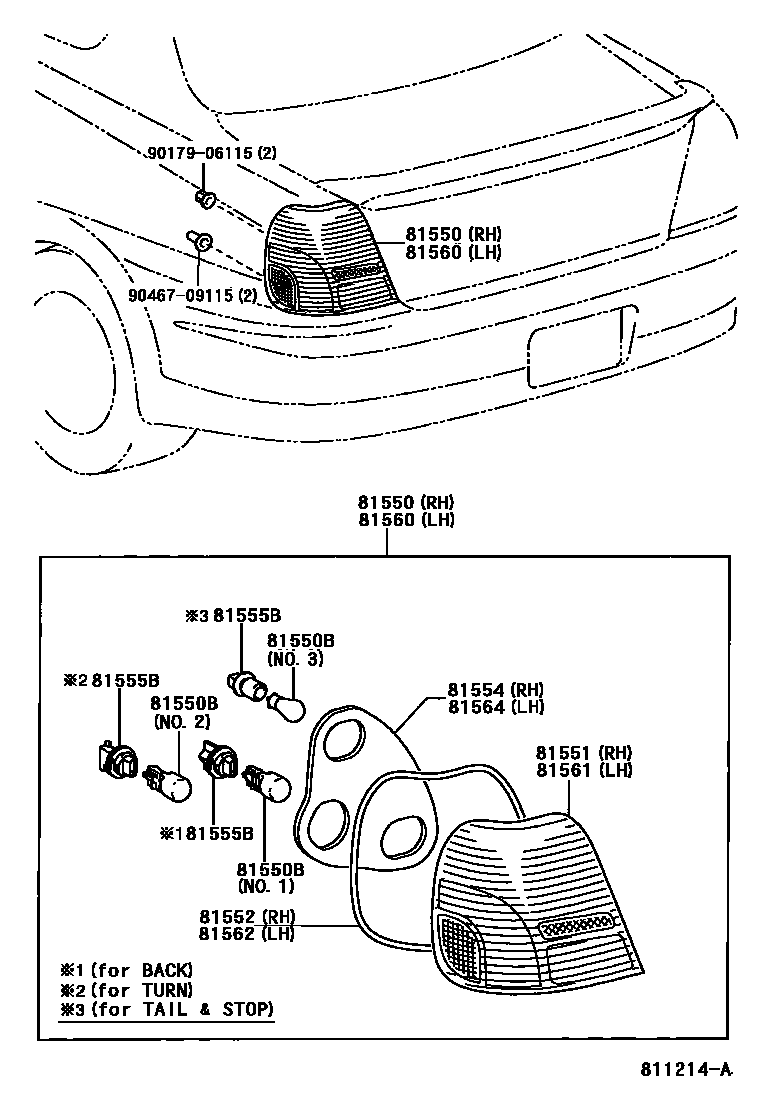

Toyota YARIS EPC diagram 8111, 后组合灯, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-52070 · 81550-52071 · 81550-52100 · 81550-52330 |
| 81550B | Bulb (for rear combination lights) | 90981-11048 · 90981-13043 · 90981-13044 · 90981-15011 |
| 81551 | Right rear combination lamp shade | 81551-52070 · 81551-52071 · 81551-52100 · 81551-52330 |
| 81552 | Right rear combination lamp shade gasket | 81552-52070 · 81552-52310 |
| 81554 | Right rear combination lamp body gasket | 81554-52070 · 81554-52310 |
| 81555B | No. 1 lamp holder plug | 90075-60015 · 90075-60017 · 90075-60027 · 90075-60044 |
| 81560 | Left rear combination light assembly | 81560-52060 · 81560-52061 · 81560-52090 · 81560-52310 |
| 81561 | Left rear combination lamp shade | 81561-52060 · 81561-52061 · 81561-52090 · 81561-52310 |
| 81562 | Left rear combination lamp shade gasket | 81552-52070 · 81552-52310 |
| 81564 | Left rear combination lamp body gasket | 81564-52060 · 81564-52290 |
