Toyota YARIS Fog Lamp — Figure 8102

Toyota YARIS EPC diagram 8102, Fog Lamp, with 1 images and 4 PNC and OE references.

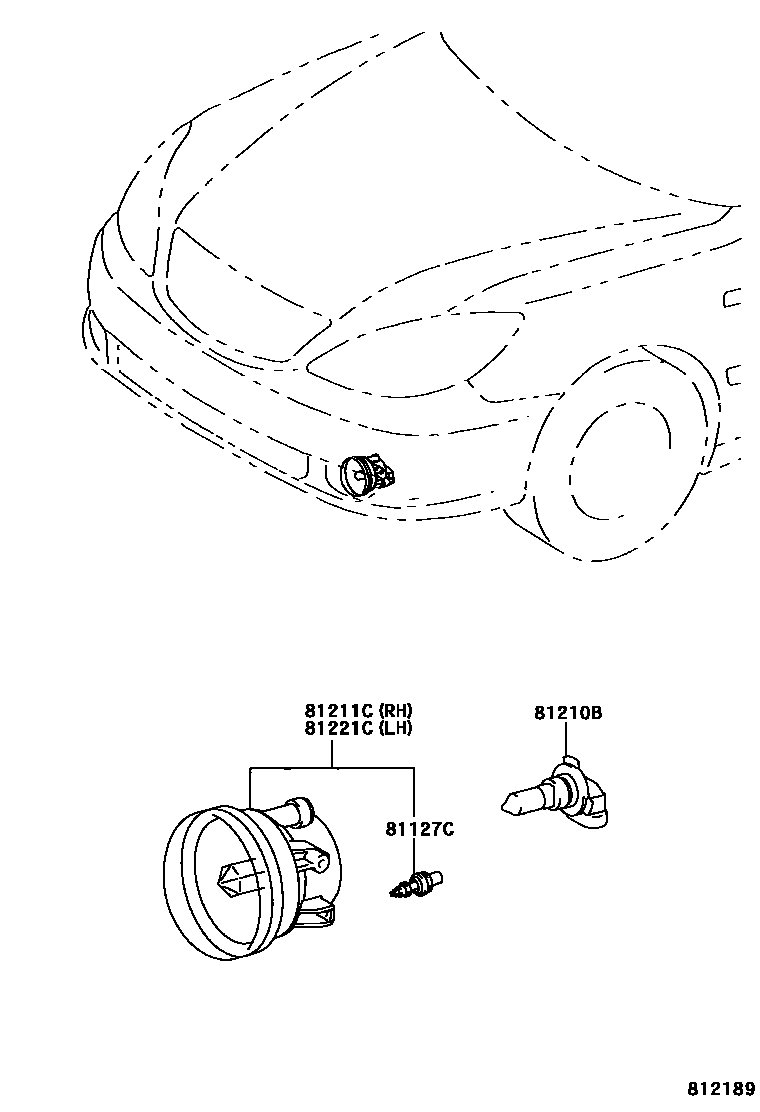

Toyota YARIS Fog Lamp EPC diagram — 812189 — Fog Lamp — 812189 (200208 – 999999)

PNC and OE references

PNC	Part name	OE numbers
81127C	Fog light support	90075-10811
81210B	fog light bulb	90981-13047
81211C	Right fog light assembly	81211-52060
81221C	Left fog light assembly	81221-52060
