Toyota YARIS Headlamp — Figure 8101

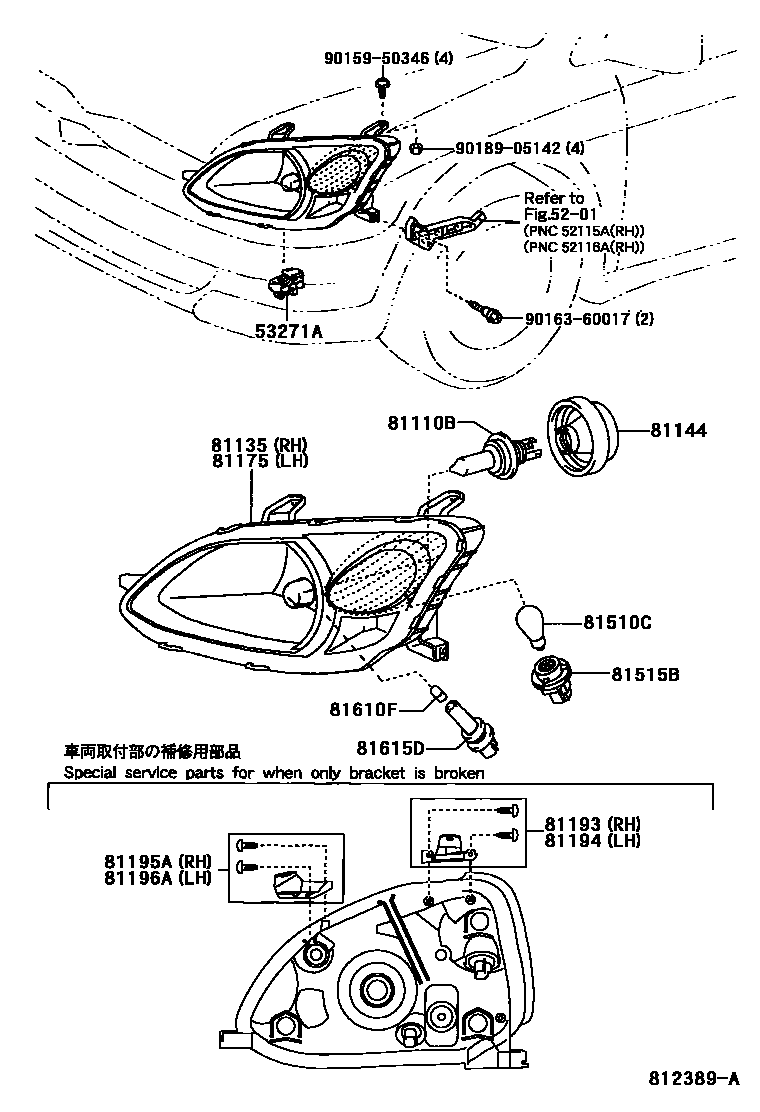

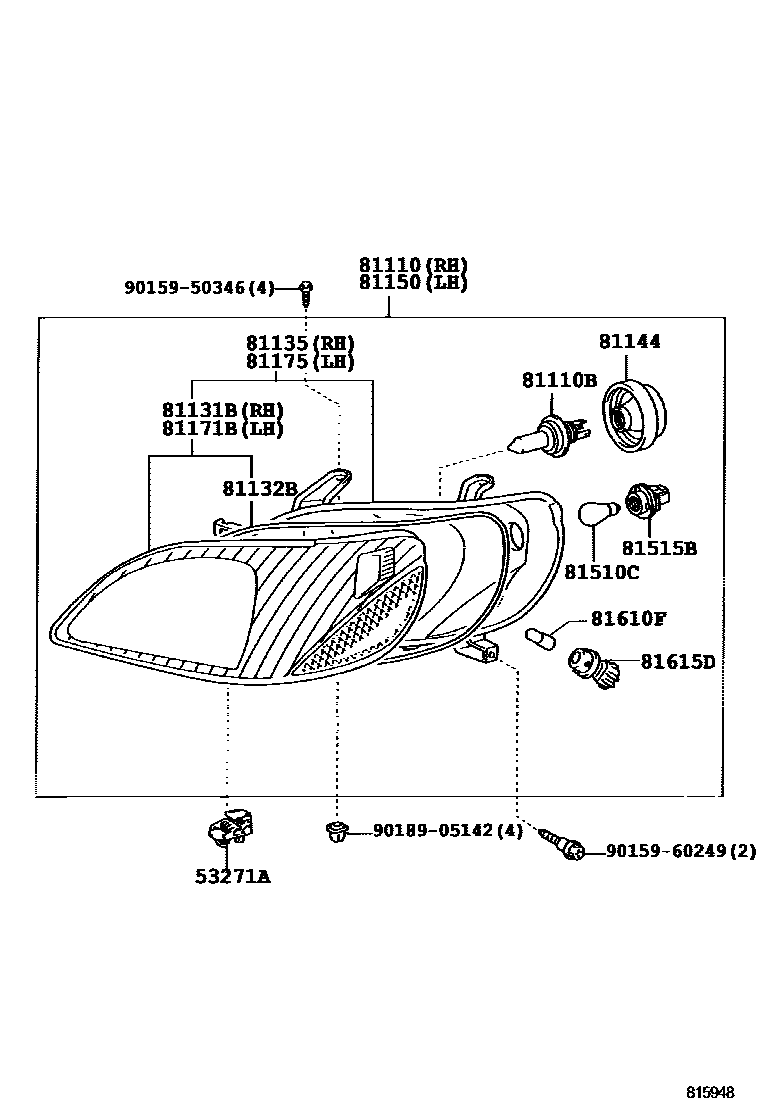

Toyota YARIS EPC diagram 8101, Headlamp, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53271A | Headlight mounting bracket | 53271-12060 · 53271-52010 |
| 81110 | Right headlight assembly | 81110-52160 · 81110-52170 · 81110-52180 |
| 81110B | Bulb (for headlight No. 1) | 90981-13055 · 90981-13058 · 90981-22004 |
| 81131B | Right headlight lampshade | 81131-52160 · 81131-52170 · 81131-52180 |
| 81132B | Headlight cover gasket | 81132-52180 |
| 81135 | Right headlight assembly assembly | 81130-52160 · 81130-52170 · 81130-52180 · 81130-52310 · 81130-52320 · 81130-52530 |
| 81144 | No. 1 headlight cover | 90075-65002 |
| 81150 | Left headlight assembly | 81150-52160 · 81150-52170 · 81150-52180 |
| 81171B | Left headlight lampshade | 81171-52160 · 81171-52170 · 81171-52180 |
| 81175 | Left headlight assembly assembly | 81170-52160 · 81170-52170 · 81170-52180 · 81170-52310 · 81170-52320 · 81170-52530 |
| 81193 | Right headlight upper protective ring | 81193-52070 |
| 81194 | Left headlight upper protective ring | 81194-52070 |
| 81195A | Right headlight lower protection ring | 81195-52020 |
| 81196A | Left headlight lower protection ring | 81196-52030 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15009 · 90981-15011 |
| 81515B | Front turn signal lamp holder | 90075-60006 · 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60001 · 90075-60046 · 90075-60077 |
