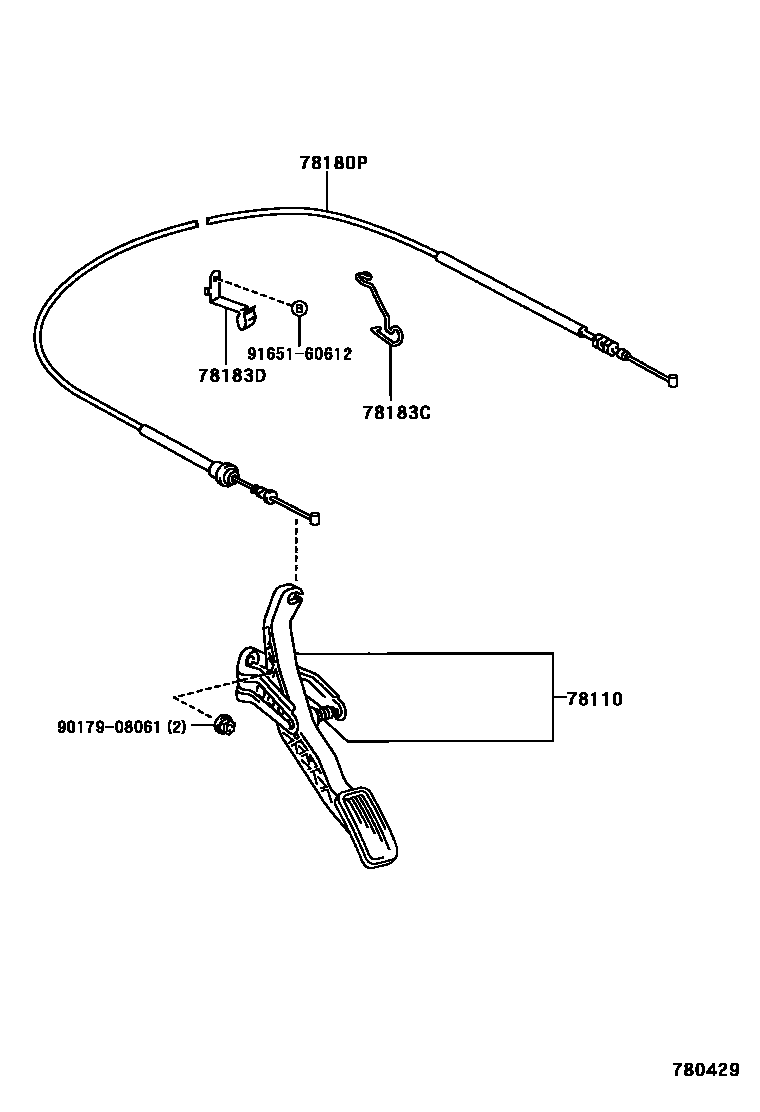

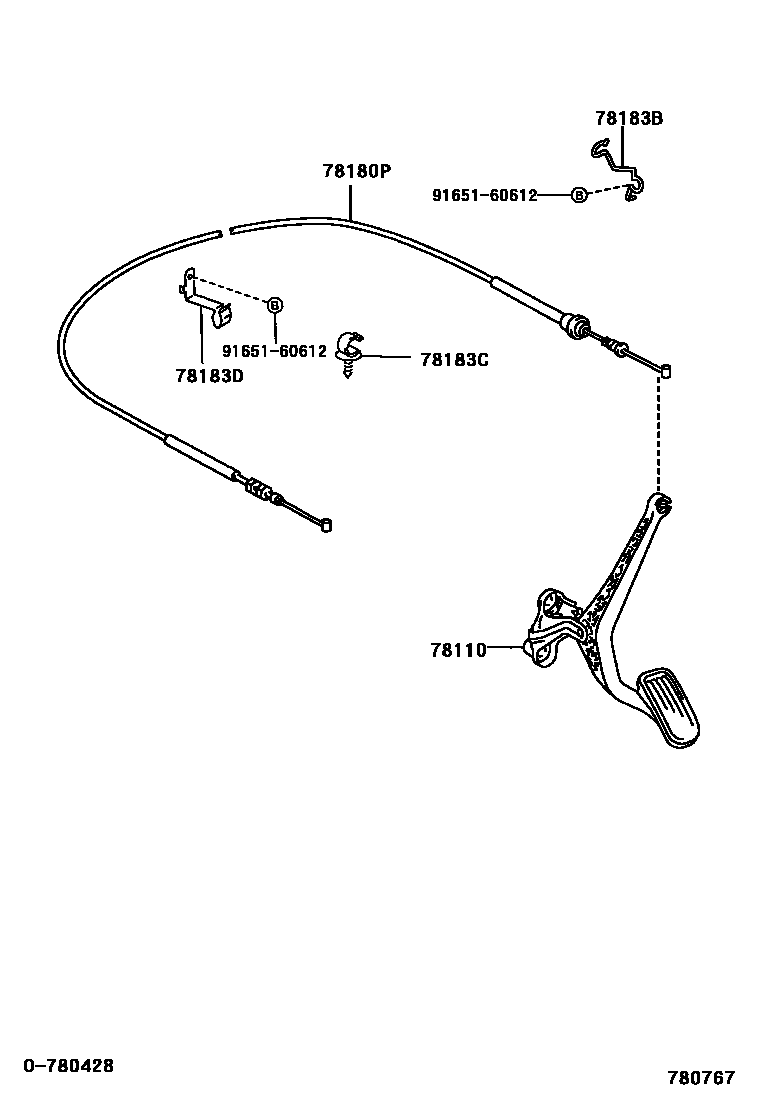

Toyota YARIS accelerator pedal connecting rod — Figure 7801
Toyota YARIS EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110 | Accelerator pedal lever assembly | 78120-52050 · 78120-52060 · 78120-52110 |
| 78180P | Accelerator pedal control cable assembly | 78180-52010 · 78180-52011 · 78180-52030 |
| 78183B | Accelerator pedal control cable clip | 78183-52080 |
| 78183C | Accelerator pedal control cable clip | 78183-52060 · 78183-52070 · 78183-52140 |
| 78183D | Accelerator pedal control cable clip | 78183-52030 · 78183-52120 |
