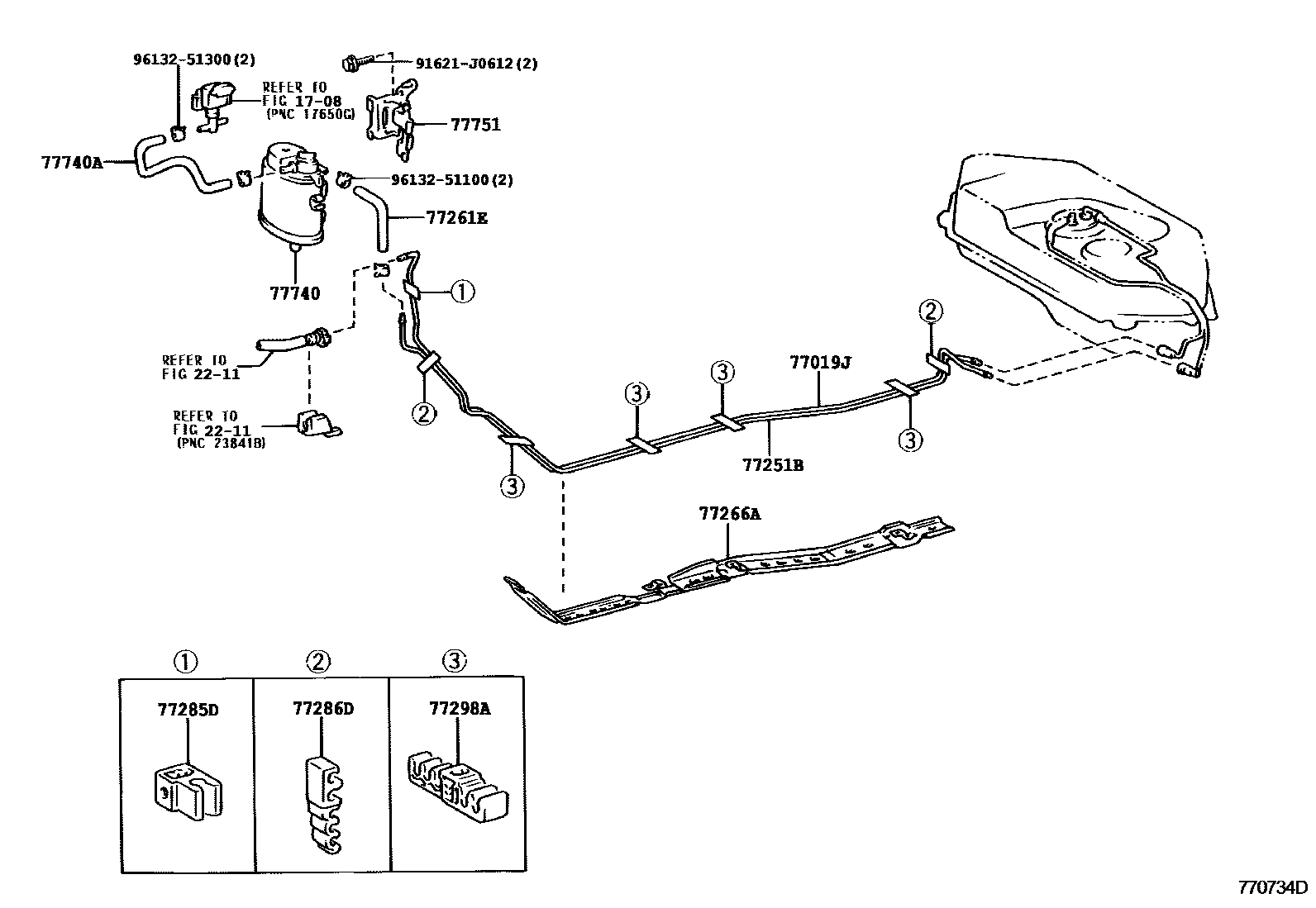

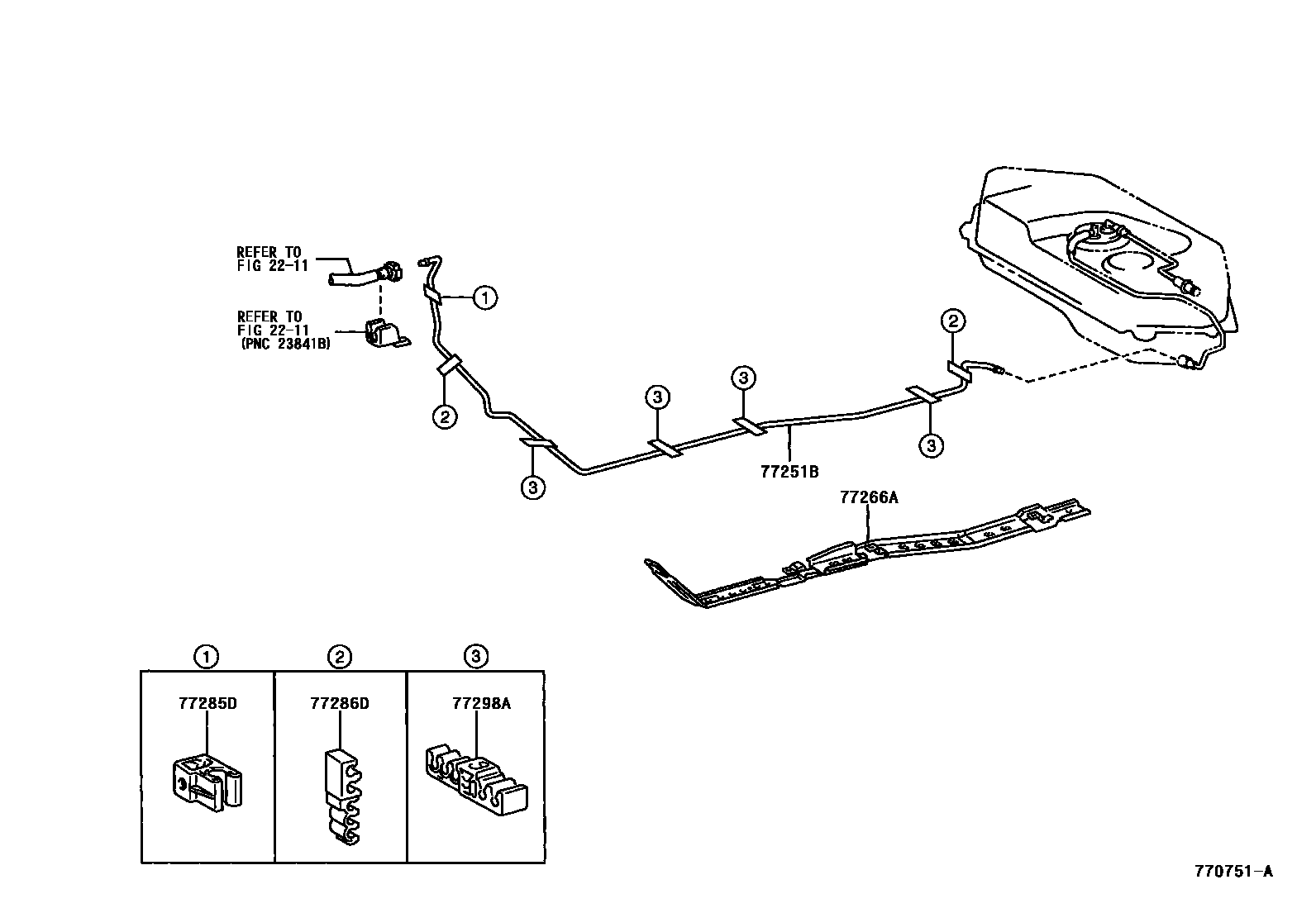

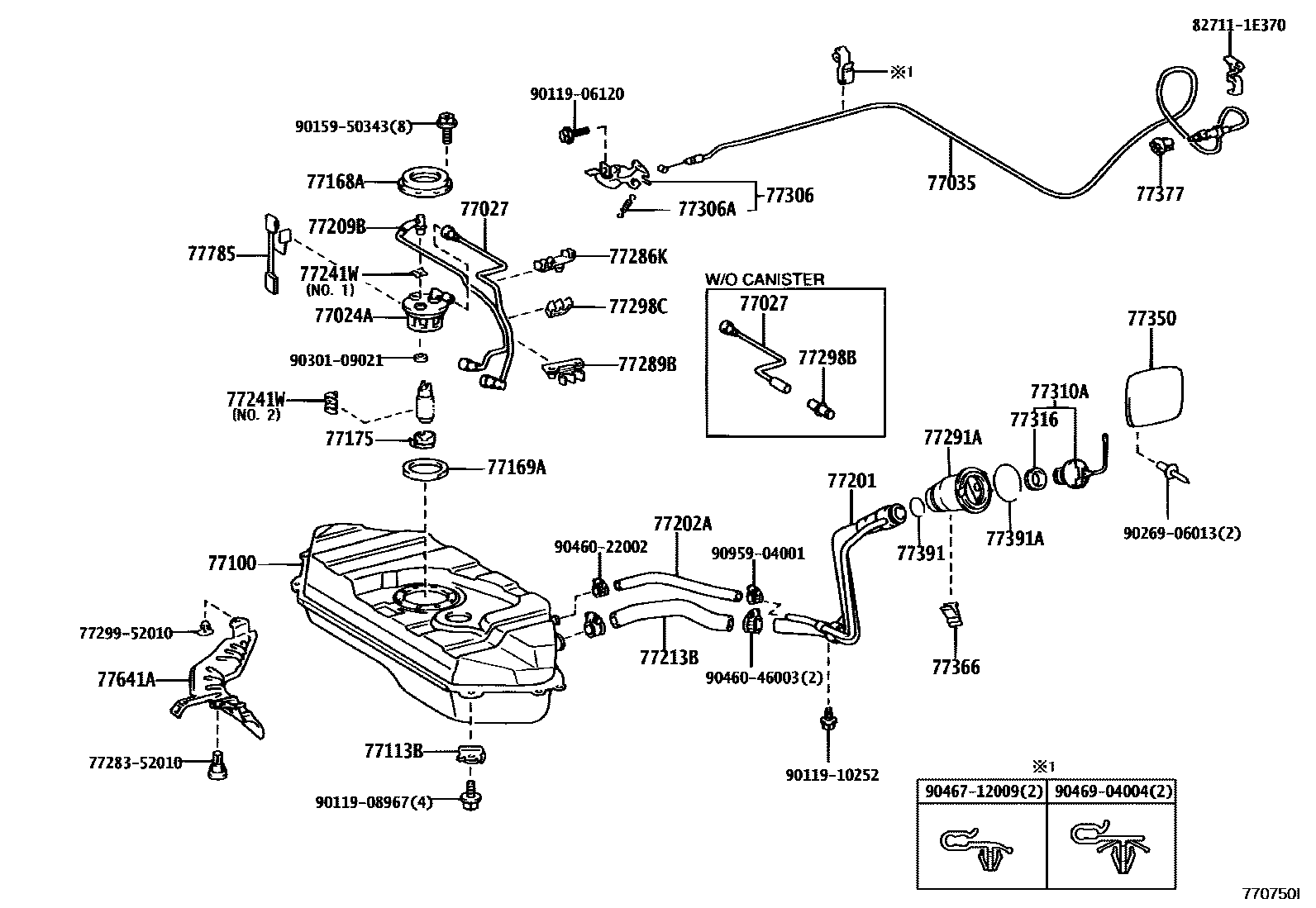

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77019J | Fuel tank to carbon canister hose sub-assembly | 77261-52010 |
| 77024A | Fuel absorber sub-assembly | 77024-52020 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-52010 · 77027-52020 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-52050 · 77035-52060 |
| 77100 | fuel tank assembly | 77001-46030 · 77001-52030 |
| 77113B | fuel tank side panel | 77113-52010 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-52010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-52020 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-52020 · 77201-52050 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95312-13036 · 95313-13036 |
| 77209B | Fuel pump pipe sub-assembly | 77209-52020 |
| 77213B | Fuel tank to filler pipe hose | 77213-52010 · 77213-52020 |
| 77241W | Pipe joint clip | 77241-32060 · 77241-52010 |
| 77251B | main fuel pipe | 77251-52020 · 77251-52021 |
| 77266A | No. 1 fuel line protection device | 77266-52030 |
| 77285D | No. 1 fuel pipe clamp | 77285-52010 · 77285-52020 |
| 77286D | No. 2 fuel pipe clamp | 77286-52010 |
| 77286K | No. 2 fuel pipe clamp | 77286-52020 |
| 77289B | No. 3 fuel pipe clamp | 77289-52010 |
| 77291A | Fuel tank filler pipe cover | 77291-52040 |
| 77298A | No. 4 fuel pipe clamp | 77298-52010 |
| 77298B | No. 4 fuel pipe clamp | 77298-52030 |
| 77298C | No. 4 fuel pipe clamp | 77298-52020 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-12050 · 64606-12060 · 77306-13020 · 77306-13030 |
| 77306A | Fuel filler cap opening lever spring | 90506-09004 · 90506-09034 |
| 77310A | Fuel tank cap assembly | 77300-28010 · 77300-52010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-52050 |
| 77366 | Fuel filler cap hinge spring | 77360-35010 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-52010 |
| 77641A | No. 1 fuel tank protective shell | 77631-52010 |
| 77740 | Carbon canister assembly | 77740-52040 · 77740-52041 |
| 77740A | No. 1 fuel hose (for canister) | 23827-21010 |
| 77751 | Carbon canister base bracket | 77751-52020 |
| 77785 | fuel pump wiring harness | 77785-32010 |
