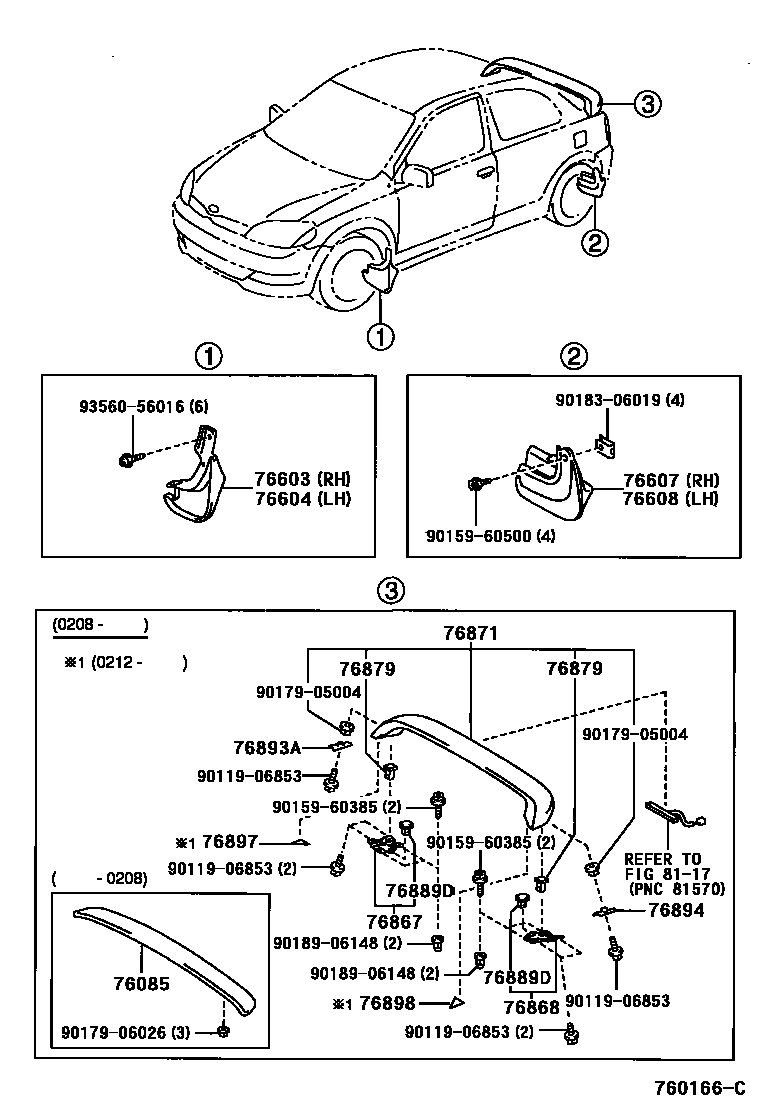

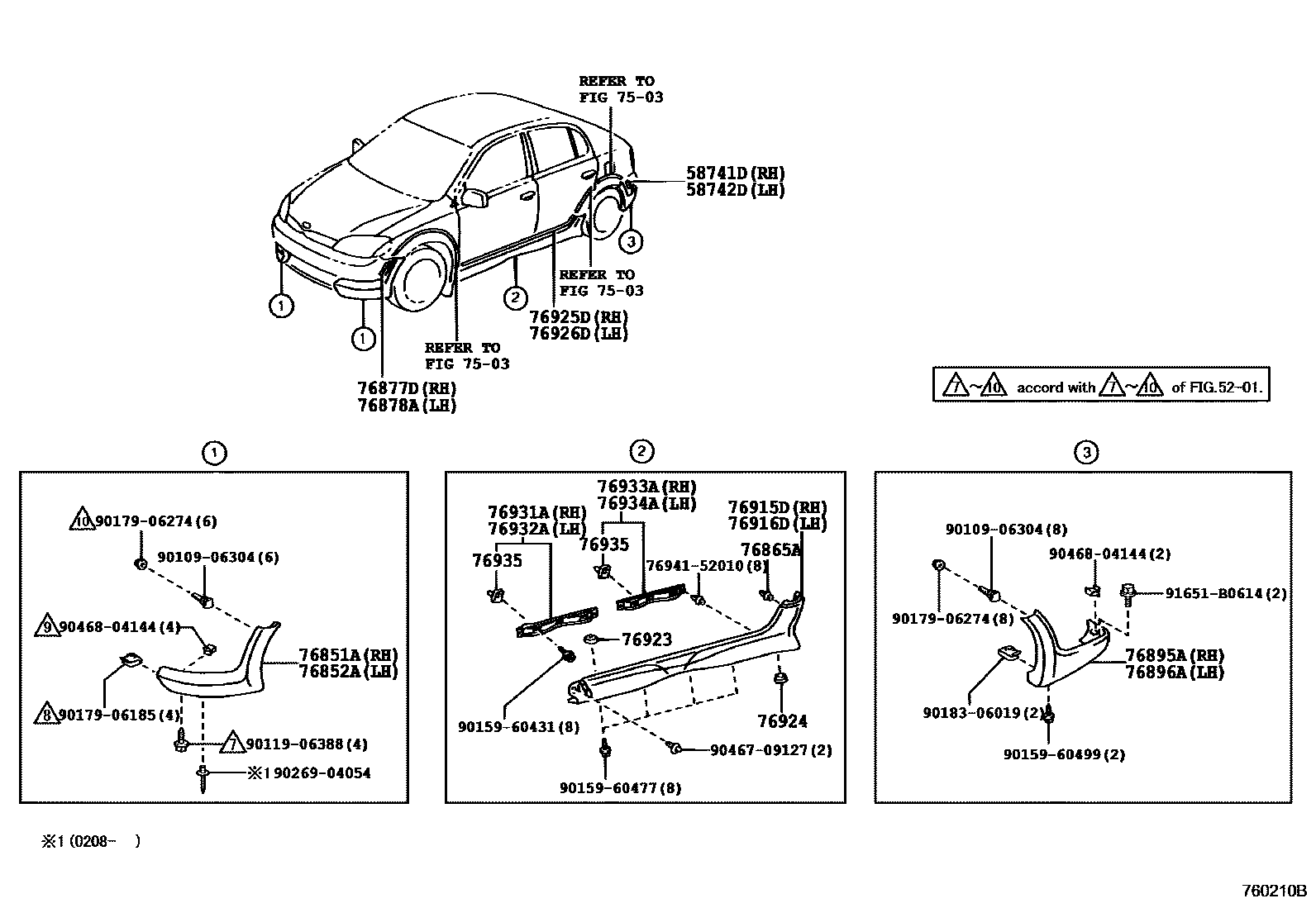

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741D | Right rear fender external panel protection panel | 58741-52040 · 58741-52170 |
| 58742D | Left rear fender external panel protection plate | 58742-52040 · 58742-52170 |
| 76603 | Right front fender fender sub-assembly | 76621-52010 |
| 76604 | Left front fender fender sub-assembly | 76622-52010 |
| 76607 | Right rear side fender sub-assembly | 76625-52030 · 76625-52060 |
| 76608 | Left rear side fender sub-assembly | 76626-52030 · 76626-52060 |
| 76851A | Right front spoiler cover | 76851-52010 · 76851-52050 |
| 76852A | Left front spoiler cover | 76852-52010 · 76852-52050 |
| 76865A | Side fender fixings | 67771-12070 |
| 76867 | Right rear spoiler fixing | 76867-52010 |
| 76868 | Left rear spoiler fixing | 76868-52010 |
| 76877D | Right front spoiler protection strip | 76877-52010 · 76877-52030 |
| 76878A | Left front spoiler protection strip | 76878-52010 · 76878-52030 |
| 76879 | No. 1 rear spoiler clip | 76879-12040 |
| 76889D | No. 2 rear spoiler clip | 76889-52030 |
| 76893A | Right rear spoiler cover | 76893-52030 |
| 76894 | Left rear spoiler cover | 76894-52020 |
| 76895A | Right rear bumper spoiler | 76895-52900 · 76895-52901 |
| 76896A | Left rear bumper spoiler | 76896-52900 · 76896-52901 |
| 76897 | Right rear spoiler protection strip | 76897-52020 |
| 76898 | Left rear spoiler protection strip | 76898-52020 |
| 76915D | Right front fender | 76915-52020 |
| 76916D | Left front fender | 76916-52020 |
| 76923 | Side fender fixings | 76923-52020 |
| 76924 | No. 2 side fender fixings | 76924-52020 · 76924-52021 |
| 76925D | Right fender protection strip | 76925-52040 |
| 76926D | Left fender protection strip | 76925-52040 |
| 76931A | No. 1 right fender bracket | 76931-52020 |
| 76932A | No. 1 left fender bracket | 76932-52020 |
| 76933A | No. 2 right fender bracket | 76933-52010 |
| 76934A | No. 2 left fender bracket | 76934-52010 |
| 76935 | No. 7 side fender fixings | 76935-52010 |
