Toyota YARIS 侧防护条 — Figure 7503

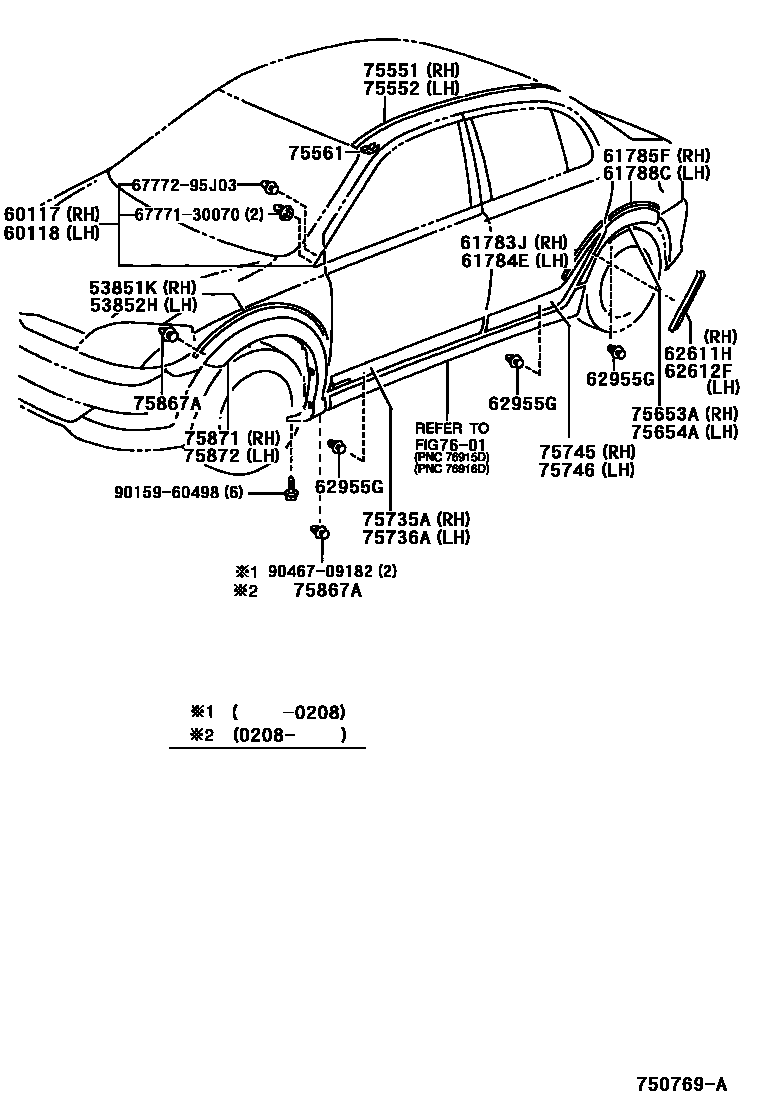

Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851K | Right front fender outer panel pad | 53851-52030 · 53851-52060 |
| 53852H | Left front fender exterior panel pad | 53852-52030 · 53852-52060 |
| 60117 | Right front pillar upper cover sub-assembly | 60117-52010 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-52010 |
| 61783J | No. 2 rear fender outer panel pad | 61783-52010 |
| 61784E | No. 2 rear fender outer panel pad | 61784-52010 |
| 61785F | No. 3 rear fender outer panel pad | 61785-52020 |
| 61788C | No. 4 rear fender outer panel pad | 61788-52030 |
| 62611H | Right wheel cover pad | 62611-52010 |
| 62612F | Left side wheel cover pad | 62612-52010 |
| 62955G | Side ventilation grille fixings | 62955-12010 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-52040 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-52020 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-52010 · 75561-52020 |
| 75653A | Right rear side panel outer protective strip | 75653-52020 |
| 75654A | Left rear side panel outer protective strip | 75654-52020 |
| 75735A | Right front door outer lower protective strip | 75735-52020 |
| 75736A | Left front door outer lower protective strip | 75736-52020 |
| 75745 | Right rear door outer lower protective strip | 75745-52030 |
| 75746 | Left rear door outer lower protective strip | 75746-52030 |
| 75867A | Door sill panel protective strip clip | 75867-21010 · 75881-52010 |
| 75871 | Right front fender wheel well protection strip | 75871-52010 · 75871-52020 |
| 75872 | Left front fender wheel well protection strip | 75872-52010 · 75872-52020 |
