Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 9 PNC and OE references.

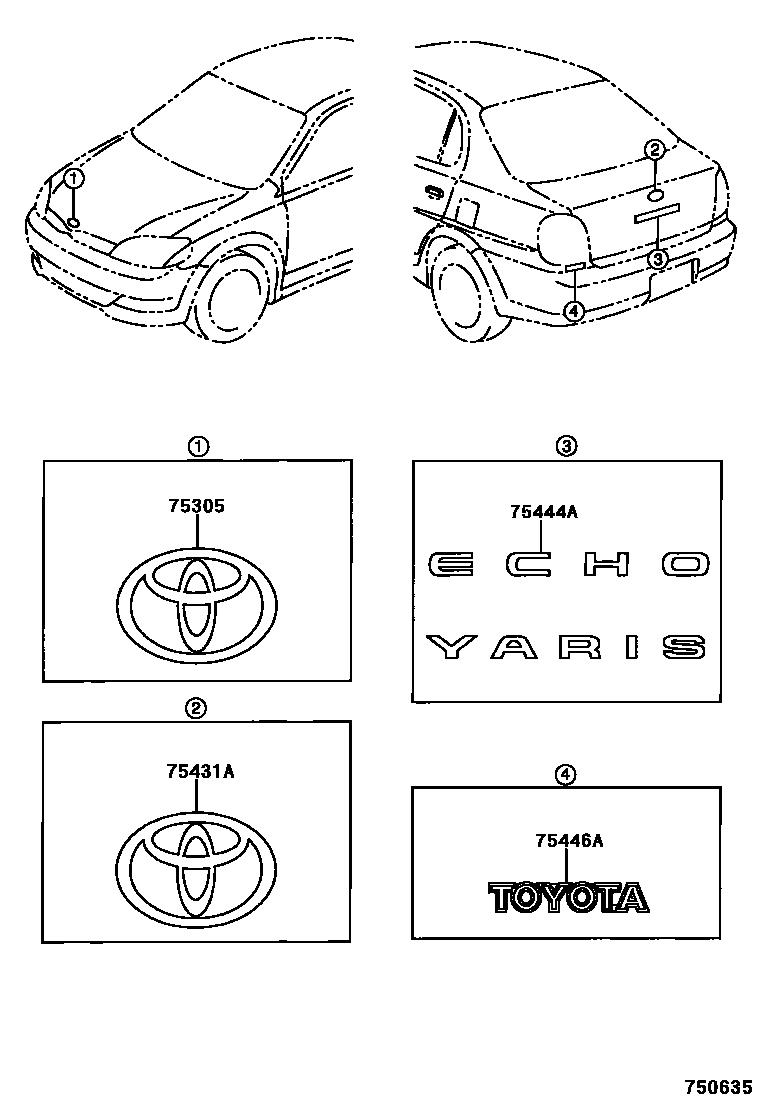

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 750635
丰田徽标和铭牌(车外和车内) — 750635 (199908 – 200208)

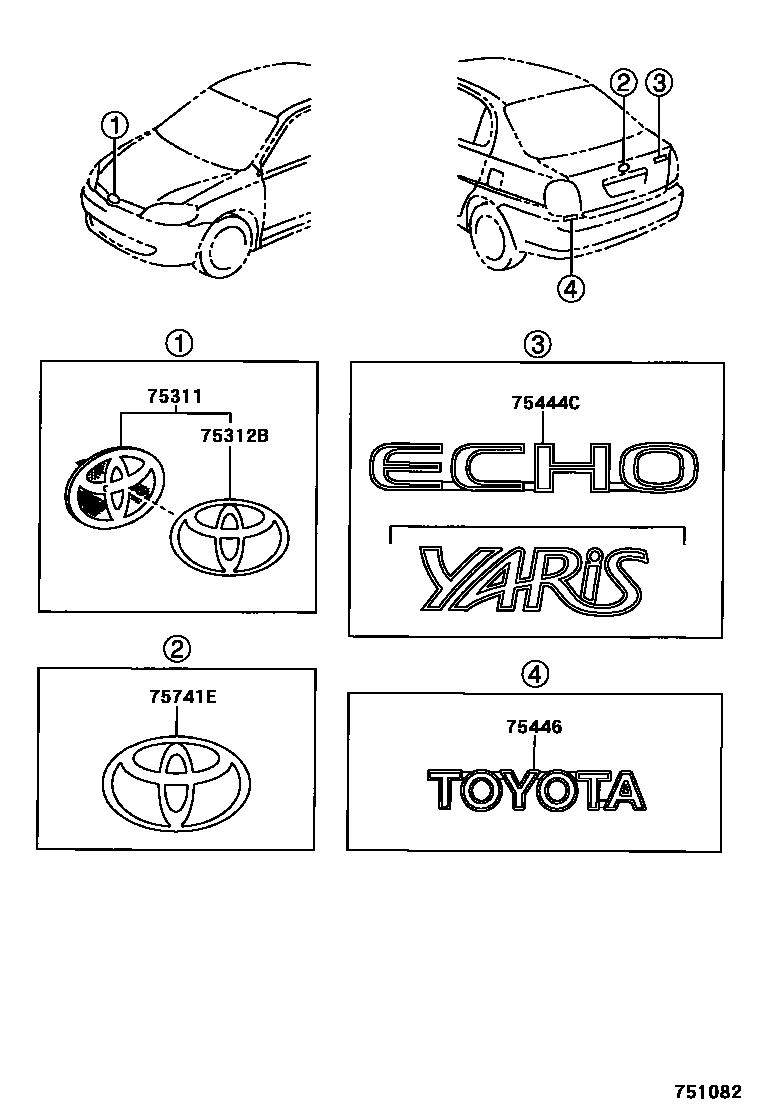

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 751082
丰田徽标和铭牌(车外和车内) — 751082 (200208 – 999999)

PNC and OE references

PNCPart nameOE numbers
75305engine cover plate75331-52030
75311Radiator grille (or front panel) plate75301-52020
75312BRadiator grille number 2 plate90975-02041
75431ANo. 1 sign on back door75431-52020
75444ANo. 4 nameplate on back door75444-52040 · 75444-52050
75444CTrunk door No. 4 nameplate75444-52140 · 75444-52150
75446Trunk door No. 6 nameplate75446-52030
75446ANo. 6 nameplate on back door75446-52020
75741Elogo90975-02010
