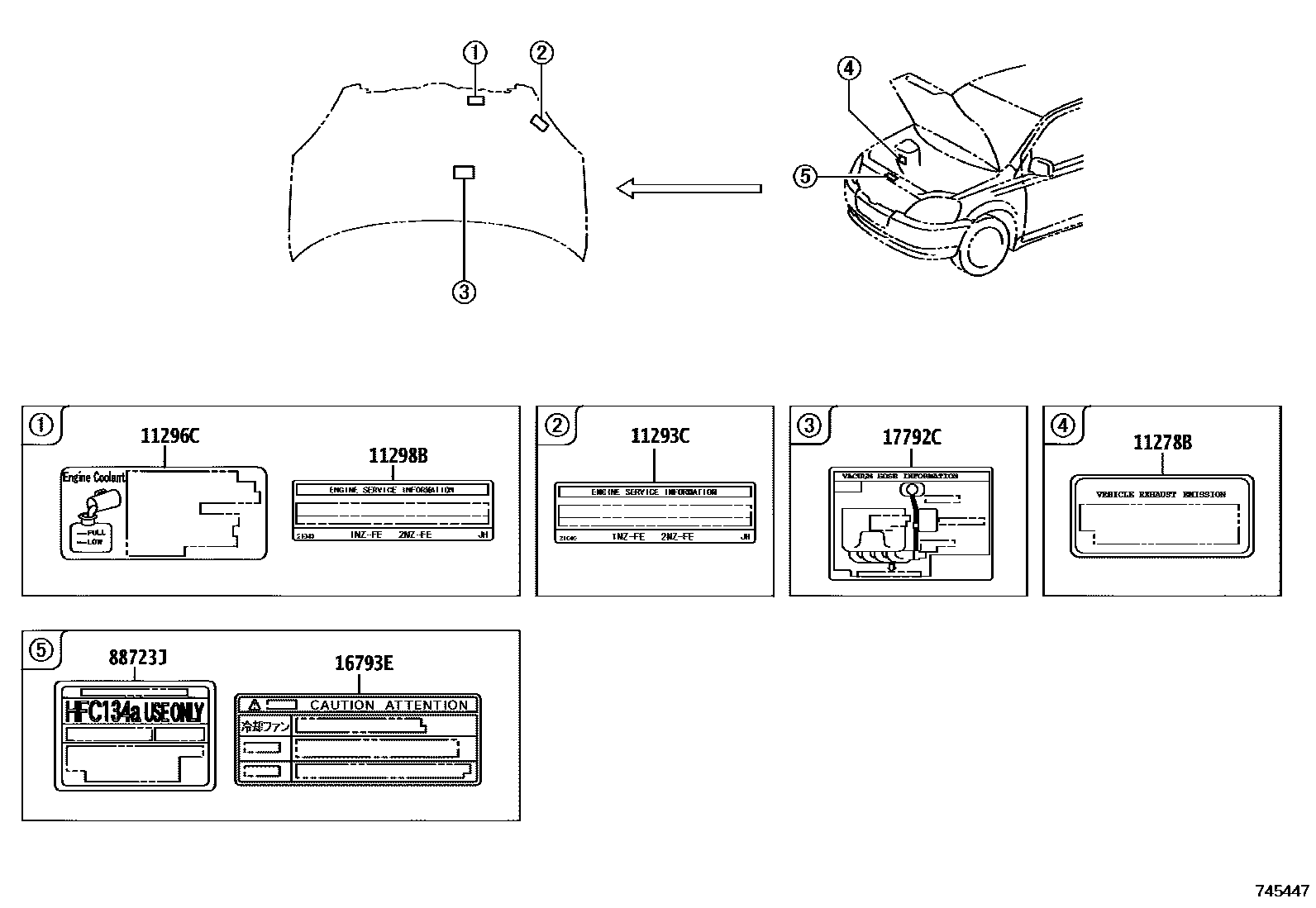

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11278B | Engine emission standard information label | 11278-16050 |
| 11293C | Adjust specification information label | 11293-21040 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 11298B | Emission Control Information Label | 11298-21020 |
| 16793E | Cooling fan warning label | 16793-46010 |
| 17792C | Engine vacuum hose information label | 17792-21020 |
| 69339C | Child Restraint Information Label | 69339-52010 · 69349-52010 |
| 73794 | Rear seat belt caution label | 73794-33010 |
| 74511F | Nameplate (laser identification label) | 74511-48030 |
| 74559B | fuel information label | 74559-14050 |
| 74571A | Label cover protective film | 74571-32010 |
| 74751 | tire pressure information label | 42661-52060 · 42661-52100 · 42661-52101 · 42661-52200 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-52010 |
