Toyota YARIS 扶手和遮阳板 — Figure 7401
Toyota YARIS EPC diagram 7401, 扶手和遮阳板, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

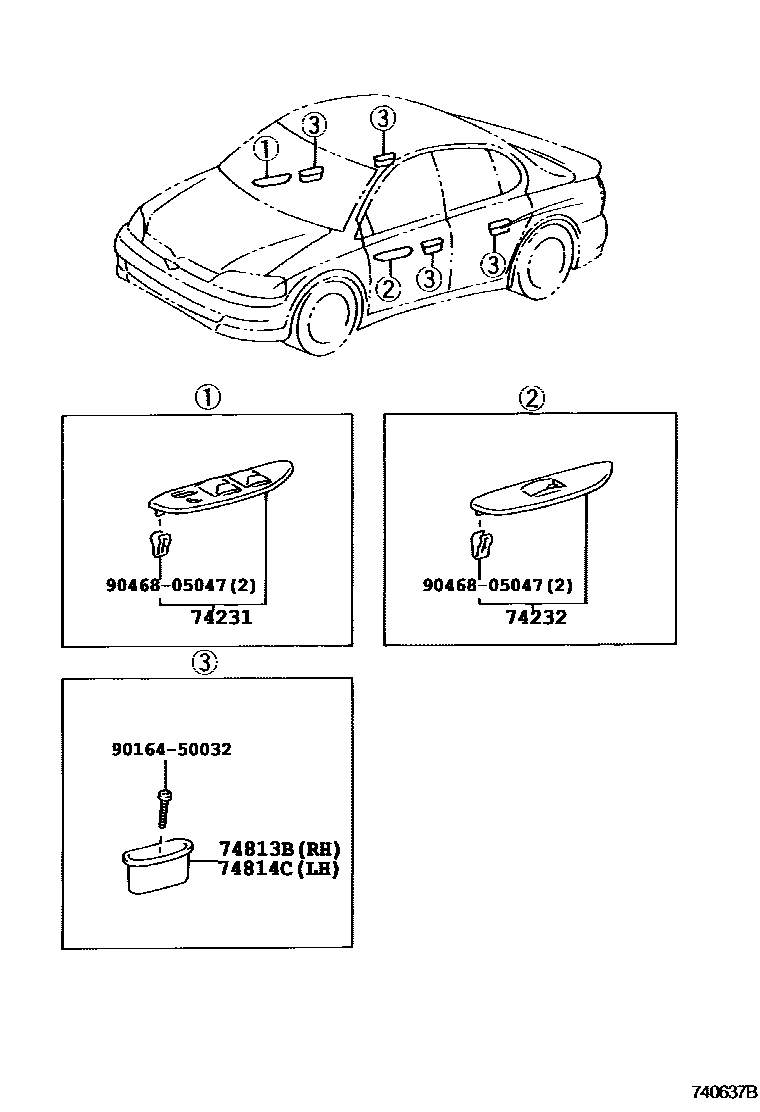

| 74231 | Right front armrest upper panel | 74231-52010 · 74231-52030 |
| 74232 | Left front armrest upper panel | 74232-52010 · 74232-52030 |
