Toyota YARIS 安全带和儿童保护座椅 — Figure 7104

Toyota YARIS EPC diagram 7104, 安全带和儿童保护座椅, with 1 images and 3 PNC and OE references.

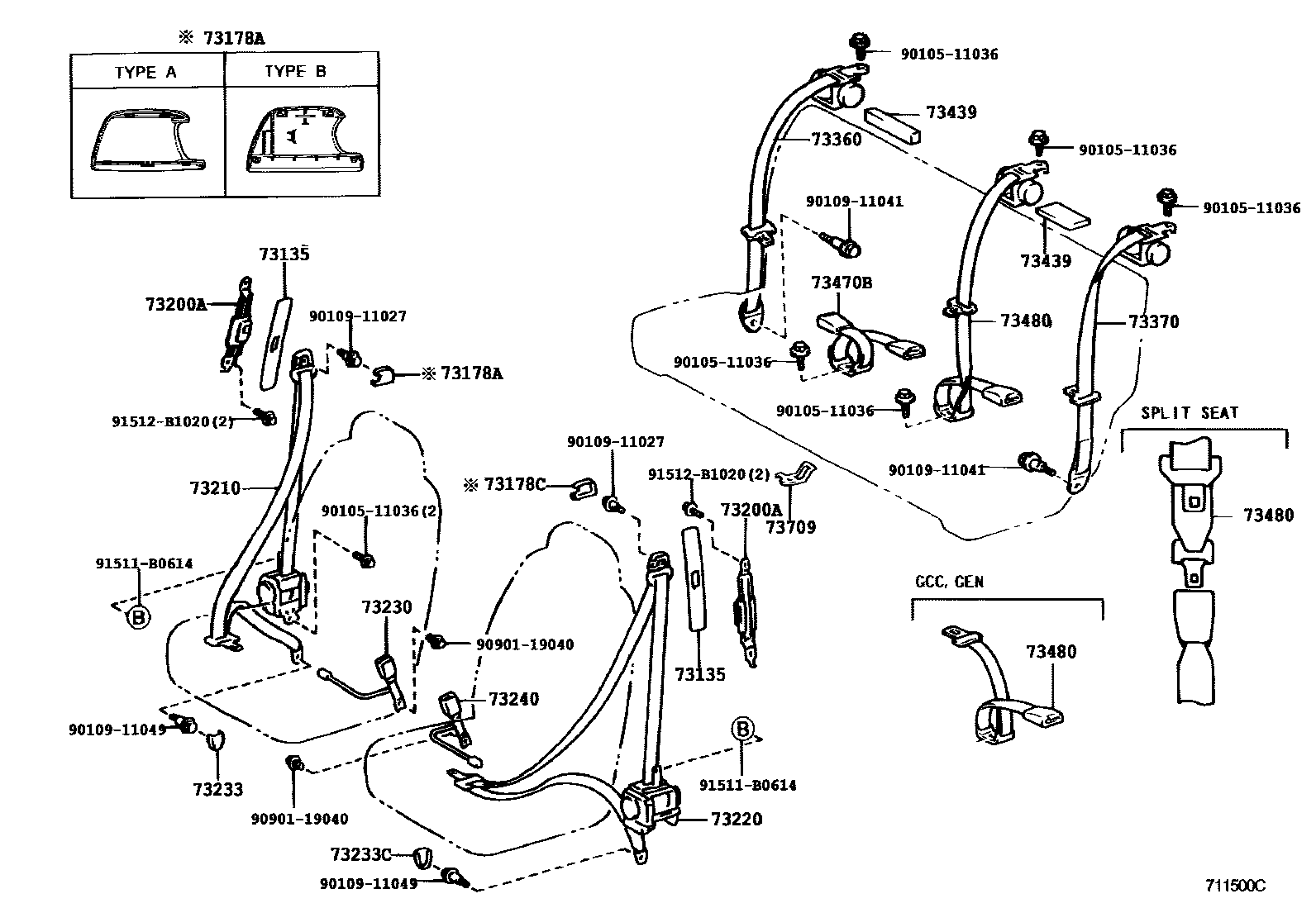

Toyota YARIS 安全带和儿童保护座椅 EPC diagram — 711500C
安全带和儿童保护座椅 — 711500C (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
73230Front right seat inner seat belt assembly73230-52320
73439Rear seat belt retractor cushion73439-52010 · 73439-52020
73709Tie anchor bracket sub-assembly73719-52030
