Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

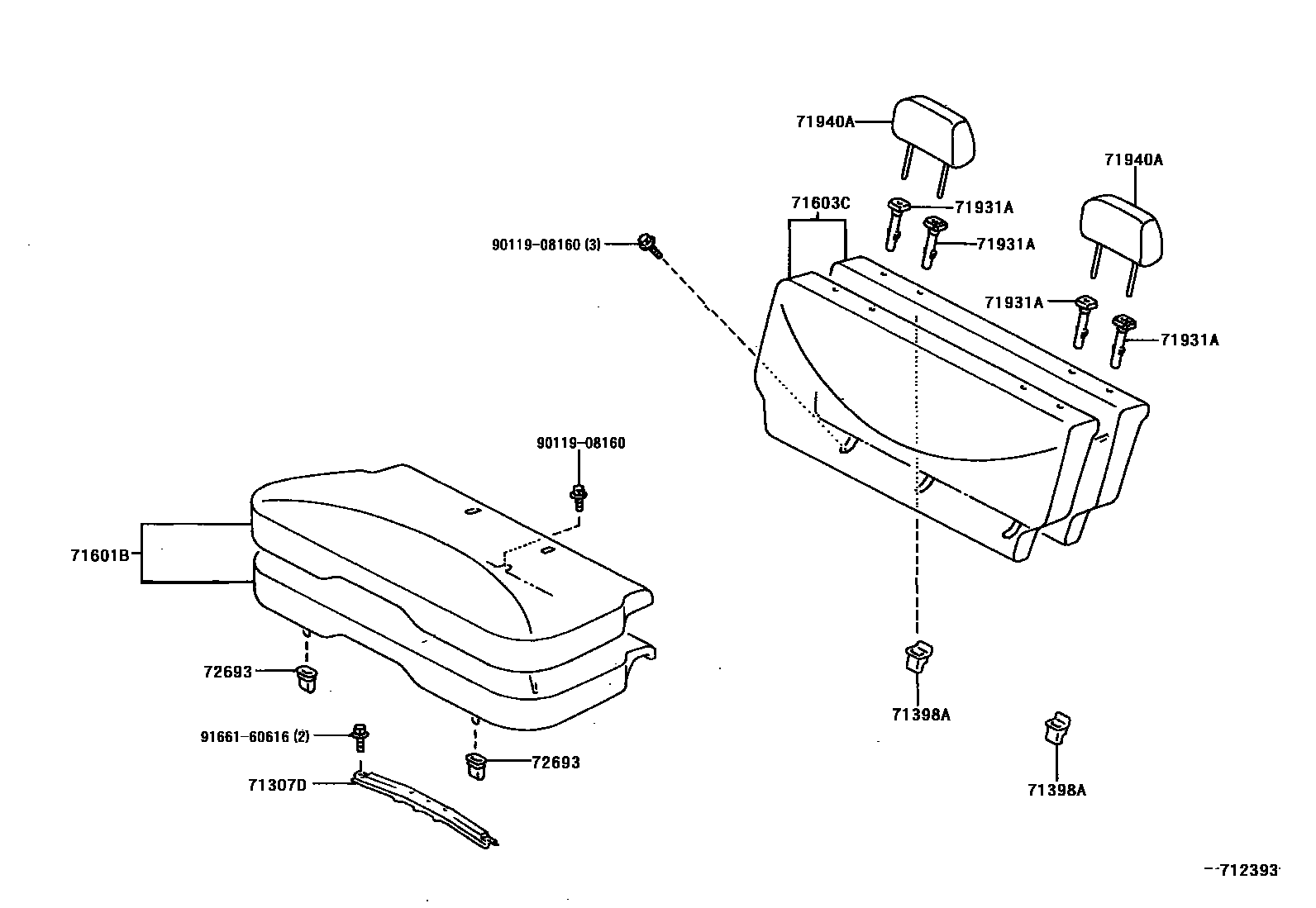

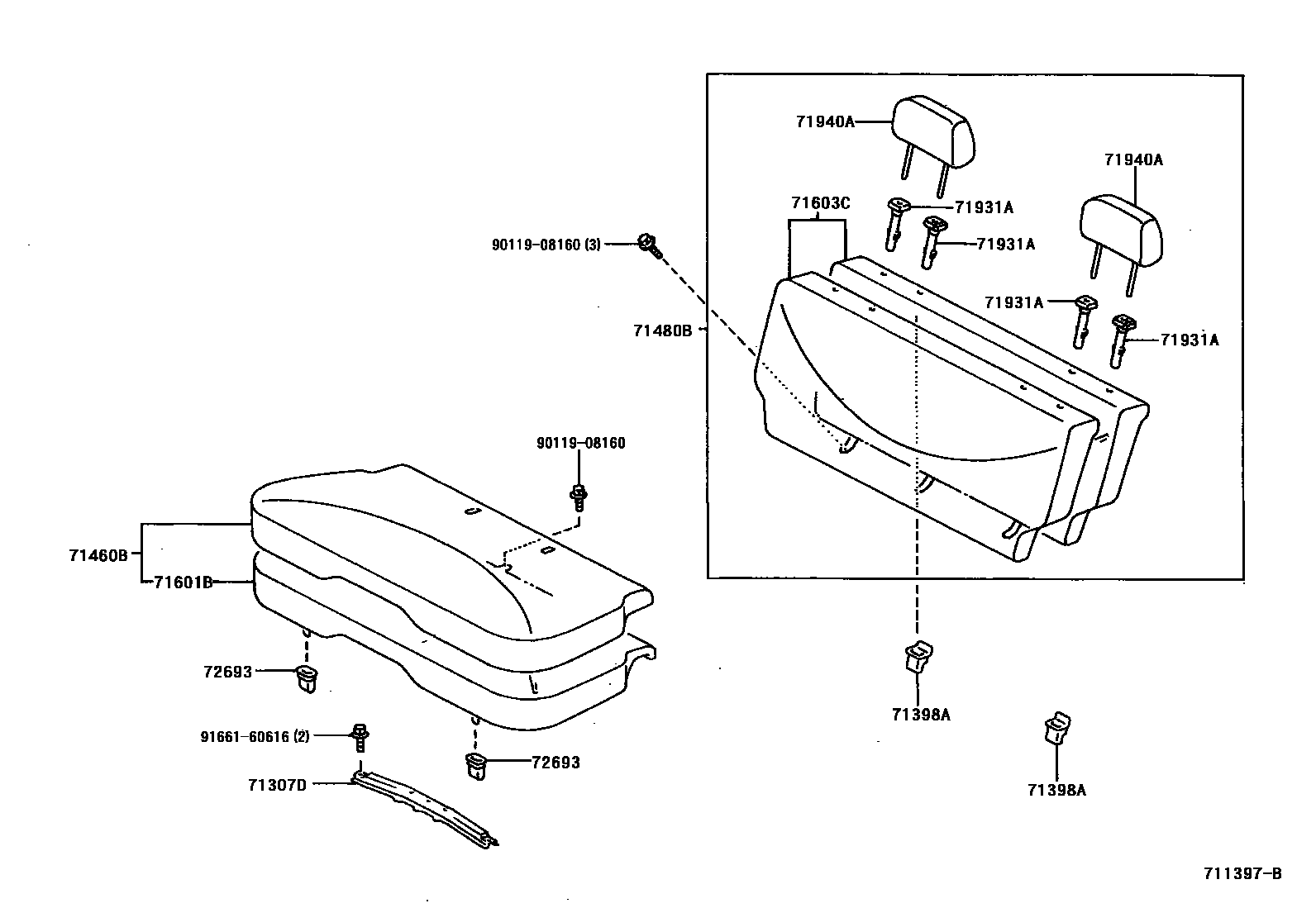

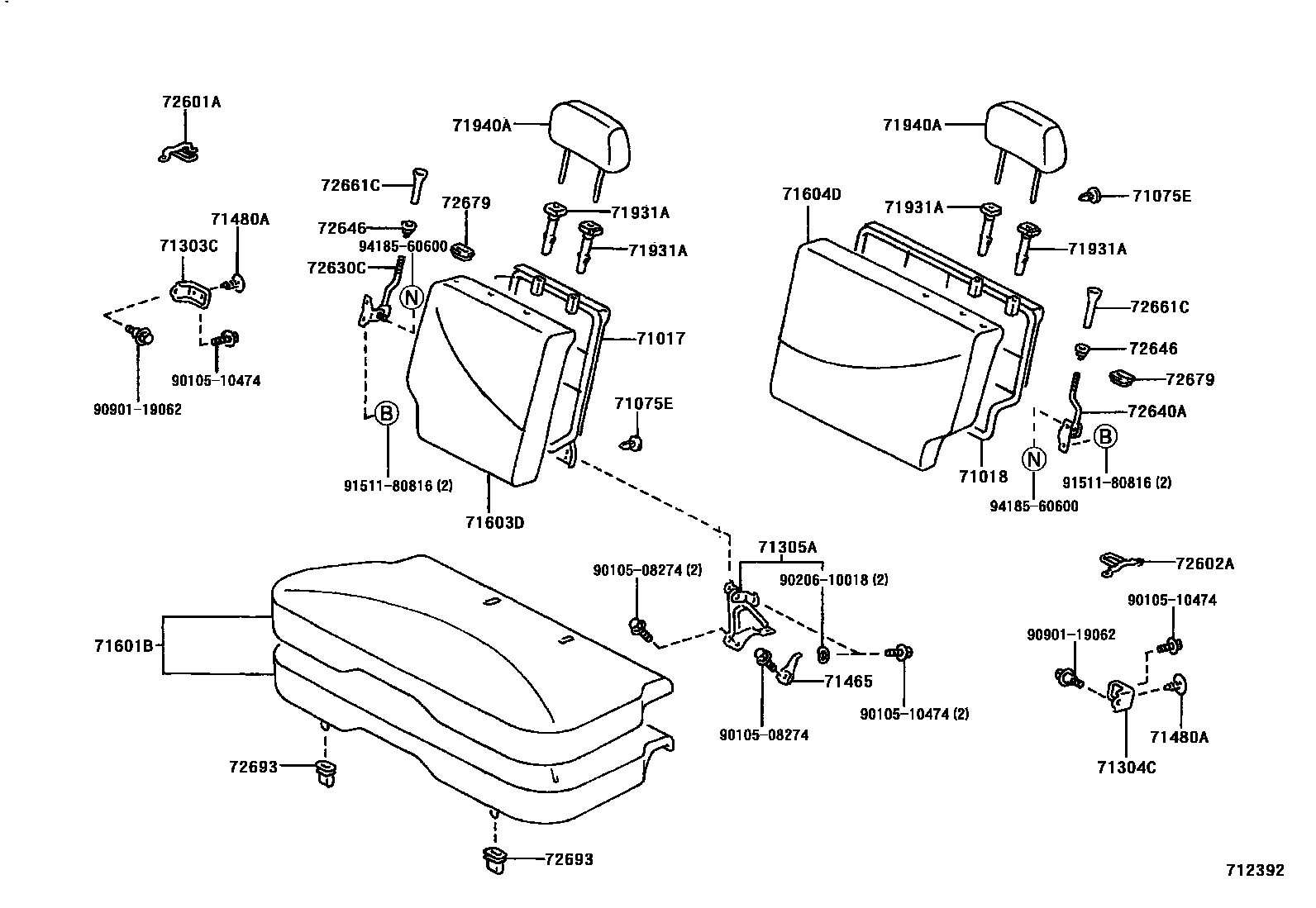

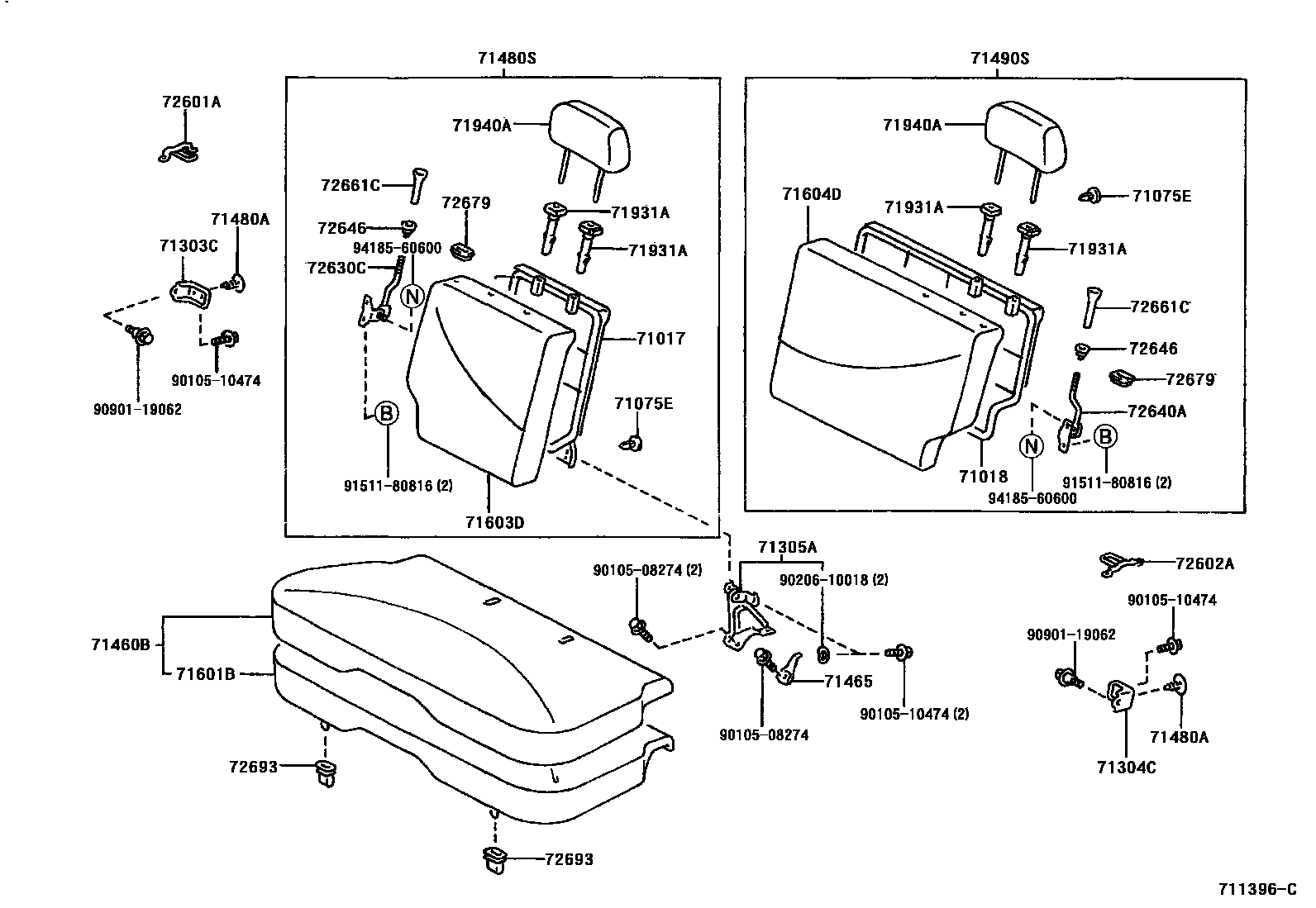

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-52100 · 71017-52210 |
| 71018 | Rear left seat back frame sub-assembly | 71018-52040 · 71018-52050 · 71018-52051 |
| 71075E | Clip (for rear seats) | 90467-09118 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71345-52010 |
| 71304C | Rear left seat back hinge sub-assembly | 71345-52010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-52010 · 71305-52011 |
| 71307D | Rear right seat cushion bracket sub-assembly | 71307-52010 · 71307-52011 |
| 71398A | Rear seat back retainer | 71398-33010 |
| 71465 | Rear No. 5 seat cushion spring | 71465-52010 |
| 71601B | Rear seat cushion sub-assembly with protective cover | 71601-5C440 |
| 71603D | Rear right side seat back cushion sub-assembly with protective cover | 71603-5C750 |
| 71604D | Rear left side seat back cushion sub-assembly with face protector | 71604-5C010 |
| 72601A | Right rear seat back lock sub-assembly | 72601-52050 |
| 72602A | Rear left seat back lock sub-assembly | 72601-52050 |
| 72630C | Rear right seat back lock assembly | 72630-52030 · 72630-52040 · 72630-52041 |
| 72640A | Rear left seat back lock assembly | 72630-52030 · 72640-52030 · 72640-52031 |
| 72693 | Rear seat cushion hook | 72693-10040 |
