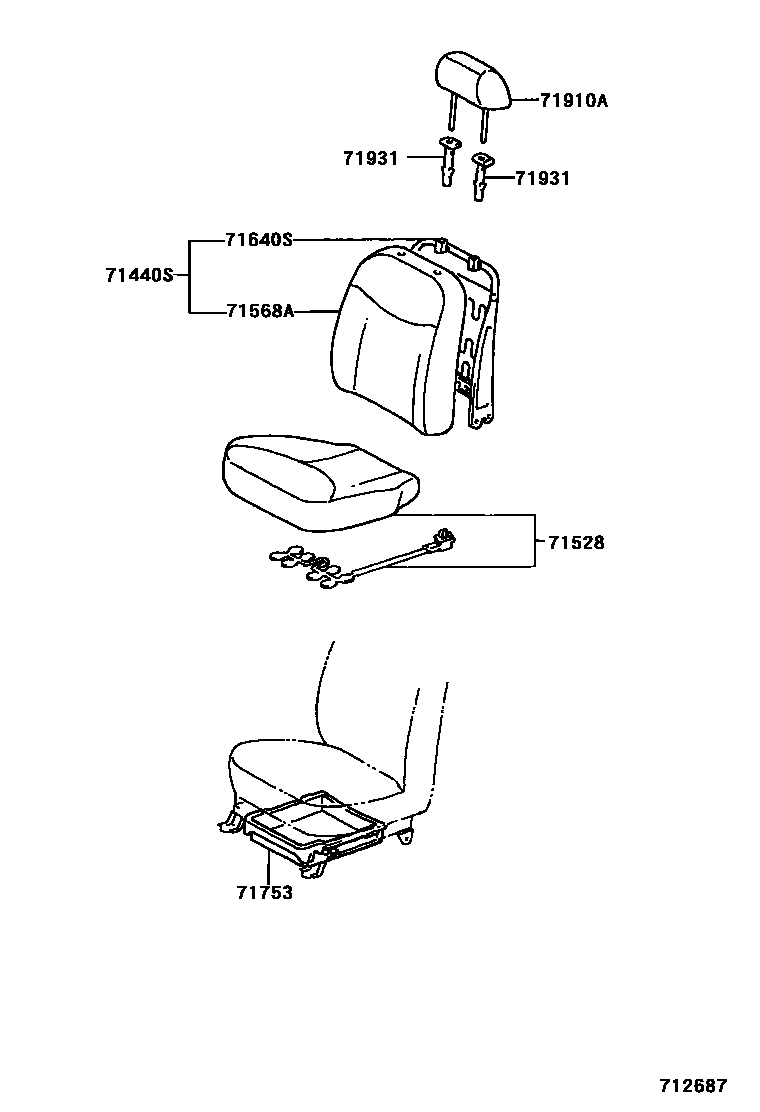

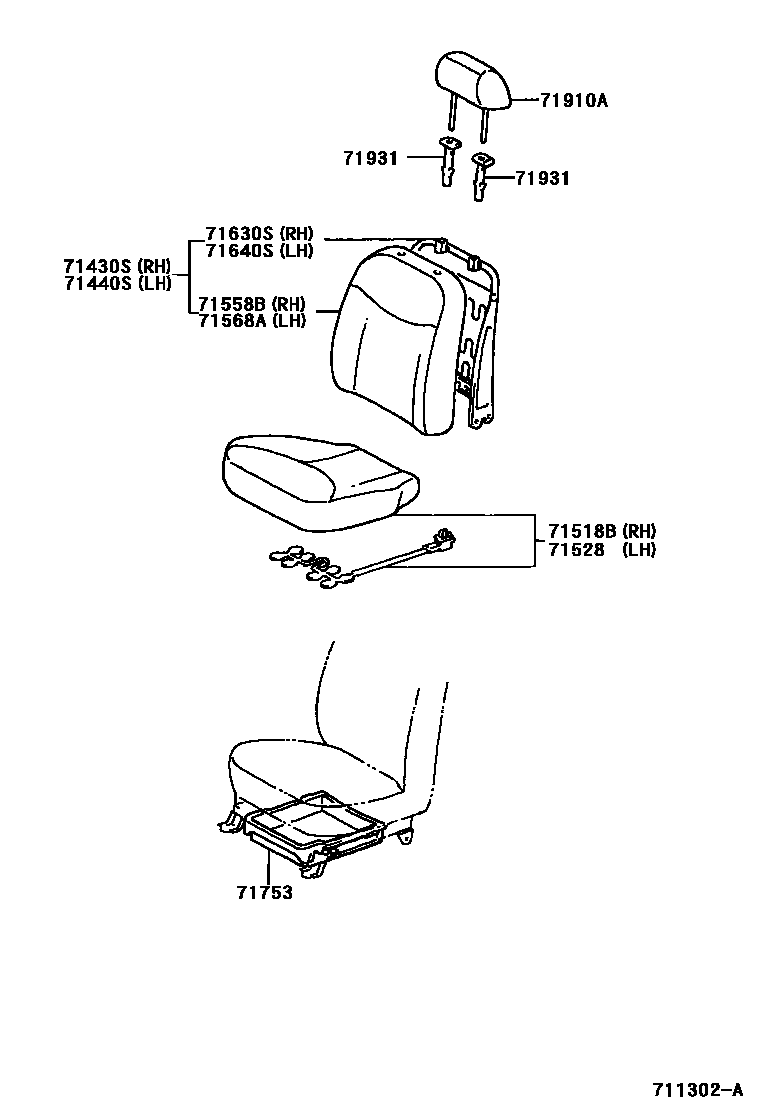

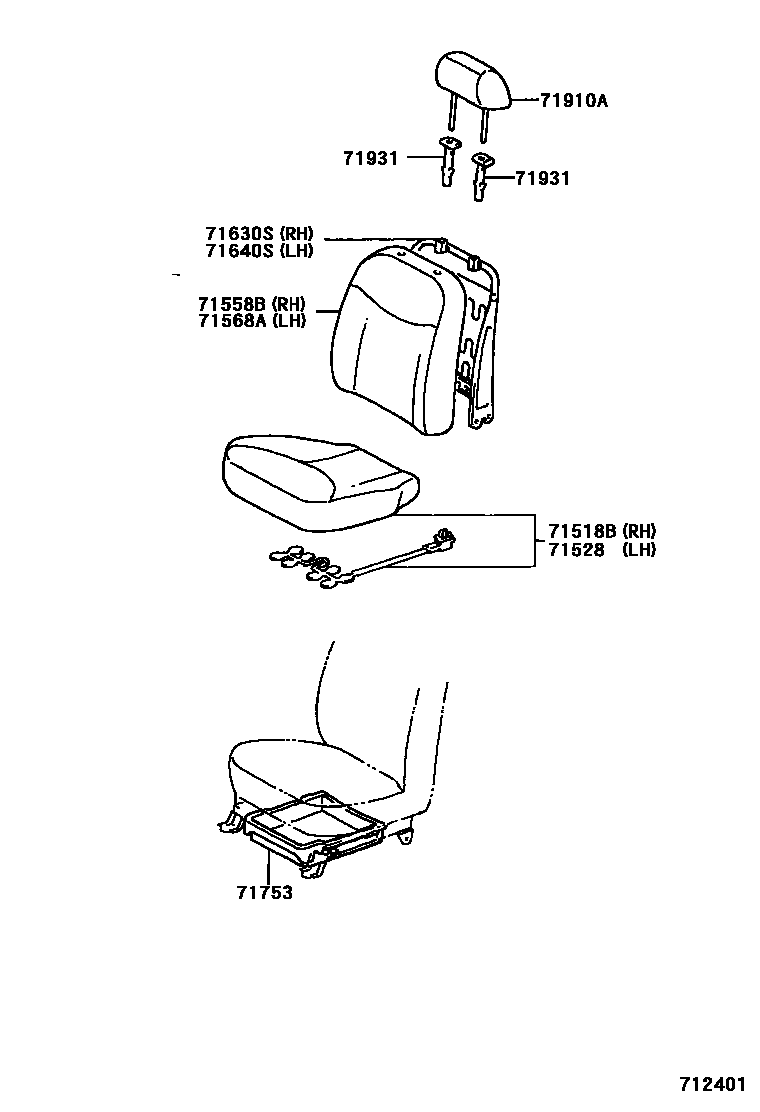

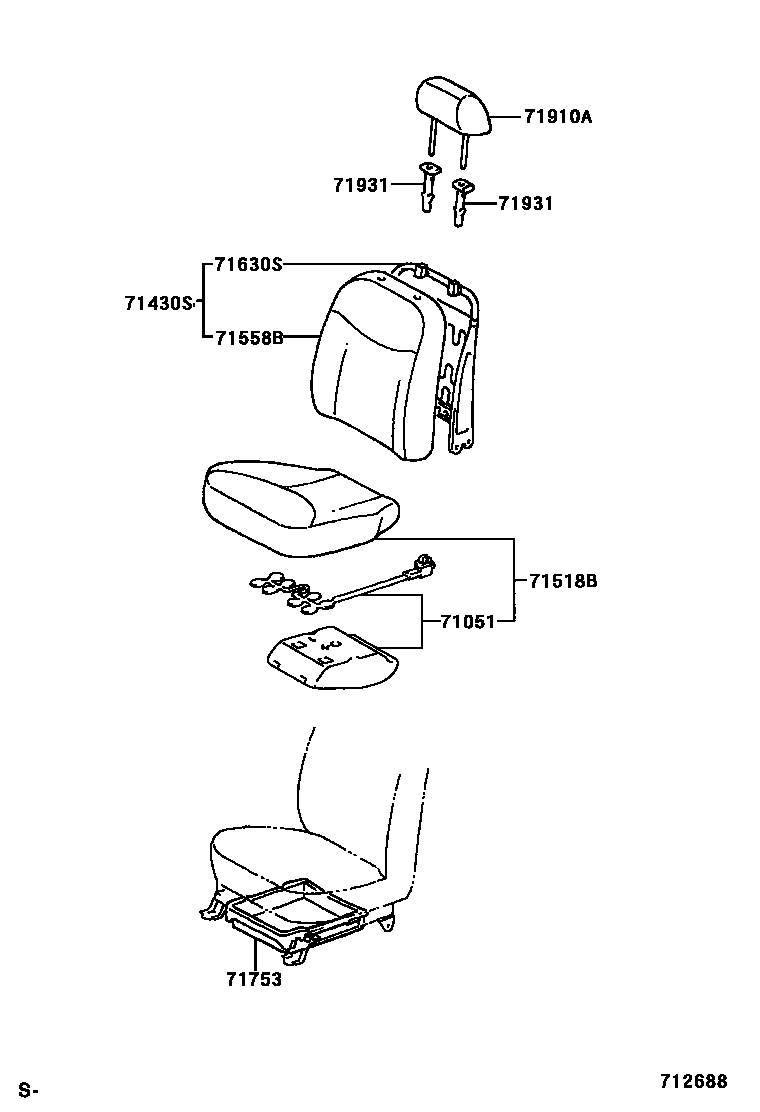

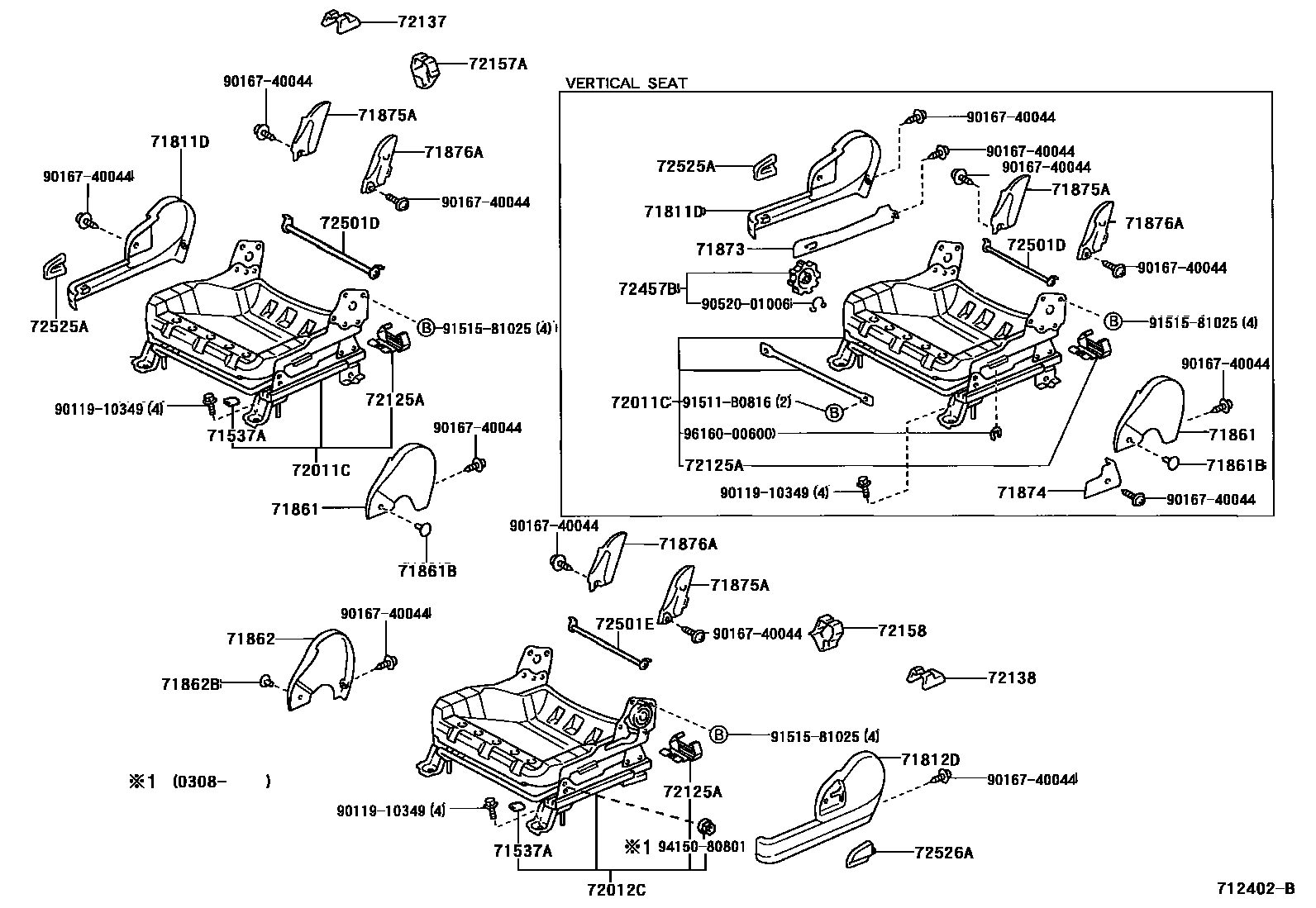

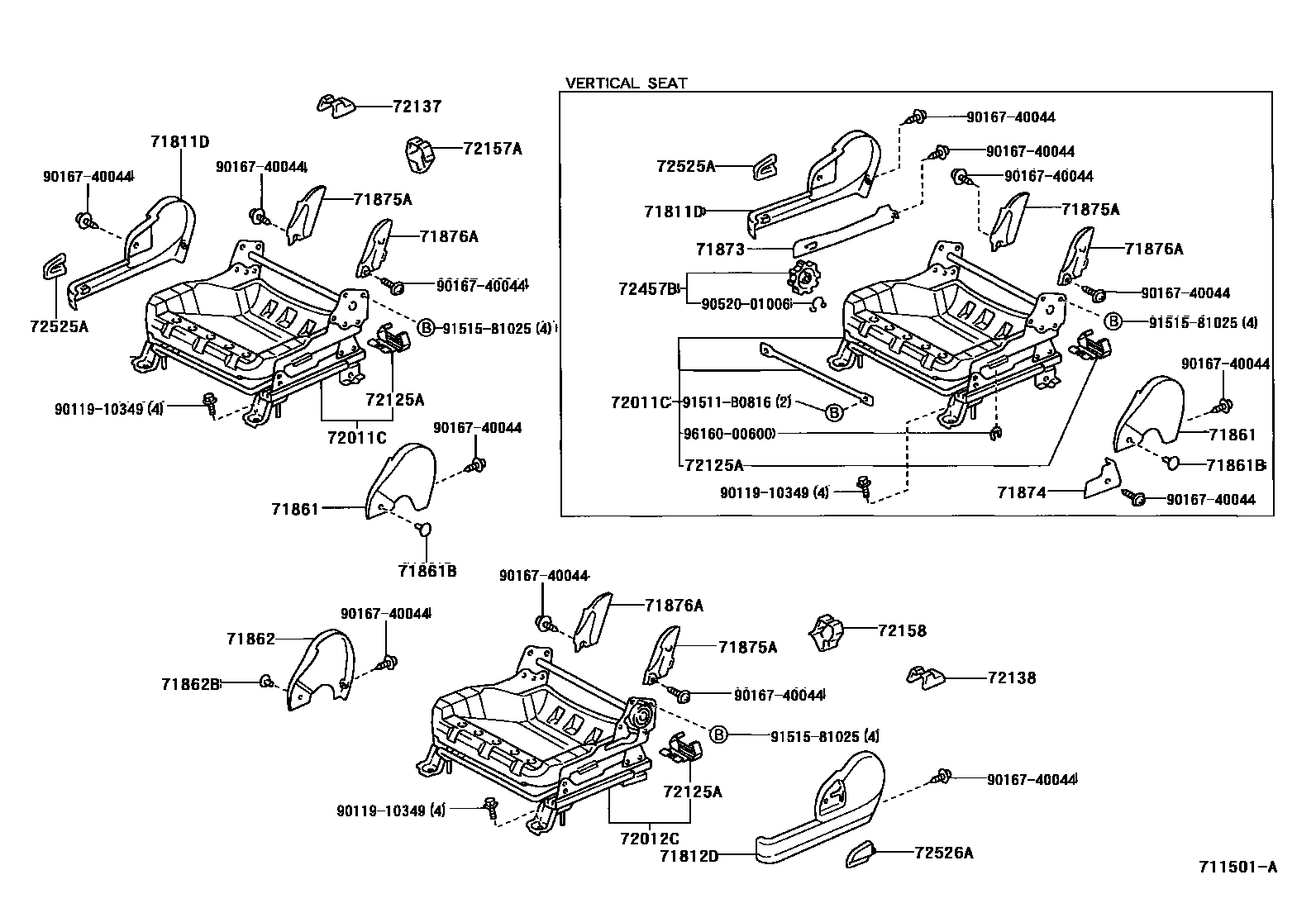

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101
Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 6 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71051 | Front right seat cushion sensor pad sub-assembly | 71051-52020 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-52010 · 71630-52020 · 71630-52240 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-52010 · 71630-52020 · 71630-52240 |
| 71753 | Front seat bottom bracket | 71753-52010 |
| 72011C | Front right seat adjuster sub-assembly | 72010-52090 · 72010-52091 · 72010-52110 · 72010-52111 · 72010-52150 · 72010-52160 · 72010-52161 · 72010-52271 |
| 72012C | Front left seat adjuster sub-assembly | 72020-52110 · 72020-52111 · 72020-52120 · 72020-52130 · 72020-52131 · 72020-52231 |
| 72125A | Rear seat upper slide rail cover | 72125-28030 |
| 72137 | Right seat outer slide rail cover | 72137-52010 |
| 72138 | Left seat outer slide rail cover | 72137-52010 |
| 72157A | Right seat inner slide rail bracket cover | 72157-52010 |
| 72158 | Left seat inner slide rail bracket cover | 72158-52010 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72345-47010 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72345-47010 |
