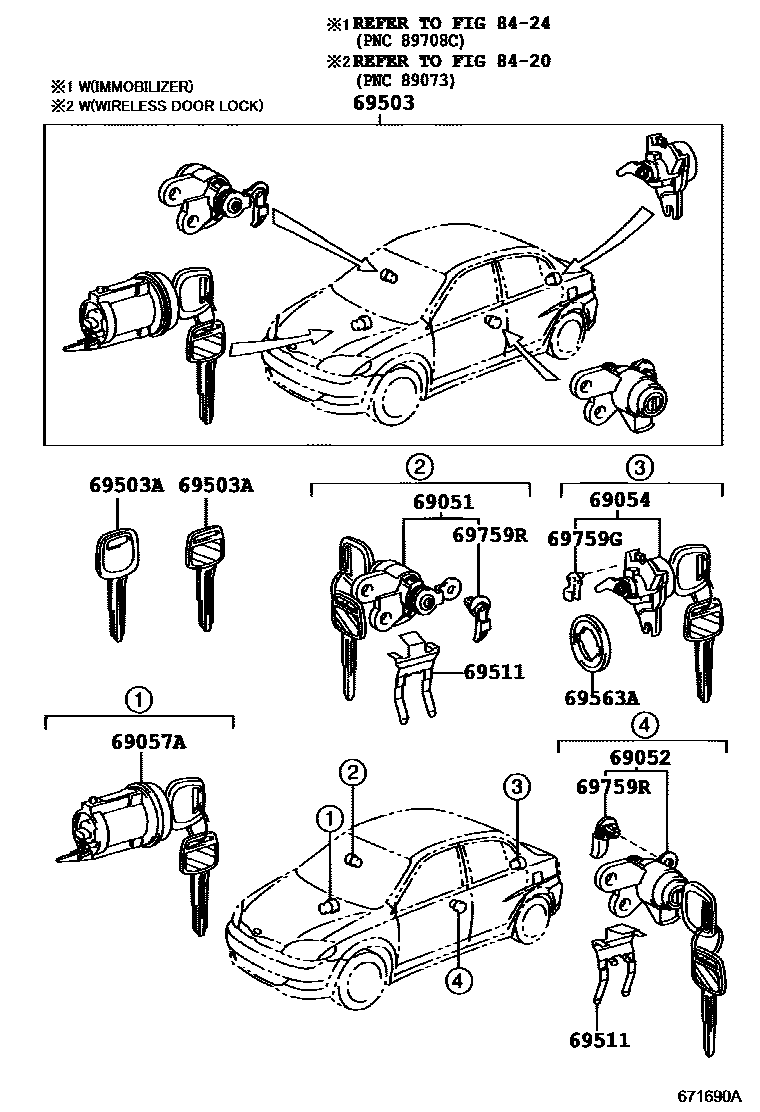

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-52030 · 69051-52040 · 69051-52210 |
| 69052 | Left door lock cylinder and key assembly | 69052-52030 · 69052-52040 · 69052-52260 |
| 69054 | Rear door lock cylinder and key assembly | 69055-52080 · 69055-52090 · 69055-52100 · 69055-52250 · 69055-52260 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-20480 · 69057-52030 |
| 69503 | Door lock cylinder components | 69005-52180 · 69005-52560 |
| 69503A | external tooth key | 90999-00149 · 90999-00163 · 90999-00186 · 90999-00199 |
| 69511 | Front door lock cylinder fixing parts | 69511-16030 |
| 69563A | Trunk door lock cylinder lining | 69563-10020 · 69563-52030 |
| 69759G | Trunk door lock core buckle | 69759-20080 |
| 69759R | Front door lock cylinder buckle | 69759-32090 · 69759-32100 |
