Toyota YARIS 后门锁和后门把手 — Figure 6706

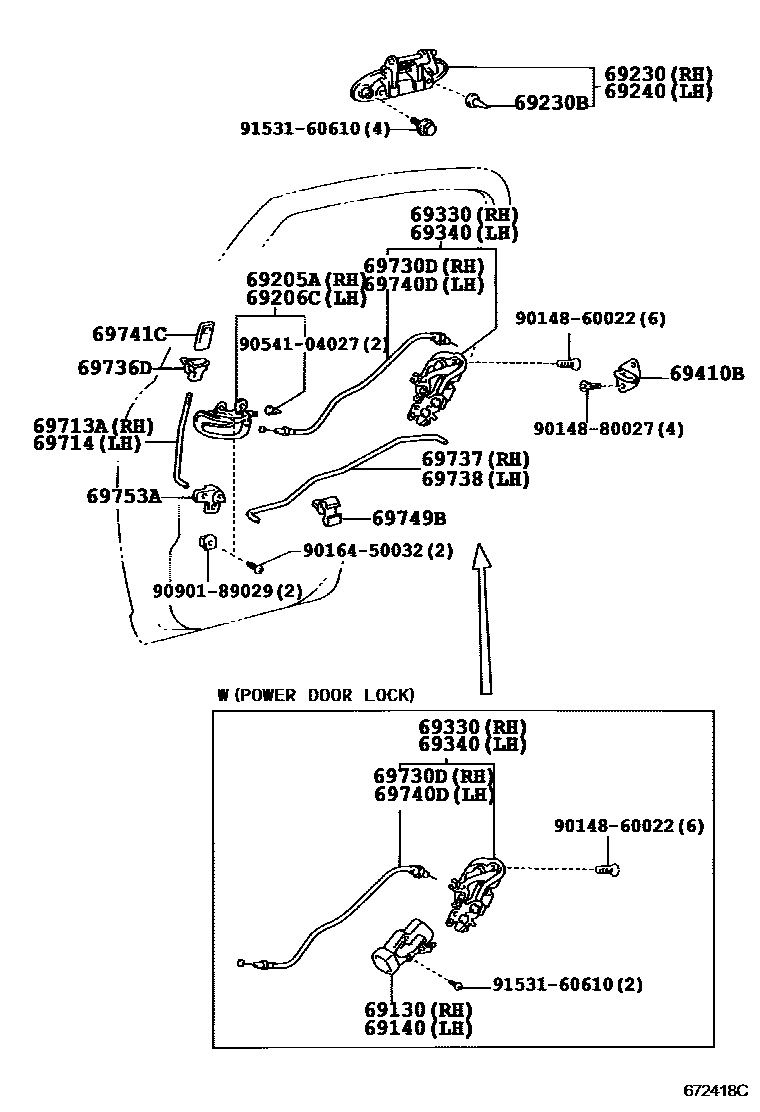

Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69130 | Right rear door lock actuator assembly | 69130-52010 |
| 69140 | Left rear door lock actuator assembly | 69140-52010 |
| 69230 | Right rear door outer handle assembly | 69230-52010 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-04018 |
| 69240 | Left rear door outer handle assembly | 69240-52010 |
| 69330 | Right rear door door lock assembly | 69330-52010 · 69330-52030 · 69330-52150 |
| 69340 | Left rear door lock assembly | 69340-52010 · 69340-52030 · 69340-52160 |
| 69410B | Rear door lock plate assembly | 69410-47010 |
| 69713A | Right rear door lock remote control lever | 69715-52010 |
| 69714 | Left rear door lock remote control lever | 69716-52010 |
| 69730D | Right rear door lock remote control cable assembly | 69730-52010 |
| 69736D | Rear door locking link guide block | 69736-12130 |
| 69737 | Right rear door inner locking link | 69737-52010 |
| 69738 | Left rear door inner locking link | 69738-52010 |
| 69740D | Left rear door lock remote control cable assembly | 69730-52010 |
| 69749B | Rear door lock link clamp | 69749-12030 · 69749-32040 |
| 69753A | Door lock control right angle lever | 69753-10010 |
