Toyota YARIS 前门板和前门玻璃 — Figure 6701

Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 4 images and 35 PNC and OE references.

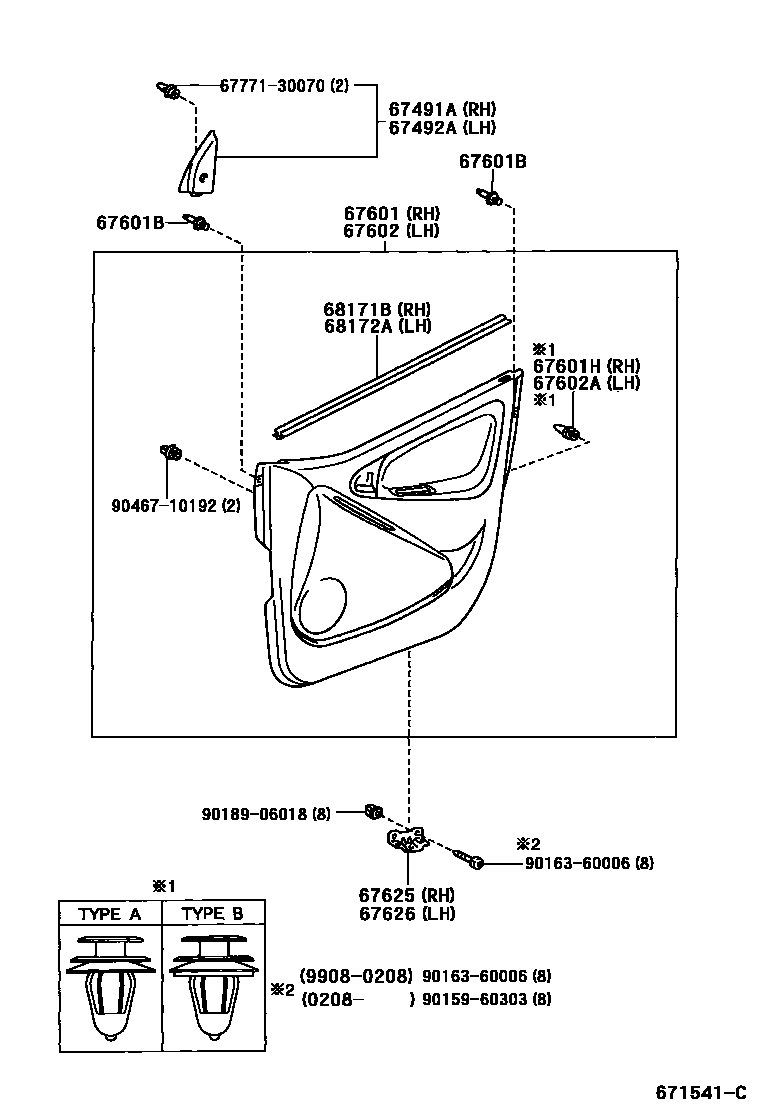

Toyota YARIS 前门板和前门玻璃 EPC diagram — 671541C
前门板和前门玻璃 — 671541C (199908 – 999999)

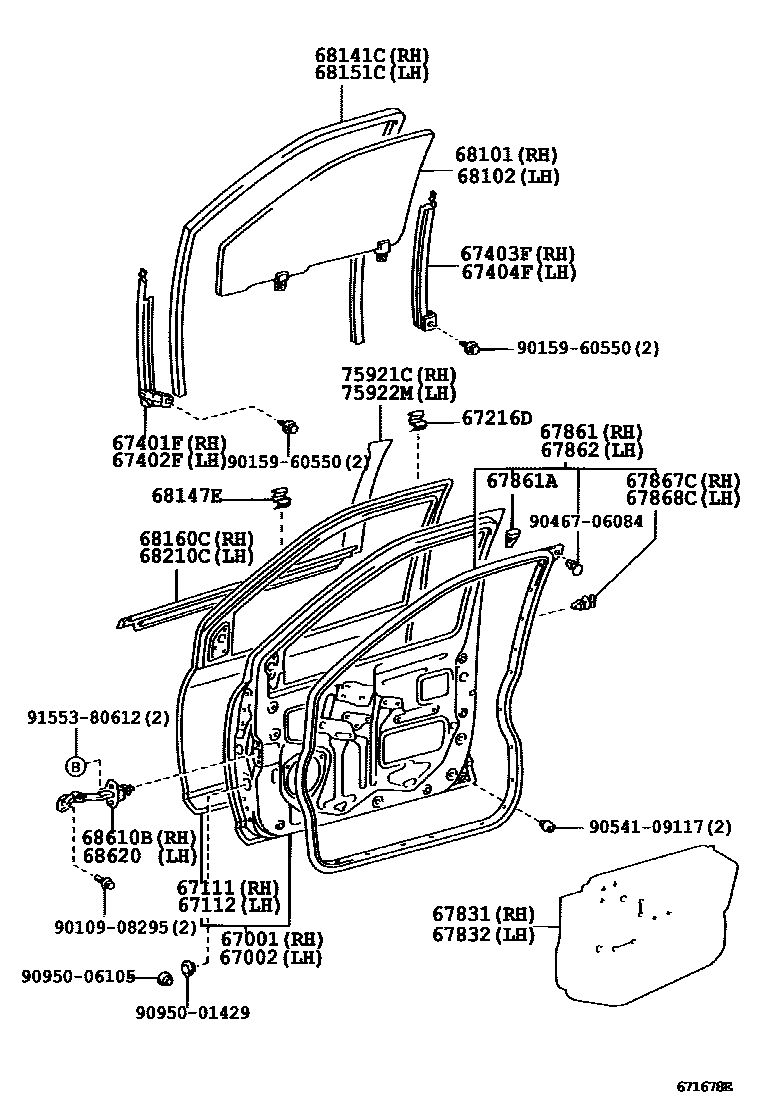

Toyota YARIS 前门板和前门玻璃 EPC diagram — 671678E
前门板和前门玻璃 — 671678E (199908 – 999999)
Toyota YARIS 前门板和前门玻璃 EPC diagram — 671713
前门板和前门玻璃 — 671713 (199908 – 200208)
Toyota YARIS 前门板和前门玻璃 EPC diagram — 672784
前门板和前门玻璃 — 672784 (200208 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-52010 · 67001-52011 · 67001-52150
67002Left front door panel sub-assembly67002-52010 · 67002-52011 · 67002-52160
67111Outer right front door panel67111-52010 · 67111-52060
67112Outer left front door panel67112-52010 · 67112-52060
67216DNo. 2 front door glass upper stop67216-52010
67401FRight front door front lower door frame sub-assembly67401-52010 · 67401-52011
67402FLeft front door front lower door frame sub-assembly67402-52010 · 67402-52011
67403FRight front door rear lower door frame sub-assembly67403-52010
67404FLeft front door rear lower door frame sub-assembly67404-52010
67491ARight front door lower door frame bracket decorative strip67491-52010 · 67491-52020
67492ALeft front door lower door frame bracket decorative strip67492-52010 · 67492-52020
67601HRight door trim panel fixing67771-12050 · 67771-28020
67602ALeft door trim panel fixing67771-12050 · 67771-28020
67625Right front door trim panel bracket67625-52010
67626Left front door trim panel bracket67625-52010
67831Right front door access hole cover67831-52010
67832Left front door access hole cover67831-52010
67861Right front door seal67861-52010
67861AFixing piece (for front door sealing strip)67867-52010 · 67867-52020 · 67867-52030
67862Left front door seal67862-52010
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
68101Right front door glass sub-assembly68110-52010 · 68110-52020
68102Left front door glass sub-assembly68120-52010 · 68120-52020
68141CRight front door glass lift channel68141-52010 · 68141-52011
68147EFront door glass upper stopper68147-52010
68151CLeft front door glass lift channel68151-52010 · 68151-52011
68160CRight front door glass outer sealing strip assembly68160-52010
68171BRight front door glass inner sealing strip68171-52080 · 68171-52081
68172ALeft front door glass inner sealing strip68172-52080 · 68172-52081
68210CLeft front door glass outer sealing strip assembly68210-52010
68610BRight front door opening limiter assembly68610-52010
68620Left front door opening limiter assembly68620-52010
75921CNo. 1 right side light-shielding film75921-52020 · 75921-52021
75922MNo. 1 left shading film75922-52020 · 75922-52021
