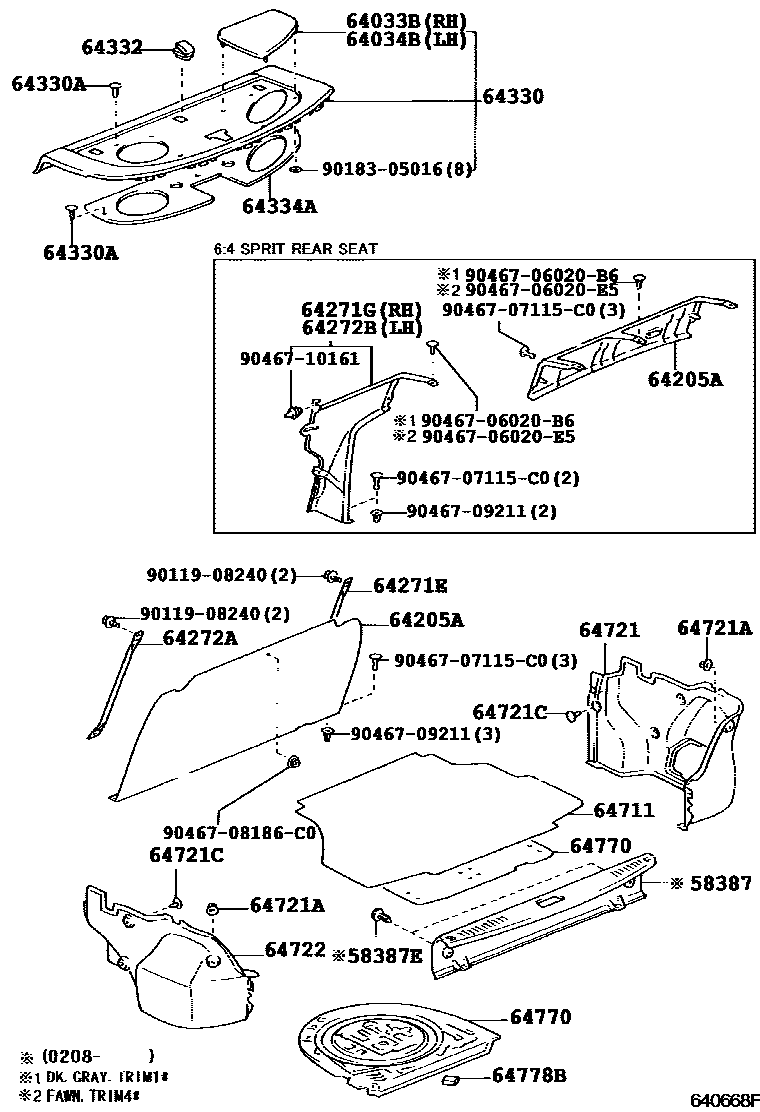

Toyota YARIS 杂物箱板和行李箱垫 — Figure 6403
Toyota YARIS EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64205A | Cabin partition cover sub-assembly | 64275-52010 · 64275-52011 |
| 64271E | compartment partition | 64241-52010 |
| 64272A | Left compartment partition | 64242-52010 |
| 64334A | Glove box decorative mat | 64334-52010 · 64334-52020 |
| 64721A | Clip (for trunk interior decoration cover) | 90467-06155 |
| 64770 | Spare tire cover assembly | 64770-52030 · 64770-52040 · 64771-52070 |
| 64778B | Spare tire protection device | 64778-52020 |
