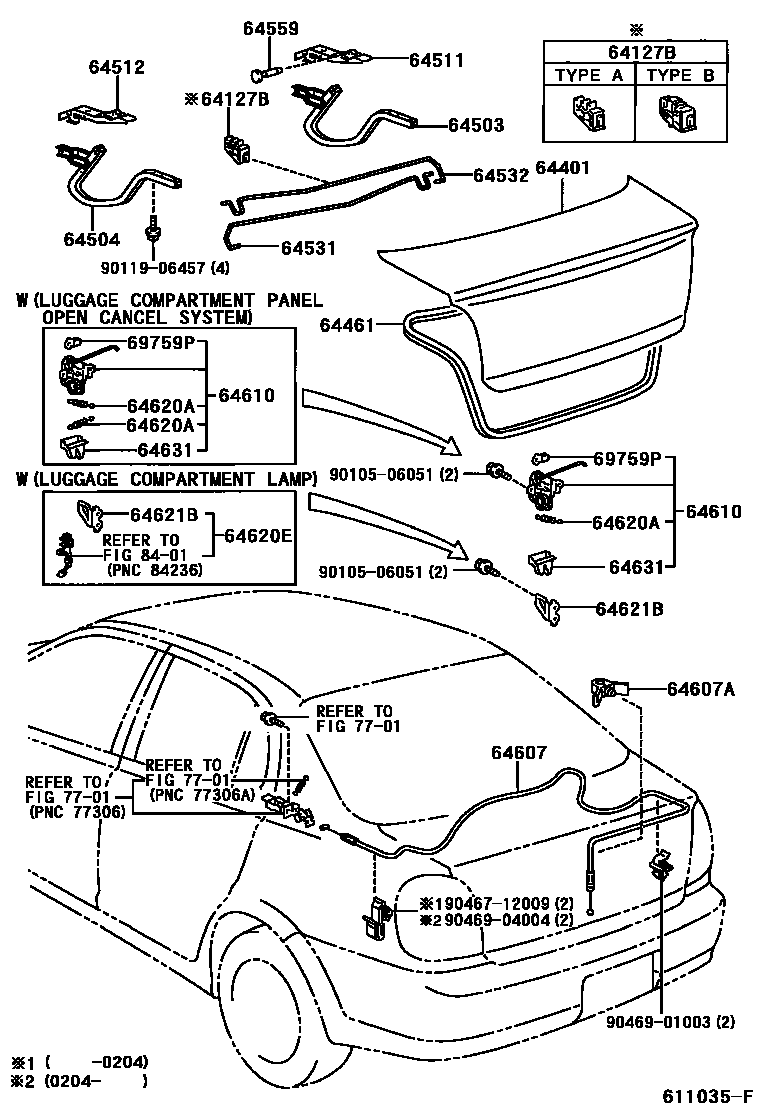

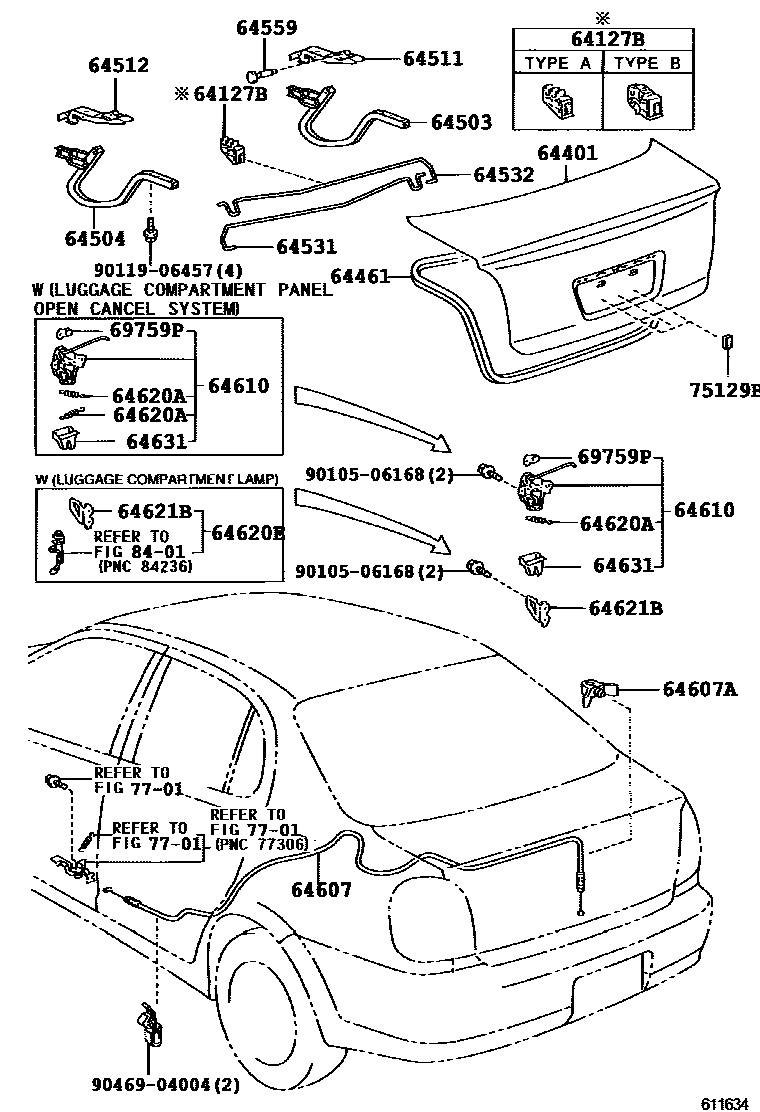

Toyota YARIS 行李箱门和行李箱锁 — Figure 6105
Toyota YARIS EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-16070 · 64127-20120 |
| 64401 | Trunk door panel sub-assembly | 64401-52010 · 64401-52020 · 64401-52040 · 64401-52041 · 64401-52050 · 64401-52051 |
| 64461 | Trunk door seal | 64461-52010 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-16040 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-16040 |
| 64511 | Trunk door right hinge bracket | 64511-52010 |
| 64512 | Trunk door left hinge bracket | 64511-52010 |
| 64531 | Trunk door right hinge torsion bar | 64531-52010 · 64531-52020 · 64531-52030 · 64531-52040 |
| 64532 | Trunk door left hinge torsion bar | 64532-52010 · 64532-52020 · 64532-52030 · 64532-52040 |
| 64559 | Trunk door hinge pin | 64559-52010 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-52020 |
| 64607A | Clip No. 1 (for trunk door lock control cable) | 90959-01369 |
| 64610 | Trunk door lock assembly | 64610-52010 · 64610-52020 · 64610-52050 · 64610-52080 |
| 64620A | Tension spring (for trunk door lock) | 90506-05002 · 90506-06008 · 90905-06021 |
| 64620E | Trunk door lock assembly | 64620-47010 |
| 64621B | Trunk door latch | 64621-16020 |
| 64631 | Trunk door lock protector | 64631-12050 · 64631-16020 |
| 69759P | Door lock control link buckle | 69759-20040 · 69759-20050 |
| 75129B | rear license plate cushion | 75129-13020 |
