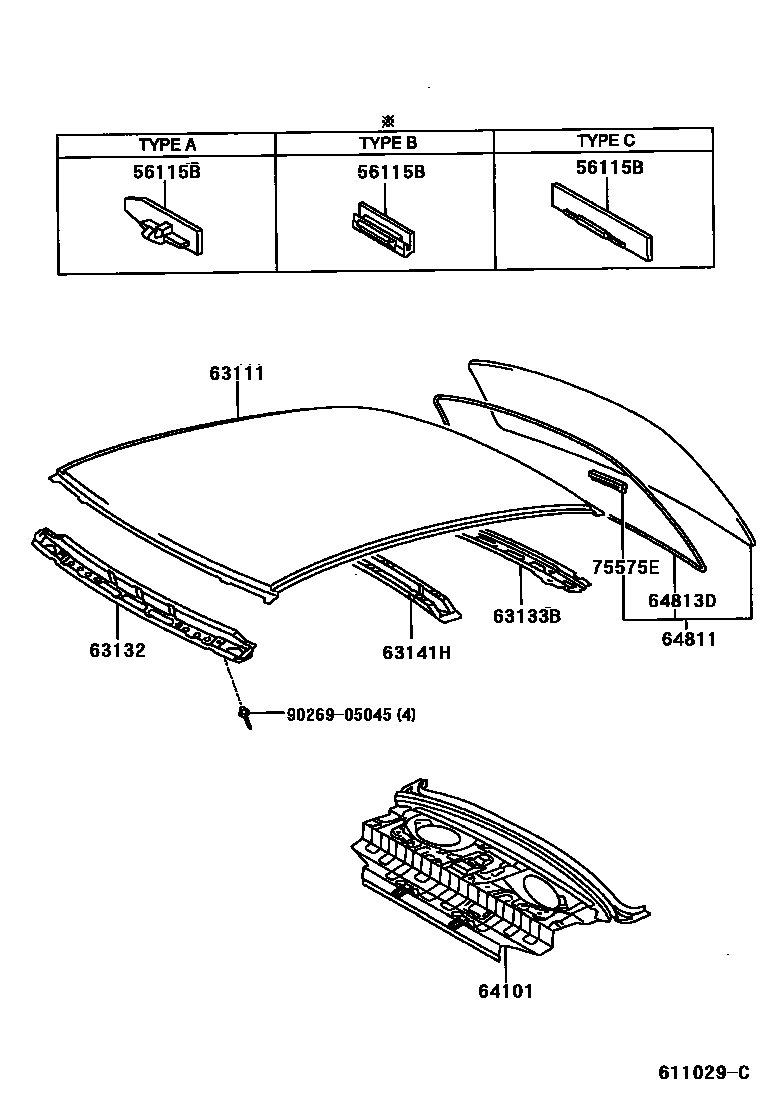

Toyota YARIS 天窗板和背窗玻璃 — Figure 6104
Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 · 56115-33040 · 56116-22050 |
| 63111 | roof panel | 63111-52130 |
| 63132 | Windshield inner roof panel | 63132-52010 · 63132-52011 |
| 63133B | back window frame | 63133-52010 |
| 63141H | Center roof panel reinforcement | 63141-52010 |
| 64101 | Upper back panel sub-assembly | 64101-52010 · 64101-52020 · 64101-52030 · 64101-52040 · 64101-52060 · 64101-52070 |
| 64811 | back window glass | 64801-52010 · 64801-52020 · 64801-52040 |
| 64813D | Back window glass adhesive seal | 64813-52030 |
| 75575E | Lower protective strip on the outside of the rear window | 75575-52010 |
