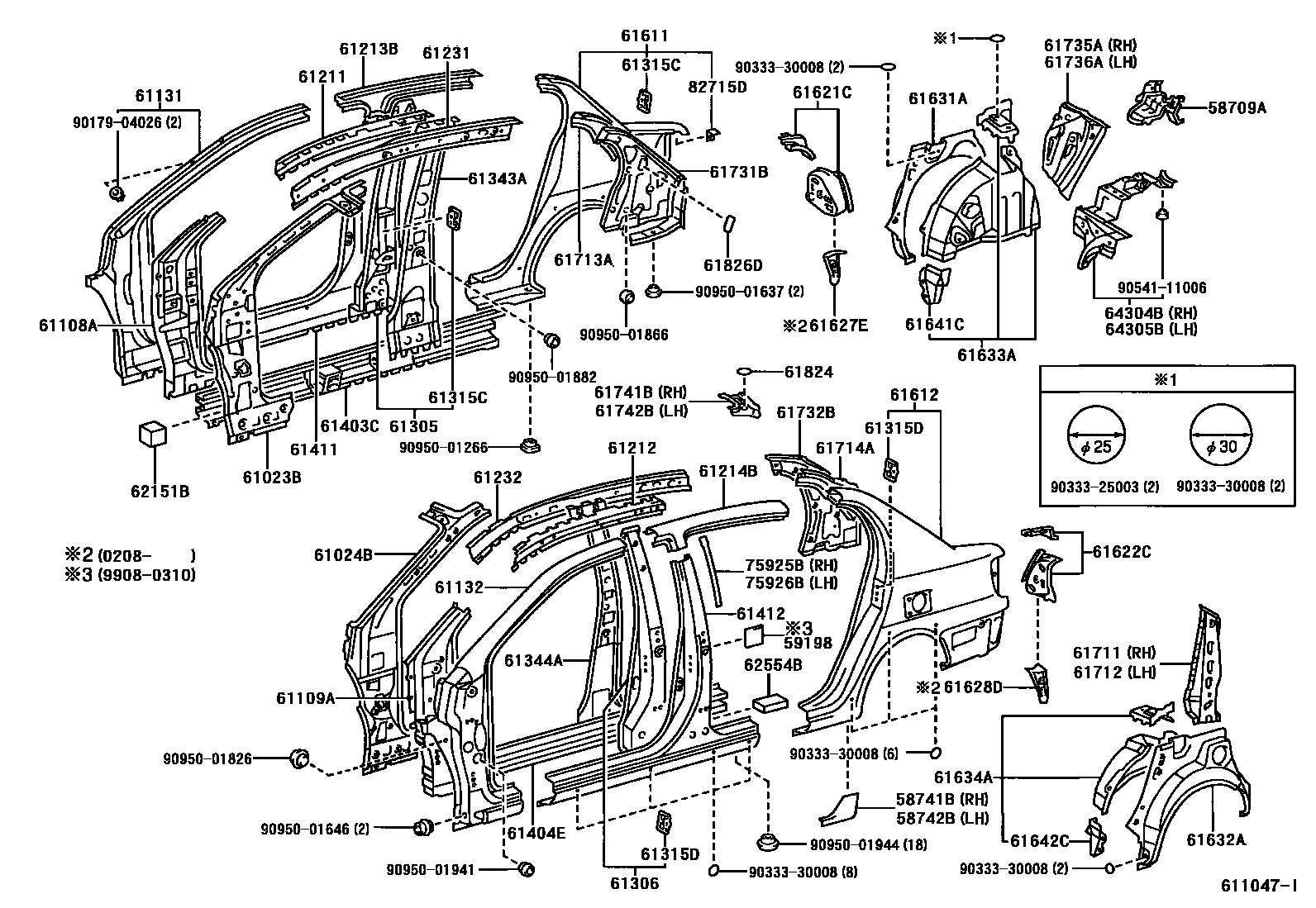

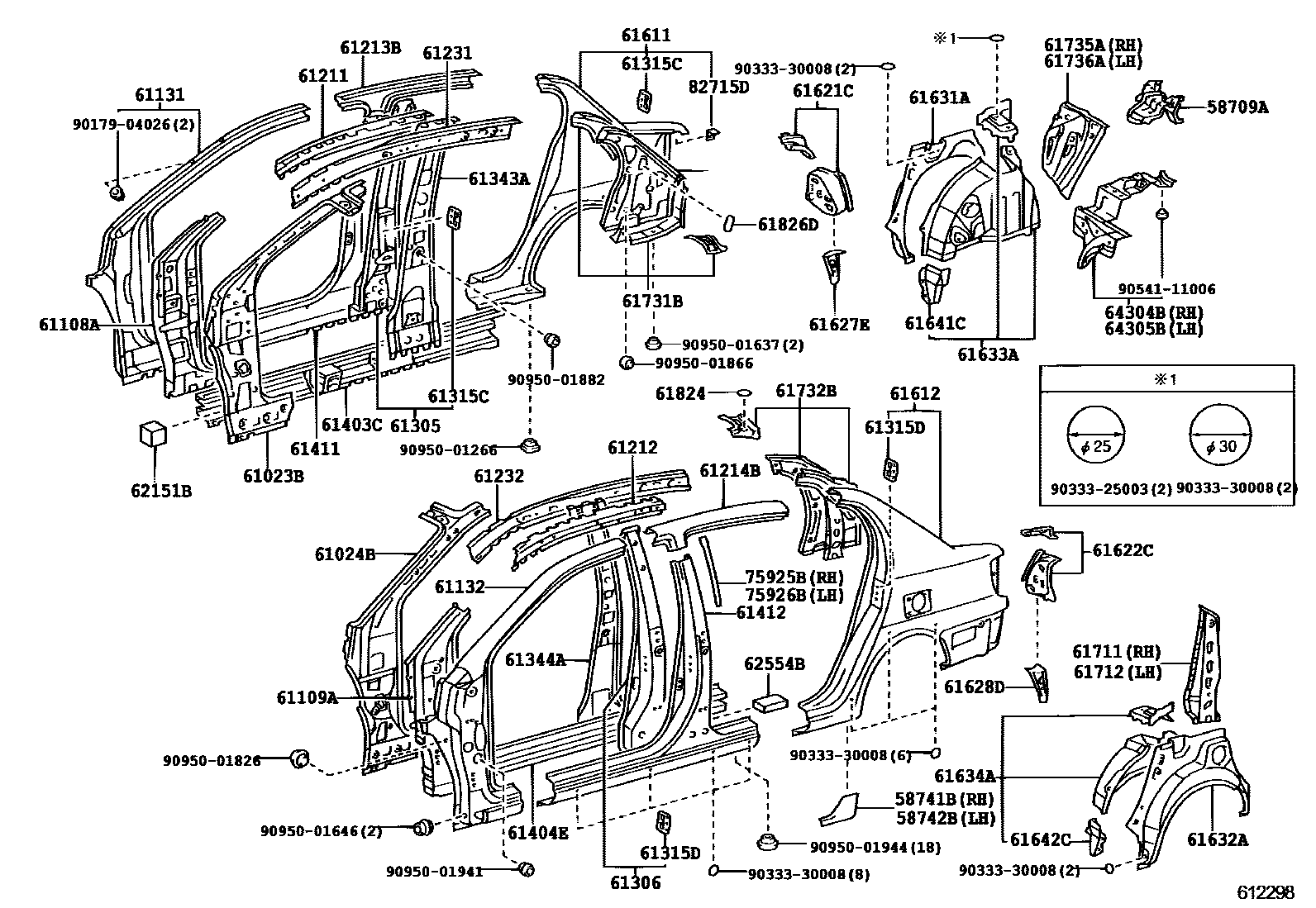

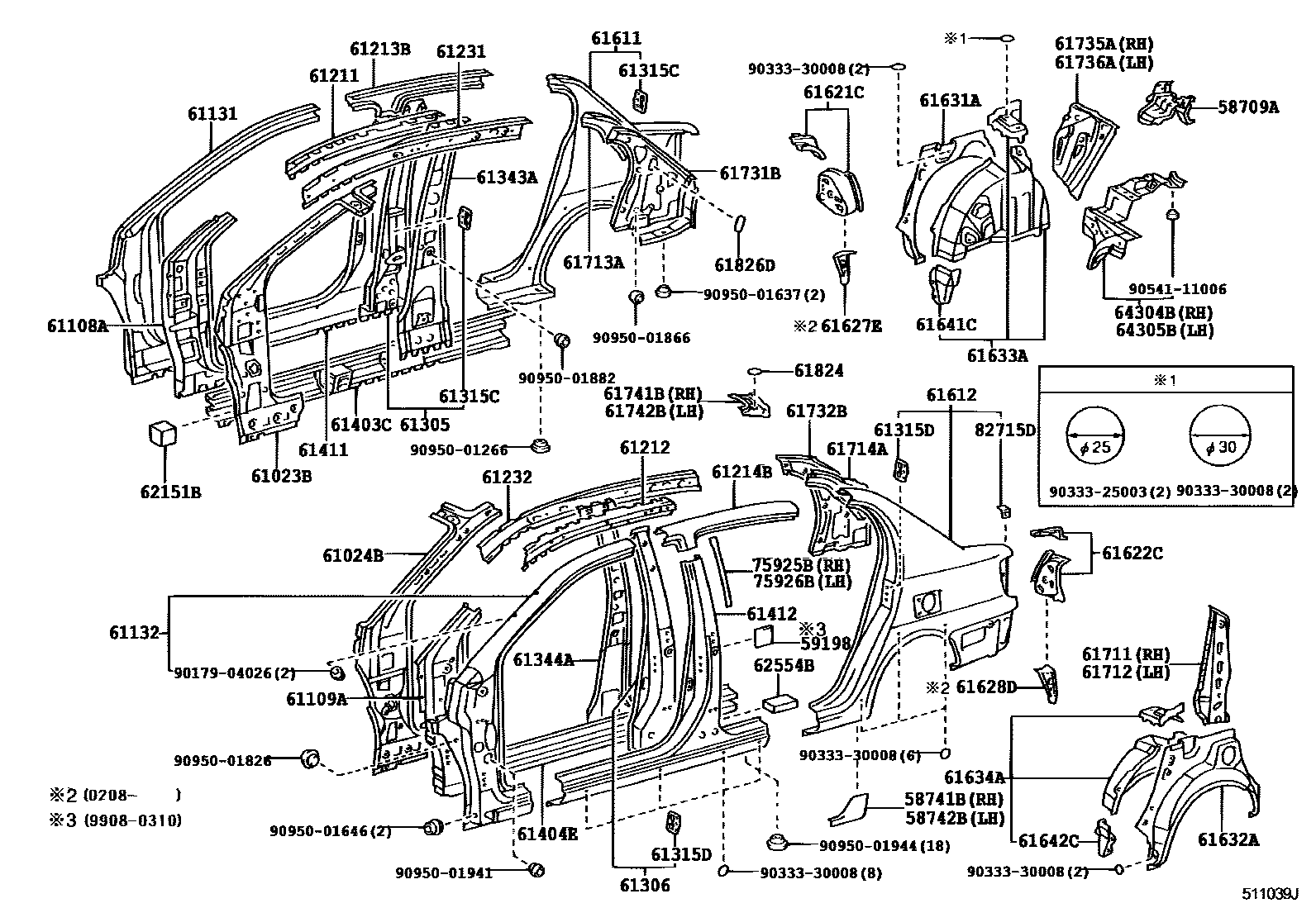

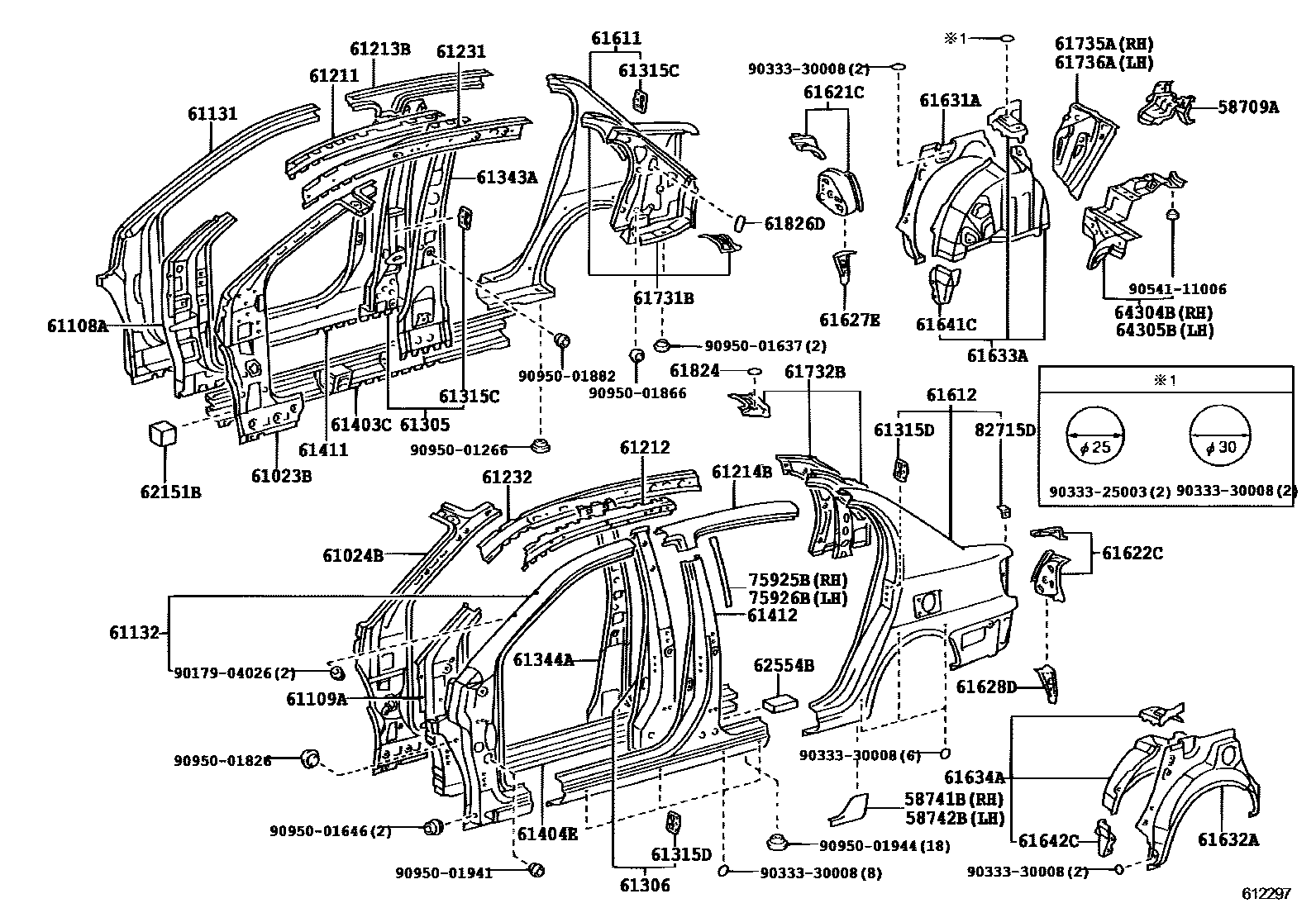

Toyota YARIS 侧梁 — Figure 6101
Toyota YARIS EPC diagram 6101, 侧梁, with 4 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58709A | Jack bracket sub-assembly | 58709-52010 |
| 58741B | Right side enclosure protection panel | 58741-52010 · 58741-52011 · 58741-52012 |
| 58742B | Left side enclosure protection panel | 58742-52010 · 58742-52011 · 58742-52012 |
| 59198 | Silencer panel seal | 59198-12010 |
| 61023B | Right body inner front pillar sub-assembly | 61023-52010 · 61023-52011 |
| 61024B | Left body inner front pillar sub-assembly | 61024-52010 · 61024-52011 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-52010 · 61108-52011 · 61108-52090 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-52010 · 61109-52011 · 61109-52090 |
| 61131 | Right body outer front upper pillar | 61131-52040 · 61131-52050 |
| 61132 | Left body outer front upper pillar | 61132-52030 · 61132-52040 |
| 61211 | Roof right outer longitudinal beam | 61211-52040 · 61211-52041 · 61211-52042 |
| 61212 | Roof left outer longitudinal beam | 61212-52040 · 61212-52041 · 61212-52042 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-52030 · 61213-52031 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-52030 · 61214-52031 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-52090 · 61231-52091 |
| 61232 | Roof left inner longitudinal beam | 61232-52090 · 61232-52091 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-52011 · 61305-52080 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-52011 · 61306-52080 |
| 61315C | Right door latch fastener | 61315-22020 |
| 61315D | Left door latch fastener | 61315-22020 |
| 61343A | Right body inner center pillar | 61343-52900 · 61343-52903 |
| 61344A | Left body inner center pillar | 61344-52900 · 61344-52903 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-52010 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-52010 |
| 61411 | Right door outer sill panel | 61411-52070 · 61411-52080 |
| 61412 | Left door outer sill panel | 61412-52070 · 61412-52080 |
| 61611 | Right side hoarding | 61601-52070 · 61601-52200 · 61601-52201 · 61601-52220 · 61601-52221 |
| 61612 | left side panel | 61602-52080 · 61602-52220 · 61602-52221 · 61602-52240 · 61602-52241 |
| 61621C | Luggage right opening slot | 61621-52901 · 61621-52903 |
| 61622C | Luggage trunk left opening slot | 61622-52900 · 61622-52902 |
| 61627E | Right rear side panel lower extension | 61627-52020 |
| 61628D | Left rear side panel lower extension | 61628-52020 |
| 61631A | Right wheel cover outer panel | 61631-52010 |
| 61632A | Left side wheel cover outer panel | 61632-52010 |
| 61633A | Right wheel housing lining panel | 61607-52904 · 61607-52907 · 61607-52908 · 61607-52909 · 61607-52910 |
| 61634A | Left side wheel housing lining panel | 61608-52907 · 61608-52908 · 61608-52909 · 61608-52910 |
| 61641C | Right front side wheel housing corner panel | 61641-52010 |
| 61642C | Left front side wheel housing corner panel | 61642-52010 |
| 61711 | Roof right side outer panel | 61711-52060 |
| 61712 | Roof left outer panel | 61712-52060 |
| 61713A | Roof right outer extension | 61713-52020 |
| 61714A | Roof left outer extension | 61714-52020 |
| 61731B | Roof right inner panel | 61705-52917 · 61731-52050 · 61731-52160 |
| 61732B | Roof left inner panel | 61706-52917 · 61732-52050 · 61732-52160 |
| 61735A | Right rear roof inner panel | 61735-52010 |
| 61736A | Left rear roof inner panel | 61736-52010 |
| 61741B | Rear window opening right reinforcement | 61741-52010 |
| 61742B | Rear window opening left reinforcement | 61742-52010 |
| 61824 | Noise Control Panel No. 1 | 61824-52010 |
| 61826D | Noise Control Panel No. 3 | 61826-47010 |
| 62151B | Front cowl side silencer pads | 62151-12130 · 62151-52010 |
| 62554B | No. 4 column pad | 62554-12130 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-52010 · 64304-52020 · 64304-52050 · 64304-52060 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-52010 · 64305-52020 · 64305-52050 · 64305-52060 |
| 75925B | No. 3 right side light-blocking film | 75925-52010 |
| 75926B | No. 3 left shading film | 75926-52010 |
| 82715D | Wire harness clamp bracket | 82715-33250 |
